01536XT3H254T WEG AC Motors
Part#:01536XT3H254T
Manufacturer:WEG
Alt. Part#:7909492060611
Product Lifecycle:Active
Get a quick Quote!

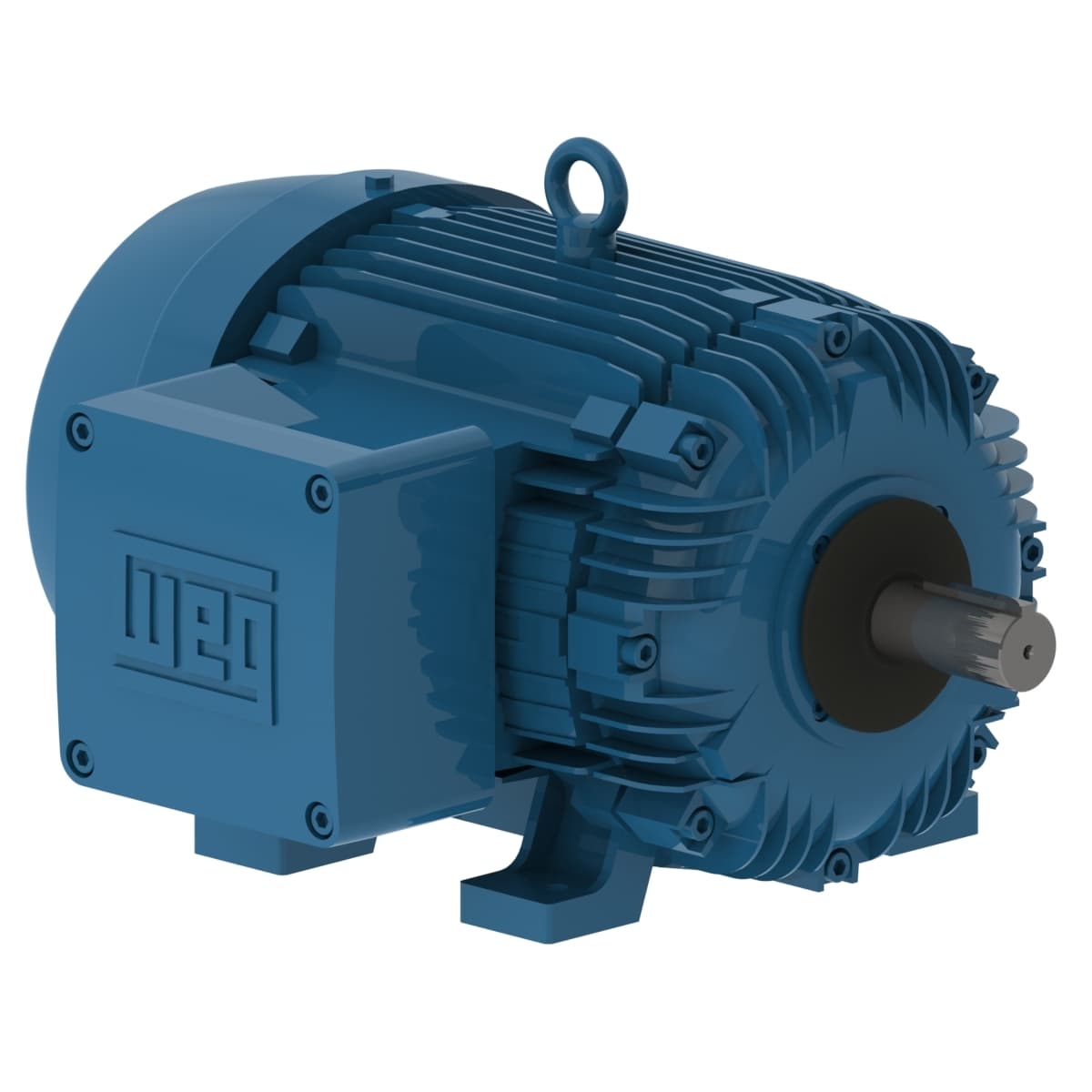

W21 Explosion-proof Motor NEMA Premium Efficiency 15 HP 2P 254T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01536XT3H254T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed3540 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated current 13.9 A
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Output rating 15 HP
- Frequency 60 Hz
- Service factor 1.15
- Mounting F-1
- Synchronous speed 3600 rpm
- LRC 6.8x(Code G)
- Starting Method Direct On Line
- Approx. weight³ 324 lb
- Slip 1.67 %
- Design B
- Enclosure IC411 - TEFC
- Voltage 575 V
- L. R. Amperes 94.7 A
- No load current 4.80 A
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated speed 3540 rpm
- Rated torque 22.3 ft.lb
- Ambient temperature -20°C to +40°C
- Noise level² 75.0 dB(A)
- Output 15 HP (11 kW)
- Locked rotor time 55s (cold) 31s (hot)
- Moment of inertia (J) 1.19 sq.ft.lb
- Number of poles 2
- Frame 254T
- Insulation Class F
- Degree of Protection IP55
- Terminal box¹ Left position
- Number of Poles 2
- Breakdown torque 270 %
- Rotation¹ Both (CW and CCW)
- Rated voltage 575 V
- Temperature rise 80 K
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01536XT3H254T Specs
1-year warranty
