01536ET3H254TF2-W22 WEG AC Motors
Part#:01536ET3H254TF2-W22
Manufacturer:WEG
Alt. Part#:7891327451322
Product Lifecycle:Active
Get a quick Quote!

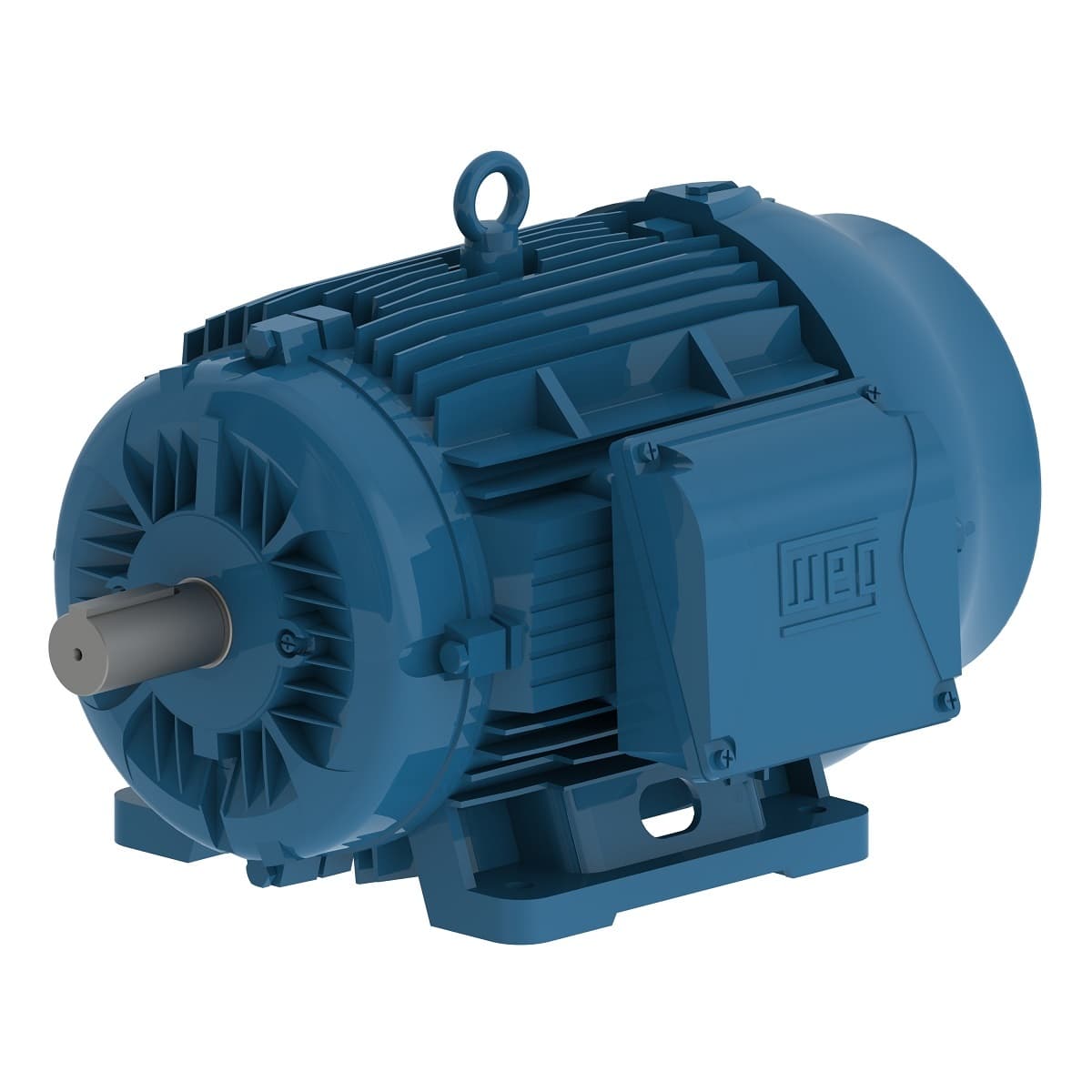

W22 NEMA Premium Efficiency 15 HP 2P 254T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01536ET3H254TF2-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Frequency 60 Hz
- L. R. Amperes 92.2 A
- Slip 1.94 %
- Breakdown torque 270 %
- Degree of Protection IP55
- Output rating 15 HP
- Rated torque 22.3 ft.lb
- Service factor 1.25
- Duty Cycle Cont.(S1)
- Flange Without
- LRC 6.7x(Code G)
- Ambient temperature -20°C to +40°C
- Moment of inertia (J) 1.26 sq.ft.lb
- Voltage 575 V
- Rated speed 3530 rpm
- Locked rotor time 45s (cold) 25s (hot)
- Noise level² 72.0 dB(A)
- Rated current 13.8 A
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Number of Poles 2
- Locked rotor torque 220 %
- Mounting F-2
- Standard NEMA MG-1
- Frame 254T
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Rated voltage 575 V
- Design B
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Right position
- Output 15 HP (11 kW)
- No load current 4.24 A
- Starting Method Direct On Line
- Approx. weight³ 249 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01536ET3H254TF2-W22 Specs
1-year warranty
