01536ET3EPM254/6Y-W2 WEG AC Motors
Part#:01536ET3EPM254/6Y-W2
Manufacturer:WEG
Alt. Part#:7909522388784
Product Lifecycle:Active
Get a quick Quote!

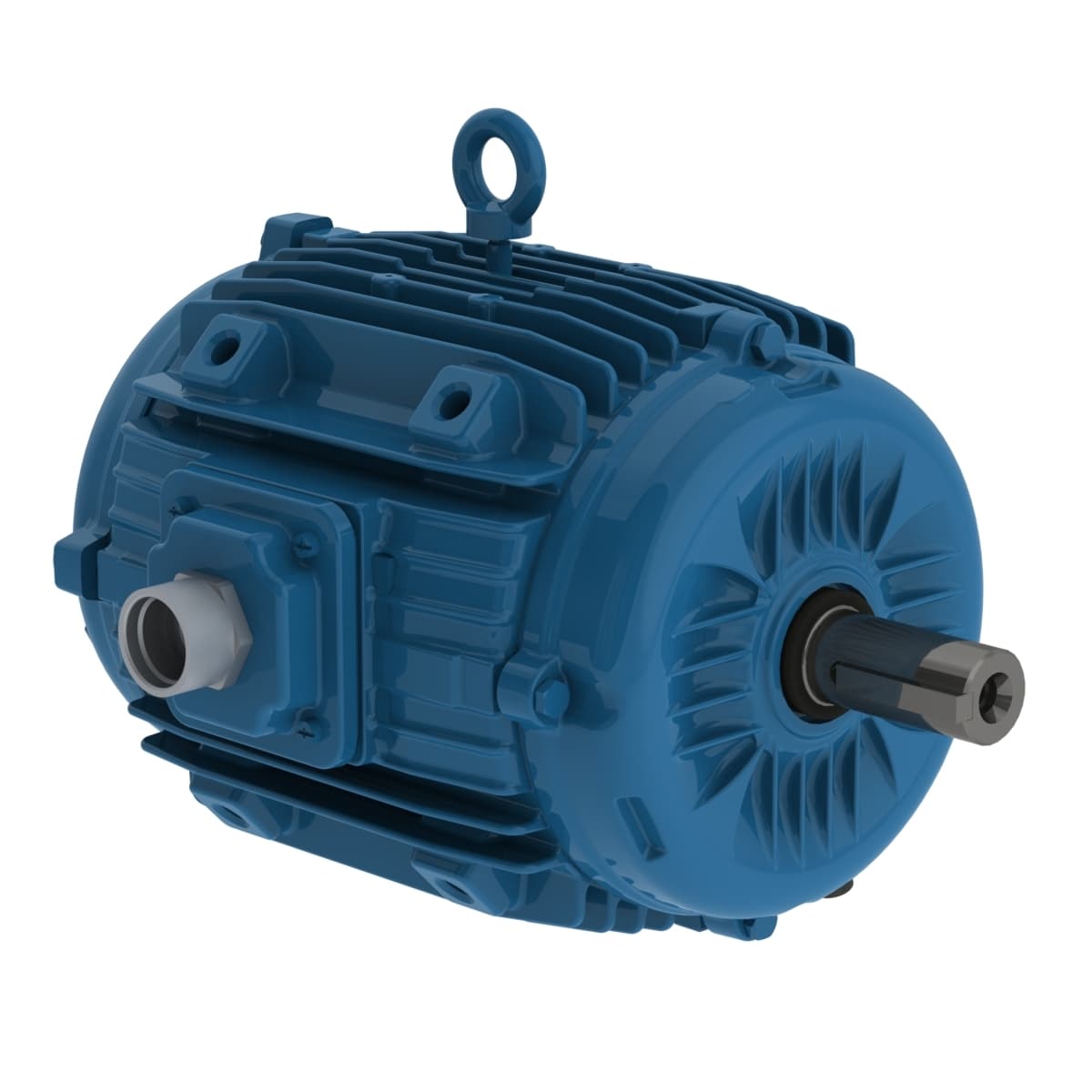

W22 NEMA Premium Efficiency 15 HP 2P 256TZ 3Ph 208-230/460//380 V 60//50 Hz IC418 - TEAO - Pad mounted
Check out the 01536ET3EPM254/6Y-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Rated speed 3530 rpm
- Rated current 38.1-34.5/17.2 A
- Insulation Class F
- Mounting F-1
- Number of poles 2
- Frequency 60 Hz
- No load current 10.3-12.0/6.00 A
- Starting Method Direct On Line
- Output rating 15 HP
- Rated voltage 208-230/460 V
- Locked rotor torque 220 %
- Enclosure IC418 - TEAO
- LRC 6.7x(Code G)
- Service factor 1.15
- Voltage 208-230/460//380 V
- Output 15 HP (11 kW)
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- L. R. Amperes 255-231/115 A
- Moment of inertia (J) 1.26 sq.ft.lb
- Approx. weight³ 595 lb
- Slip 1.94 %
- Locked rotor time 45s (cold) 25s (hot)
- Degree of Protection IP55
- Standard NEMA MG-1
- Number of Poles 2
- Breakdown torque 270 %
- Ambient temperature -20°C to +40°C
- Flange Without
- Frame 256TZ
- Rated torque 22.3 ft.lb
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Design B
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
