01536ET3H215T-W22 WEG AC Motors
Part#:01536ET3H215T-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

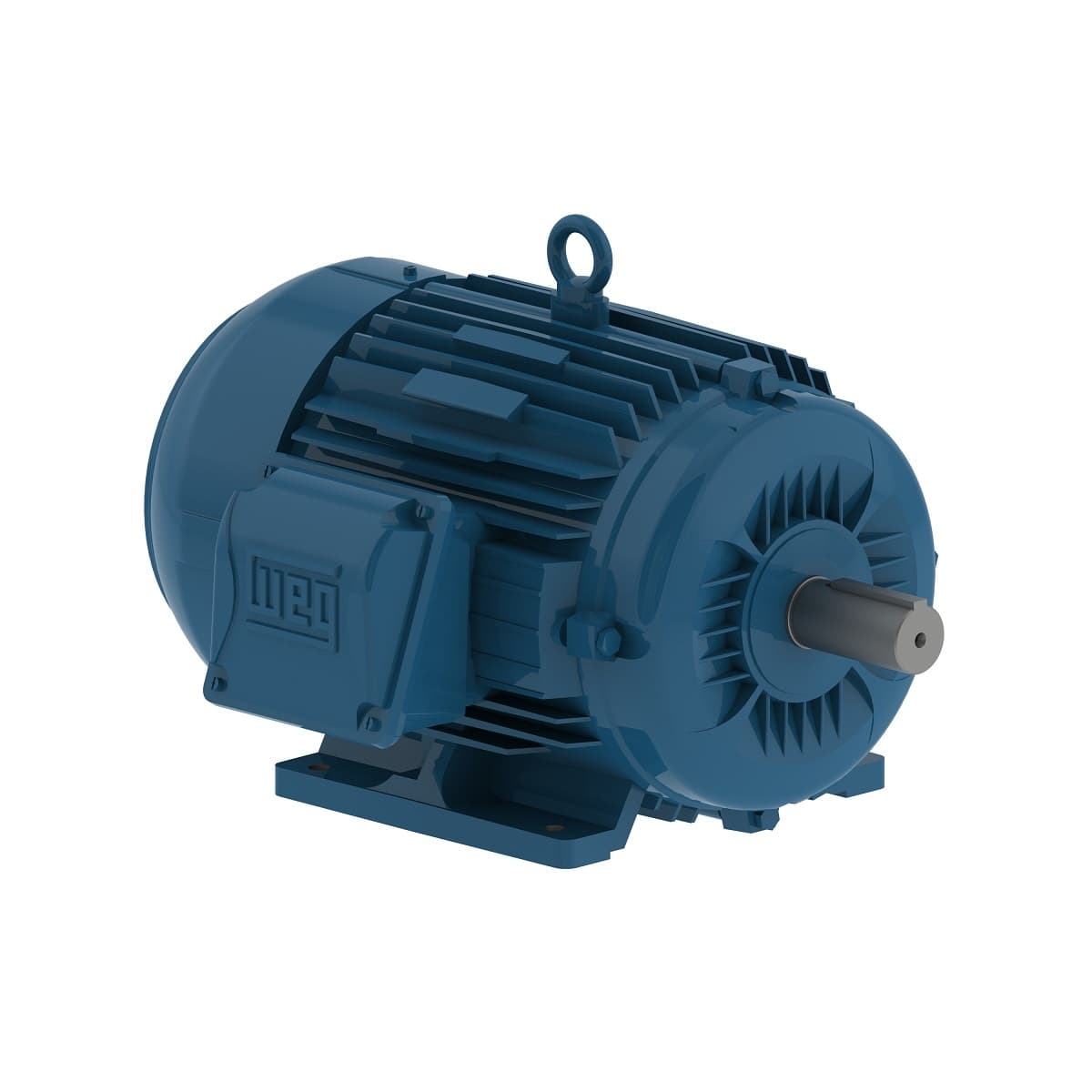

W22 NEMA Premium Efficiency 15 HP 2P 213/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01536ET3H215T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 213/5T
- Breakdown torque 280 %
- L. R. Amperes 107 A
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Rated voltage 575 V
- Insulation Class F
- Noise level² 68.0 dB(A)
- Flange Without
- Output 15 HP (11 kW)
- Moment of inertia (J) 0.6362 sq.ft.lb
- Degree of Protection IP55
- Rated speed 3520 rpm
- Design A
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Service factor 1.25
- Standard NEMA MG-1
- Slip 2.22 %
- Locked rotor time 21s (cold) 12s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 2
- LRC 7.9x(Code J)
- Number of Poles 2
- Rated torque 22.4 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 171 lb
- Temperature rise 80 K
- Mounting F-1
- Synchronous speed 3600 rpm
- Rated current 13.6 A
- Locked rotor torque 240 %
- Voltage 575 V
- No load current 4.64 A
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Output rating 15 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01536ET3H215T-W22 Specs
1-year warranty
