01518OT3V254TC-W40 WEG AC Motors
Part#:01518OT3V254TC-W40
Manufacturer:WEG
Alt. Part#:7909492247258
Product Lifecycle:Active
Get a quick Quote!

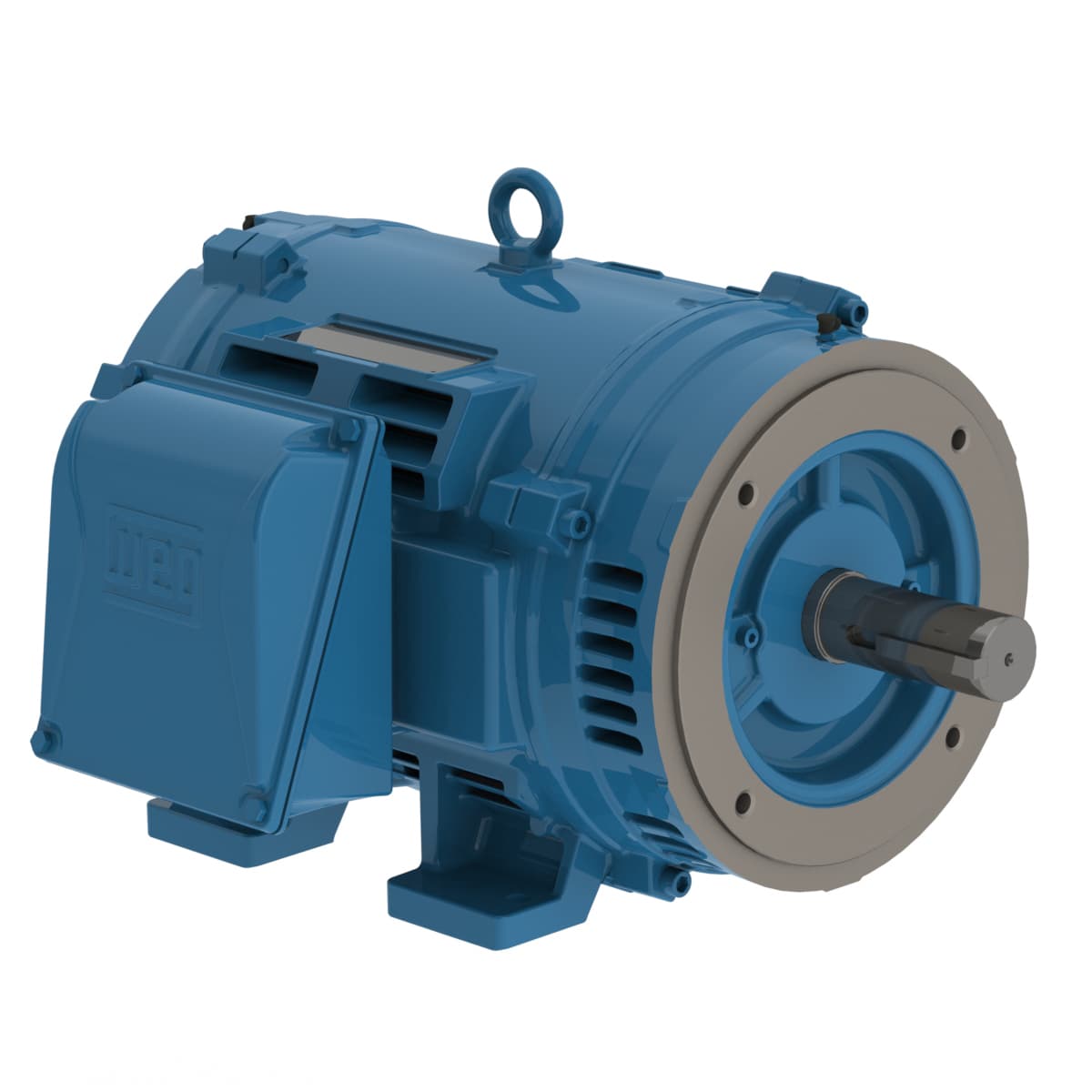

W40 NEMA Premium Efficiency 15 HP 4P 254TC 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01518OT3V254TC-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeC
- No load current 15.6/7.82 A
- Temperature rise 80 K
- Approx. weight³ 264 lb
- Output 15 HP (11 kW)
- LRC 6.4x(Code G)
- Starting Method Direct On Line
- Frequency 60 Hz
- Locked rotor time 61s (cold) 34s (hot)
- Noise level² 62.0 dB(A)
- Synchronous speed 1800 rpm
- Rated speed 1775 rpm
- Rated torque 44.4 ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 4
- L. R. Amperes 258/129 A
- Breakdown torque 260 %
- Enclosure IC01 - ODP
- Standard NEMA MG-1
- Frame 254TC
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output rating 15 HP
- Rated voltage 200/400 V
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Rated current 40.2/20.1 A
- Moment of inertia (J) 2.72 sq.ft.lb
- Mounting F-1
- Voltage 200/400 V
- Slip 1.39 %
- Service factor 1.25
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Number of Poles 4
- Design B
- Degree of Protection IP23
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01518OT3V254TC-W40 Specs
