01518OT3H254T-W40 WEG AC Motors
Part#:01518OT3H254T-W40
Manufacturer:WEG
Alt. Part#:7909492247166
Product Lifecycle:Active
Get a quick Quote!

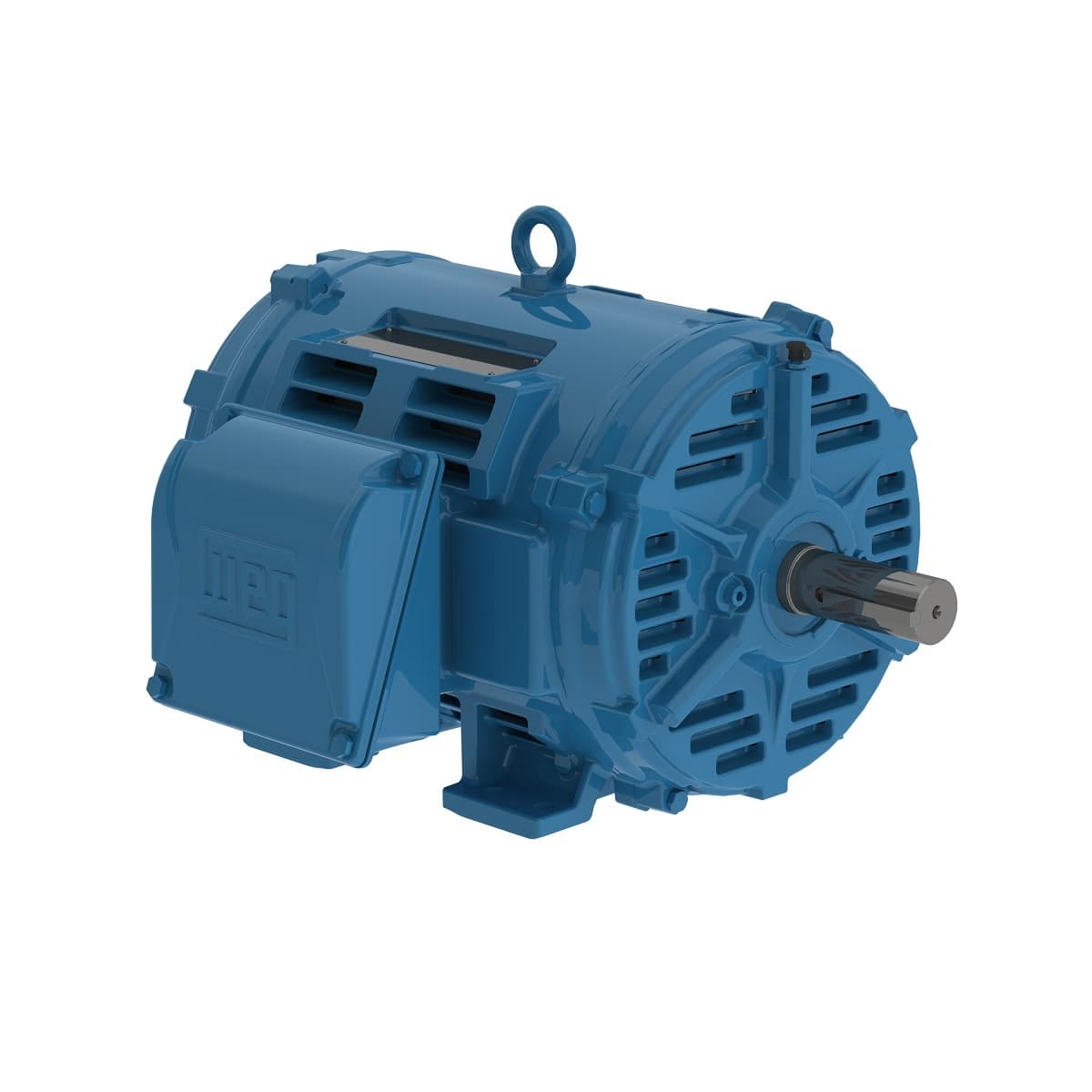

W40 NEMA Premium Efficiency 15 HP 4P 254T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01518OT3H254T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Rated current 14.0 A
- Rated torque 44.4 ft.lb
- Approx. weight³ 246 lb
- Flange Without
- Frame 254T
- No load current 5.44 A
- Locked rotor time 61s (cold) 34s (hot)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Rated voltage 575 V
- Service factor 1.25
- Output rating 15 HP
- L. R. Amperes 89.6 A
- Moment of inertia (J) 2.72 sq.ft.lb
- Temperature rise 80 K
- Output 15 HP (11 kW)
- Design B
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Slip 1.39 %
- Insulation Class F
- Noise level² 62.0 dB(A)
- Number of Poles 4
- Breakdown torque 260 %
- Degree of Protection IP23
- Voltage 575 V
- Frequency 60 Hz
- Enclosure IC01 - ODP
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated speed 1775 rpm
- Locked rotor torque 220 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- LRC 6.4x(Code G)
- Rotation¹ Both (CW and CCW)
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
