01518ET3HR254TC-W22 WEG AC Motors
Part#:01518ET3HR254TC-W22
Manufacturer:WEG
Alt. Part#:7909265961749
Product Lifecycle:Active
Get a quick Quote!

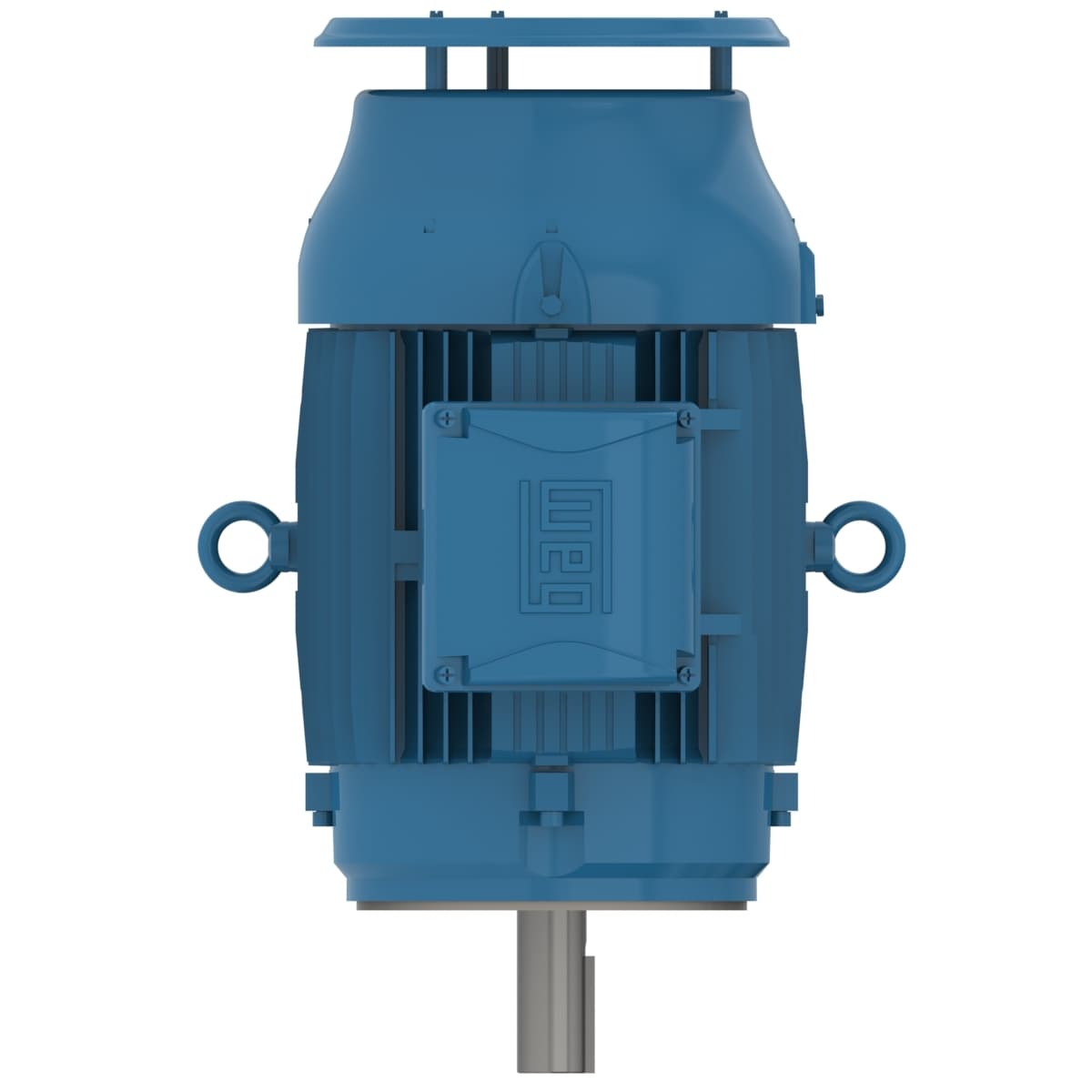

W22 NEMA Premium Efficiency 15 HP 4P 254TC 3Ph 575 V 60 Hz IC411 - TEFC - Footless
Check out the 01518ET3HR254TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed1768 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeC
- Rated current 14.4 A
- LRC 6.4x(Code G)
- Rotation¹ Both (CW and CCW)
- Voltage 575 V
- Frame 254TC
- Rated torque 44.6 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Slip 1.78 %
- No load current 5.60 A
- Degree of Protection IP55
- Approx. weight³ 280 lb
- Output 15 HP (11 kW)
- Temperature rise 80 K
- Moment of inertia (J) 2.62 sq.ft.lb
- Synchronous speed 1800 rpm
- Breakdown torque 260 %
- Enclosure IC411 - TEFC
- Number of Poles 4
- Insulation Class F
- Output rating 15 HP
- Rated speed 1768 rpm
- Locked rotor time 55s (cold) 31s (hot)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- L. R. Amperes 92.2 A
- Service factor 1.25
- Starting Method Direct On Line
- Mounting W-6
- Frequency 60 Hz
- Locked rotor torque 240 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated voltage 575 V
- Design B
- Noise level² 64.0 dB(A)
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
