01512ET3PCT284T-W22 WEG AC Motors
Part#:01512ET3PCT284T-W22
Manufacturer:WEG
Alt. Part#:7909018323992
Product Lifecycle:Active
Get a quick Quote!

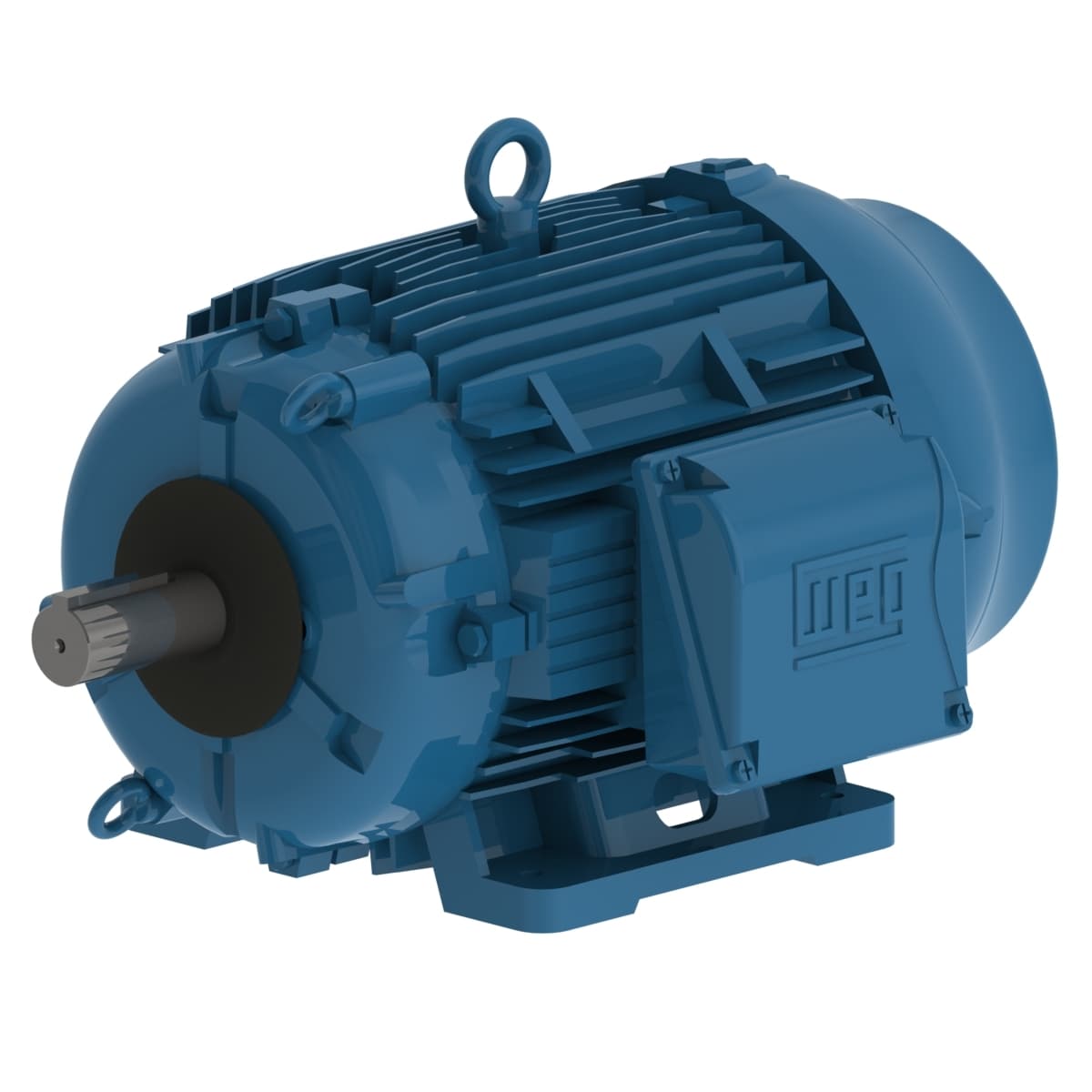

W22 Cooling Tower NEMA Premium Efficiency 15 HP 6P 284T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01512ET3PCT284T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage200 V
- Flange TypeWithout
- LRC 6.4x(Code G)
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Slip 2.08 %
- Locked rotor torque 229 %
- Enclosure IC411 - TEFC
- Voltage 200 V
- Output 15 HP (11 kW)
- Insulation Class F
- Synchronous speed 1200 rpm
- L. R. Amperes 264 A
- Service factor 1.25
- Degree of Protection IP55
- Standard NEMA MG-1
- Rated speed 1175 rpm
- No load current 16.1 A
- Temperature rise 80 K
- Number of Poles 6
- Design B
- Mounting F-2
- Terminal box¹ Right position
- Frequency 60 Hz
- Rated torque 67.0 ft.lb
- Starting Method Direct On Line
- Approx. weight³ 386 lb
- Rated voltage 200 V
- Breakdown torque 260 %
- Noise level² 59.0 dB(A)
- Output rating 15 HP
- Rated current 41.2 A
- Moment of inertia (J) 7.85 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
- Frame 284T
- Locked rotor time 36s (cold) 20s (hot)
- Duty Cycle Cont.(S1)
- Number of poles 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
