BLP080G12000 Hubbell Electronic Components
Part#:BLP080G12000
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

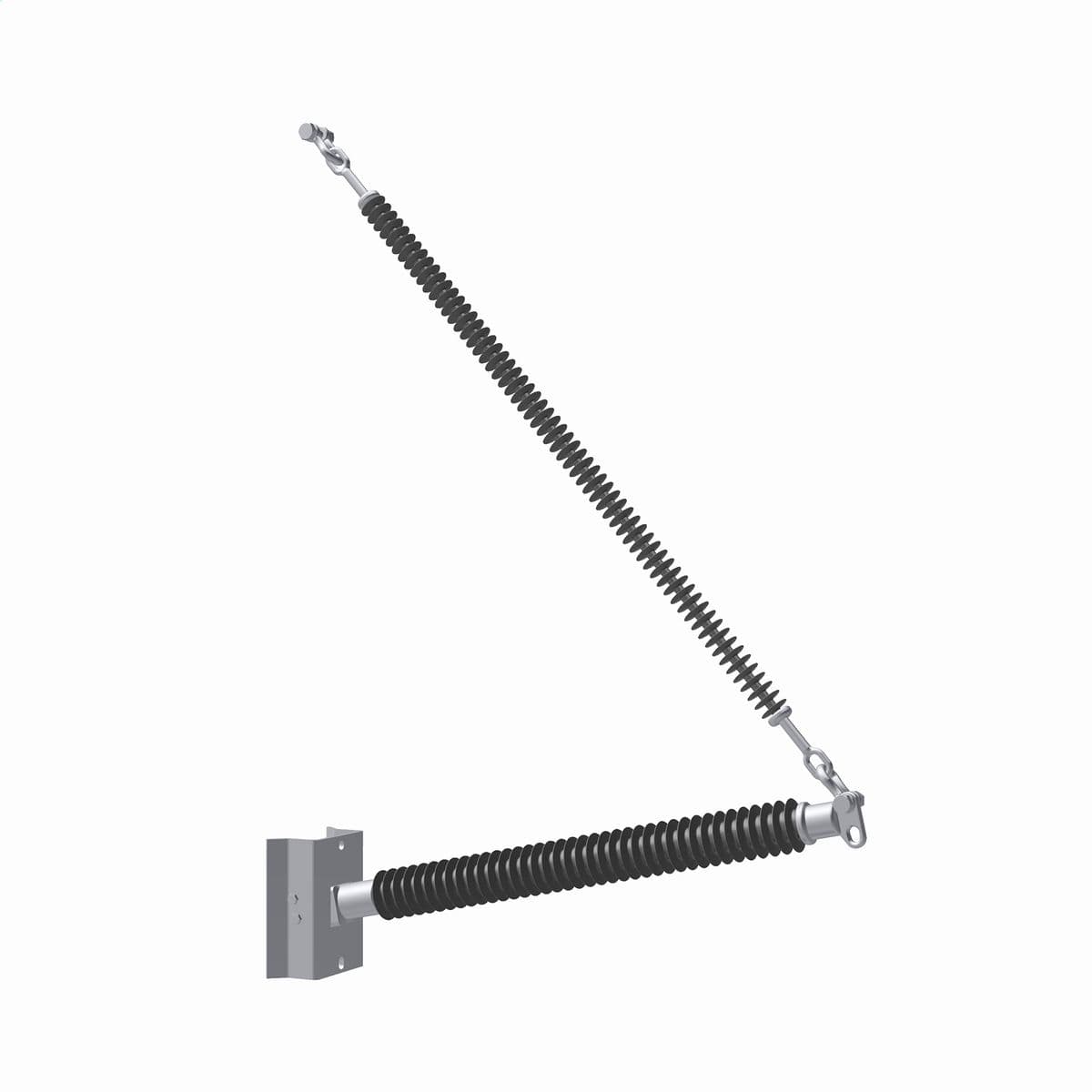

QuadriSil Braced Line Post 230kV, Gain base
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the BLP080G12000 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Strength Rating - Minimum Ultimate, Longitudinal (L) 930 lb
- Tensile Strength 7500 lb
- Distance From Pole 2 in
- Rod Diameter 2.5
- Flashover Voltage - 60 Hz Dry 795 kV
- Withstand Voltage - Lightning Impulse (Positive) 1070 kV
- Fitting - Live Line End Two Hole Blade
- Diameter - Shed(s) 5.06
- Length - Suspension Insulator 129.9
- Critical Impulse Flashover (CIFO) - Negative 1290
- Withstand Voltage - 60 Hz Wet 500 kV
- Strength Rating - Minimum Ultimate, Vertical (V) 11280 lb
- Height 127.0 in
- Length - Brace Section 137
- Voltage Rating 230 V
- Industry Standard(s) ANSI
- EU RoHS Indicator Contact Manufacturer
- Type Braced Line Post
- Length - Effective 91.4 in
- Flashover Voltage - 60 Hz Wet 670 kV
- Withstand Voltage - Lightning Impulse (Negative) 1160 kV
- Fitting - Ground End Aluminum Gain
- Angle 12
- Dimensions 14 in x 8 in x 127.0 in
- Arc Distance - Dry 77.1
- Critical Impulse Flashover (CIFO) - Positive 1190
- Creep and Leakage Distance 280
- Shed Style Uniform
- Material - End Fitting Galvanized Steel
- UPC 096359493471
- Length 14 in
- Width 8 in
- Withstand Voltage - 60 Hz Dry 795
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BLP080G12000 Specs
