BLP053F00000 Hubbell Electronic Components
Part#:BLP053F00000
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

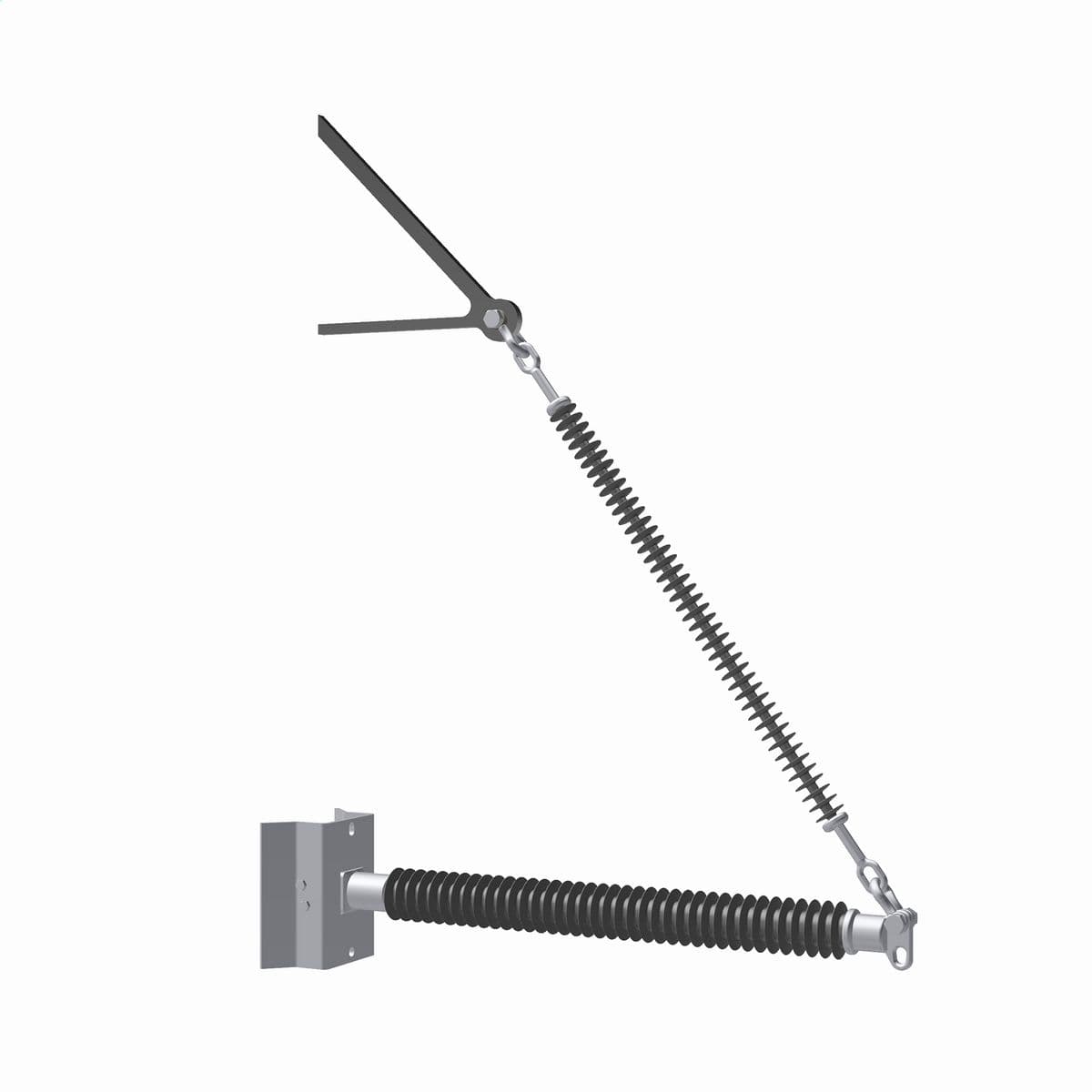

Quadri*Sil Braced Line Post 161kV, Flat base
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the BLP053F00000 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Shed Style Uniform
- Angle 12
- Type Horizontal V Assembly
- Height 61.0 in
- Flashover Voltage - 60 Hz Dry 505 kV
- Strength Rating - Minimum Ultimate, Vertical (V) 10000 lb
- Material - End Fitting Galvanized Steel
- Length - Suspension Insulator 67.3
- Withstand Voltage - 60 Hz Dry 505
- Critical Impulse Flashover (CIFO) - Negative 825
- Industry Standard(s) ANSI
- Strength Rating - Minimum Ultimate, Longitudinal (L) 1355 lb
- Diameter - Shed(s) 5.06
- Length 12 in
- Arc Distance - Dry 51.7
- Rod Diameter 2.5
- Voltage Rating 161 V
- Withstand Voltage - Lightning Impulse (Positive) 710 kV
- Tensile Strength 7500 lb
- Dimensions 12 in x 10 in x 61.0 in
- Fitting - Live Line End Two Hole Blade
- Length - Brace Section 74.3
- Distance From Pole 22 in
- Length - Effective 66.8 in
- Flashover Voltage - 60 Hz Wet 450 kV
- Creep and Leakage Distance 137
- Withstand Voltage - 60 Hz Wet 335 kV
- Fitting - Ground End Aluminum Flat
- Withstand Voltage - Lightning Impulse (Negative) 740 kV
- Critical Impulse Flashover (CIFO) - Positive 790
- Width 10 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BLP053F00000 Specs
