BLP046F00000 Hubbell Electronic Components
Part#:BLP046F00000
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

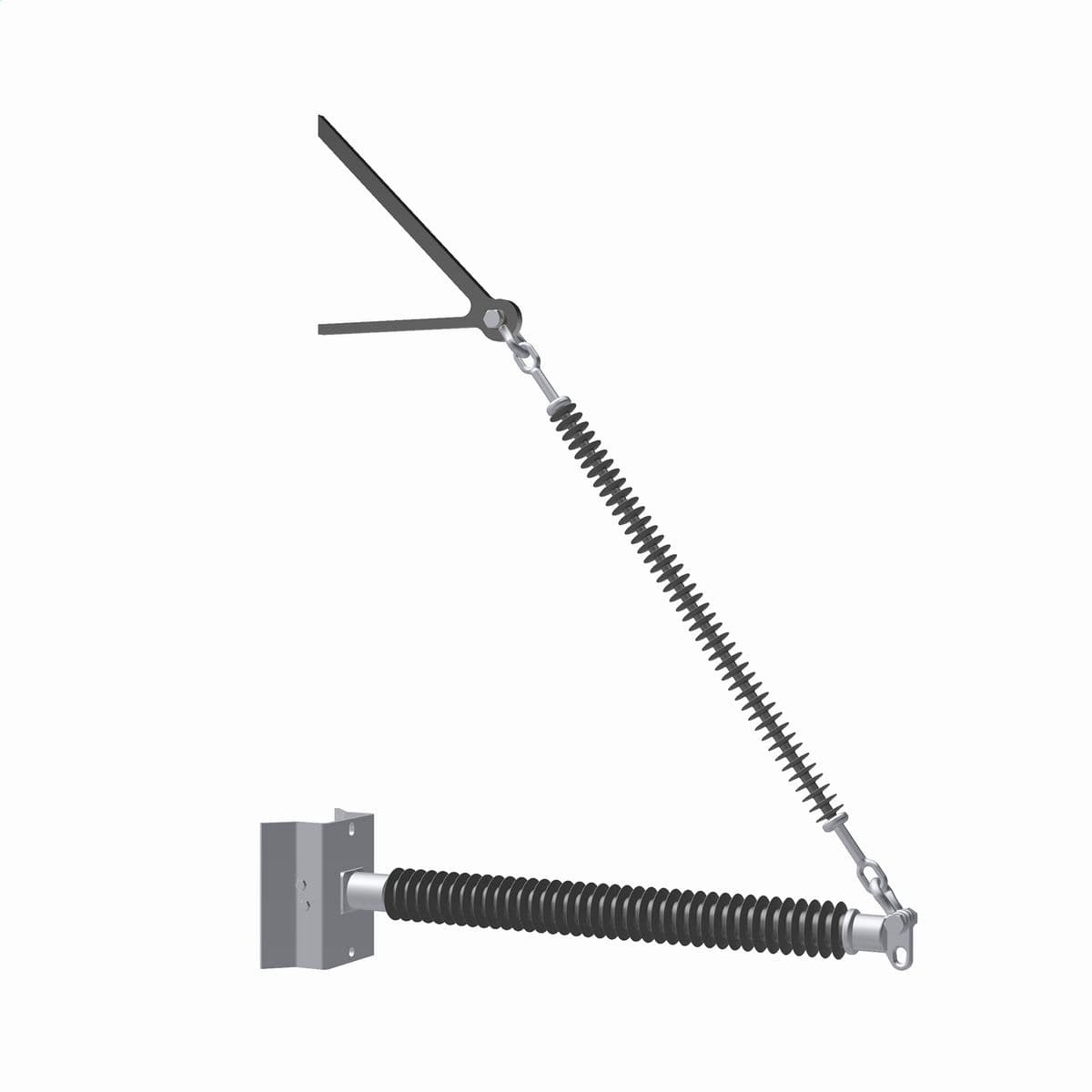

Quadri*Sil Braced Line Post 138kV, Flat base
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the BLP046F00000 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Fitting - Live Line End Two Hole Blade
- Strength Rating - Minimum Ultimate, Vertical (V) 10070 lb
- Type Horizontal V Assembly
- Shed Style Uniform
- Distance From Pole 20 in
- Length - Effective 59.5 in
- Flashover Voltage - 60 Hz Dry 425 kV
- Arc Distance - Dry 44.6
- Withstand Voltage - Lightning Impulse (Positive) 605 kV
- Voltage Rating 115/138 V
- Tensile Strength 7500 lb
- Dimensions 12 in x 10 in x 55.0 in
- Fitting - Ground End Aluminum Flat
- Height 55.0 in
- Critical Impulse Flashover (CIFO) - Positive 675
- Rod Diameter 2.5
- Withstand Voltage - Lightning Impulse (Negative) 655 kV
- Length - Suspension Insulator 58.7
- Flashover Voltage - 60 Hz Wet 390 kV
- Withstand Voltage - 60 Hz Dry 425
- Diameter - Shed(s) 5.06
- Material - End Fitting Galvanized Steel
- Width 10 in
- Strength Rating - Minimum Ultimate, Longitudinal (L) 1550 lb
- Length - Brace Section 65.7
- Industry Standard(s) ANSI
- Critical Impulse Flashover (CIFO) - Negative 730
- Angle 12
- Length 12 in
- Creep and Leakage Distance 115
- Withstand Voltage - 60 Hz Wet 295 kV
