BLP041P00000 Hubbell Electronic Components
Part#:BLP041P00000
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

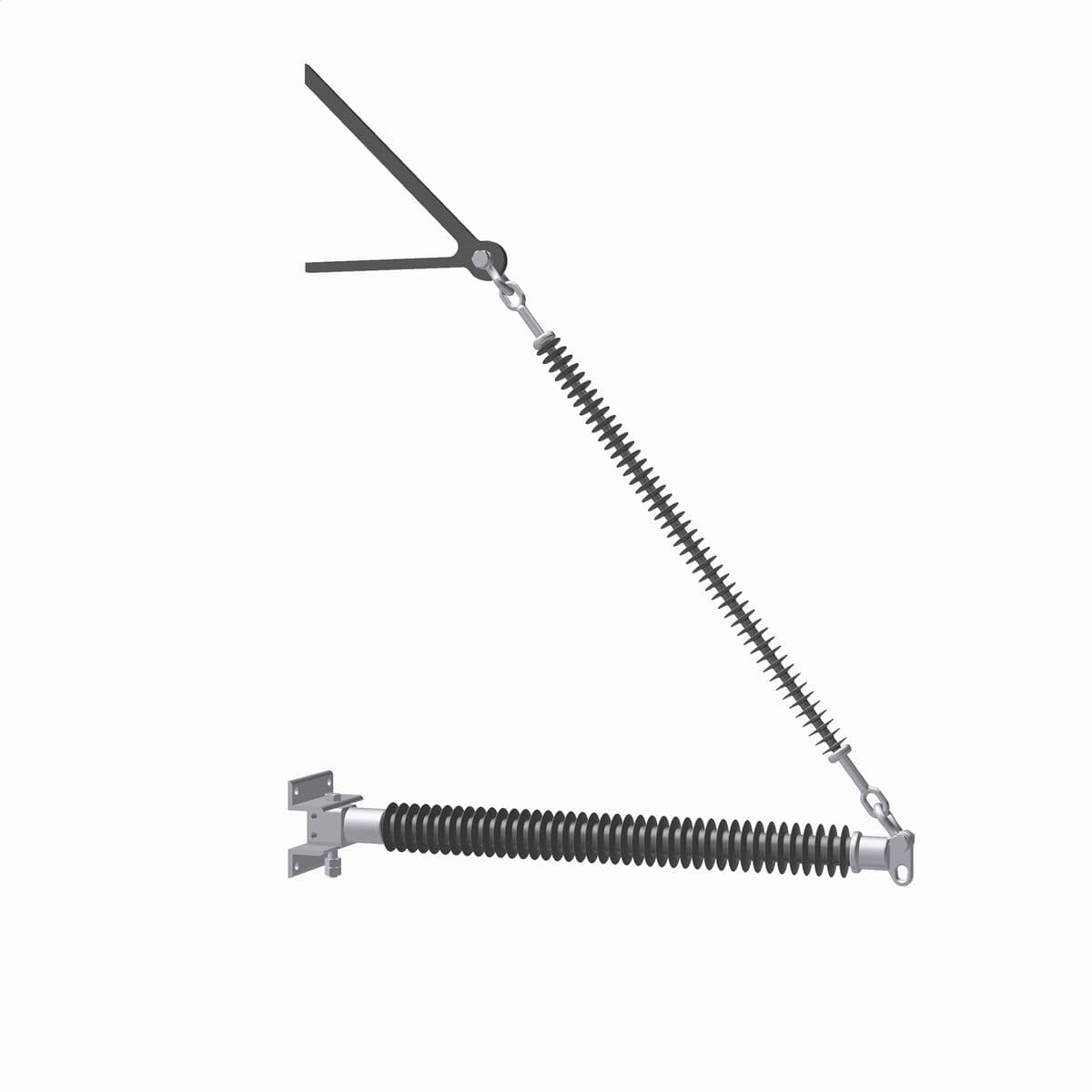

Quadri*Sil Braced Line Post 138kV, Pivoting
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the BLP041P00000 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Length - Suspension Insulator 52.2
- Flashover Voltage - 60 Hz Wet 355 kV
- Withstand Voltage - 60 Hz Wet 265 kV
- Strength Rating - Minimum Ultimate, Vertical (V) 10140 lb
- Material - End Fitting Galvanized Steel
- Angle 0
- Critical Impulse Flashover (CIFO) - Positive 575
- Fitting - Live Line End Two Hole Blade
- Tensile Strength 7500 lb
- Rod Diameter 2.5
- Diameter - Shed(s) 5.06
- Length 10 in
- Creep and Leakage Distance 99
- Voltage Rating 115/138 V
- Type Pivoting Horizontal V Assembly
- Shed Style Uniform
- Dimensions 10 in x 10 in x 50.0 in
- Distance From Pole 18 in
- Width 10 in
- Flashover Voltage - 60 Hz Dry 370 kV
- Fitting - Ground End Pivot
- UPC 096359691730
- Strength Rating - Minimum Ultimate, Longitudinal (L) 7500 lb
- Length - Effective 53.1 in
- Height 50.0 in
- Arc Distance - Dry 38.1
- Industry Standard(s) ANSI
- Withstand Voltage - 60 Hz Dry 370
- Length - Brace Section 59.2
- Critical Impulse Flashover (CIFO) - Negative 625
- Withstand Voltage - Lightning Impulse (Positive) 515 kV
- Withstand Voltage - Lightning Impulse (Negative) 560 kV
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BLP041P00000 Specs
