12677353 WEG AC Motors
Part#:12677353
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

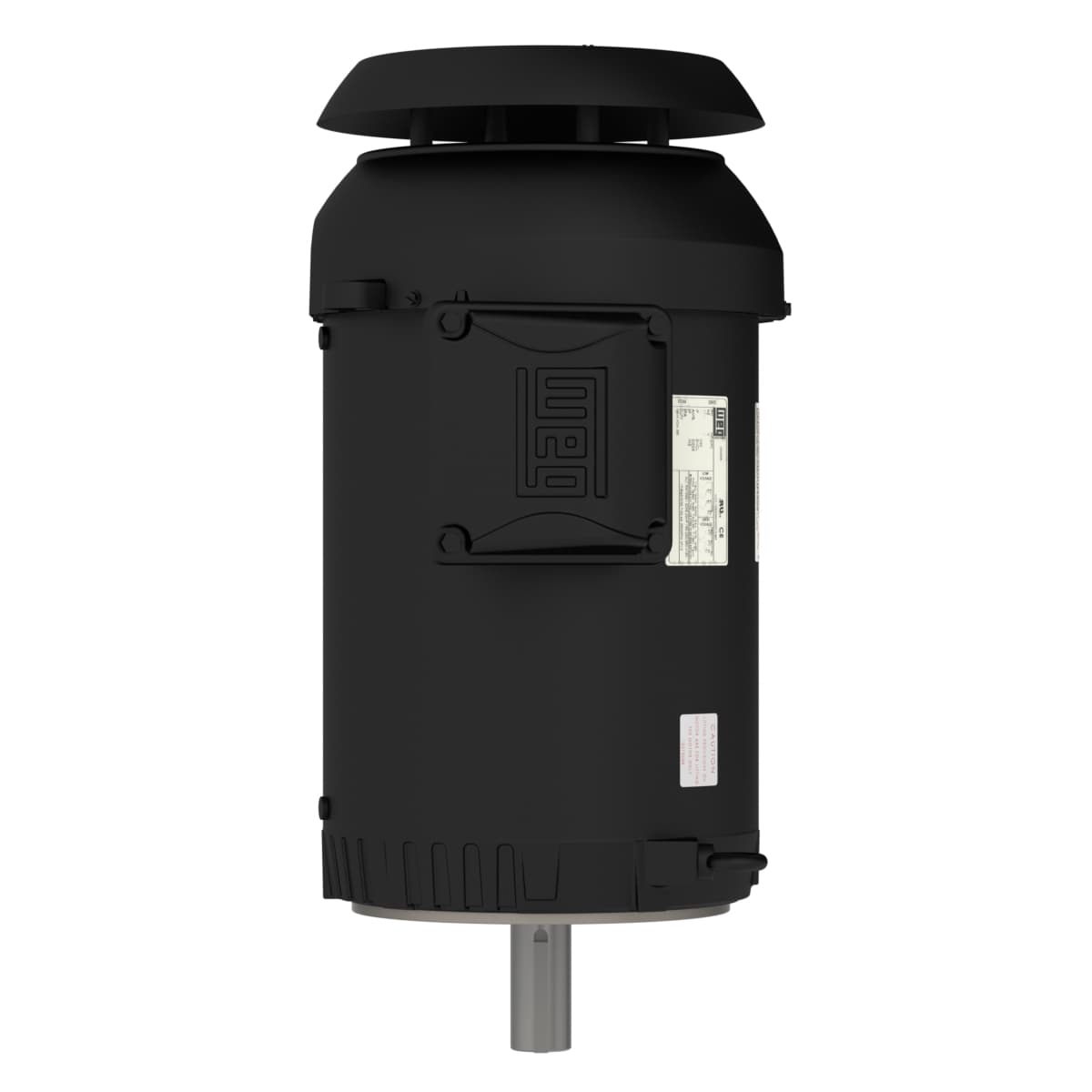

Rolled Steel High Efficiency 5 HP 6P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 12677353 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 230/460 V
- Locked rotor torque 250 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Frequency 60 Hz
- Insulation Class F
- Synchronous speed 1200 rpm
- Rated speed 1175 rpm
- Rated torque 22.3 ft.lb
- Degree of Protection IP55
- Approx. weight³ 139 lb
- Rated current 14.2/7.08 A
- Number of Poles 6
- Moment of inertia (J) 1.08 sq.ft.lb
- No load current 7.90/3.95 A
- Mounting W-6
- Altitude 1000 m.a.s.l.
- Number of poles 6
- Output rating 5 HP
- Slip 2.08 %
- Frame 213/5TC
- Breakdown torque 280 %
- Starting Method Direct On Line
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- LRC 6.4x(Code J)
- Design B
- Flange C
- L. R. Amperes 90.6/45.3 A
- Locked rotor time 36s (cold) 20s (hot)
- Temperature rise 80 K
- Voltage 230/460//190-220/380-415 V
- Output 5 HP (3.7 kW)
- Enclosure IC411 - TEFC
- Noise level² 55.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12677353 Specs
1-year warranty
