12676926 WEG AC Motors
Part#:12676926
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

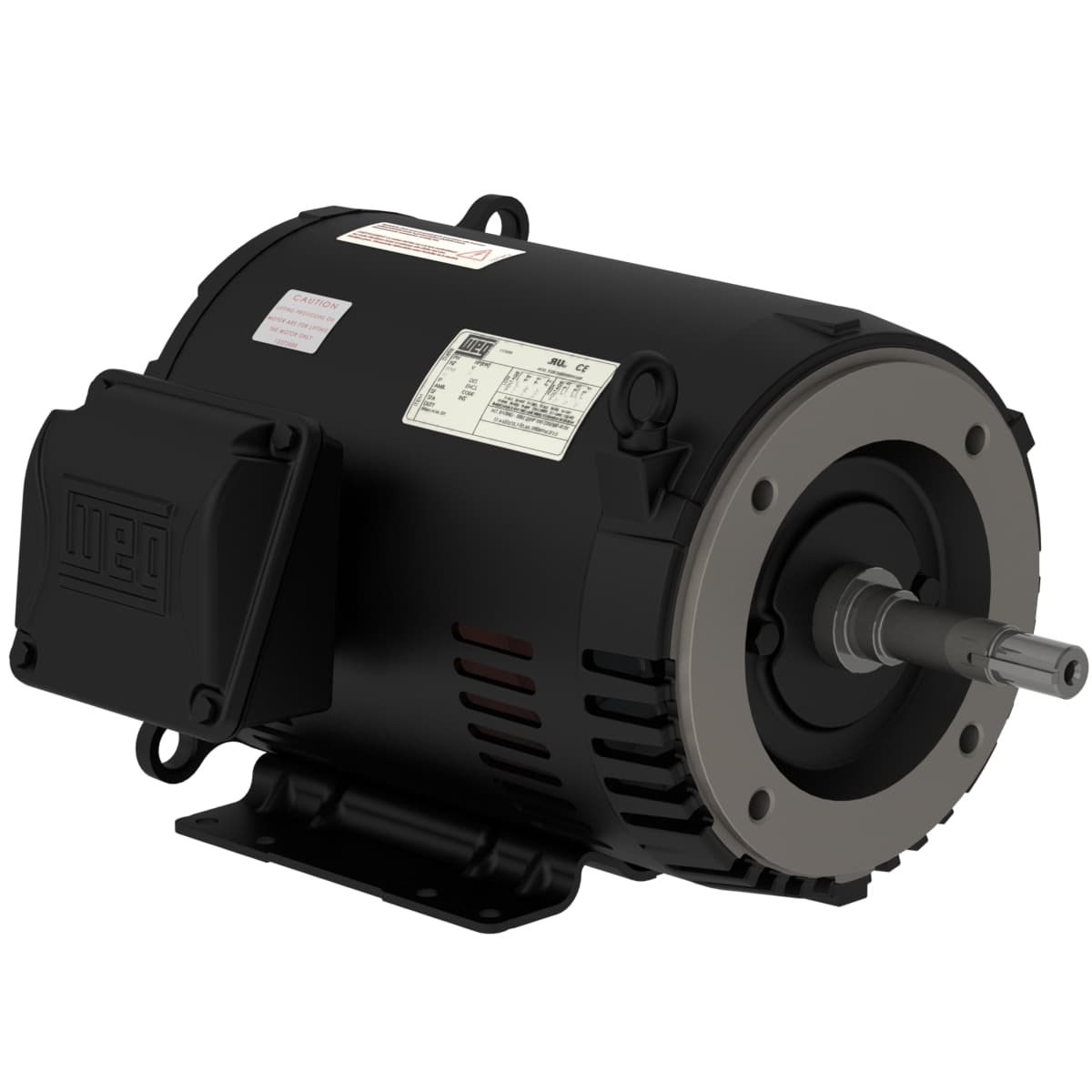

Rolled Steel JM Pump High Efficiency 15 HP 2P 213/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12676926 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 2.08 %
- Insulation Class F
- Mounting F-1
- Terminal box¹ Left position
- L. R. Amperes 228/114 A
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Frame 213/5JM
- Locked rotor torque 190 %
- Duty Cycle Cont.(S1)
- Output rating 15 HP
- Rated current 35.0/17.5 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated speed 3525 rpm
- Breakdown torque 260 %
- Altitude 1000 m.a.s.l.
- Flange C
- Rated voltage 230/460 V
- LRC 6.5x(Code G)
- Noise level² 66.0 dB(A)
- Number of poles 2
- Number of Poles 2
- Design B
- Rotation¹ Both (CW and CCW)
- Synchronous speed 3600 rpm
- Output 15 HP (11 kW)
- Moment of inertia (J) 0.4651 sq.ft.lb
- Voltage 230/460//190-220/380-415 V
- Frequency 60 Hz
- No load current 14.7/7.36 A
- Starting Method Direct On Line
- Approx. weight³ 126 lb
- Locked rotor time 10s (cold) 6s (hot)
- Rated torque 22.3 ft.lb
- Enclosure IC01 - ODP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12676926 Specs
1-year warranty
