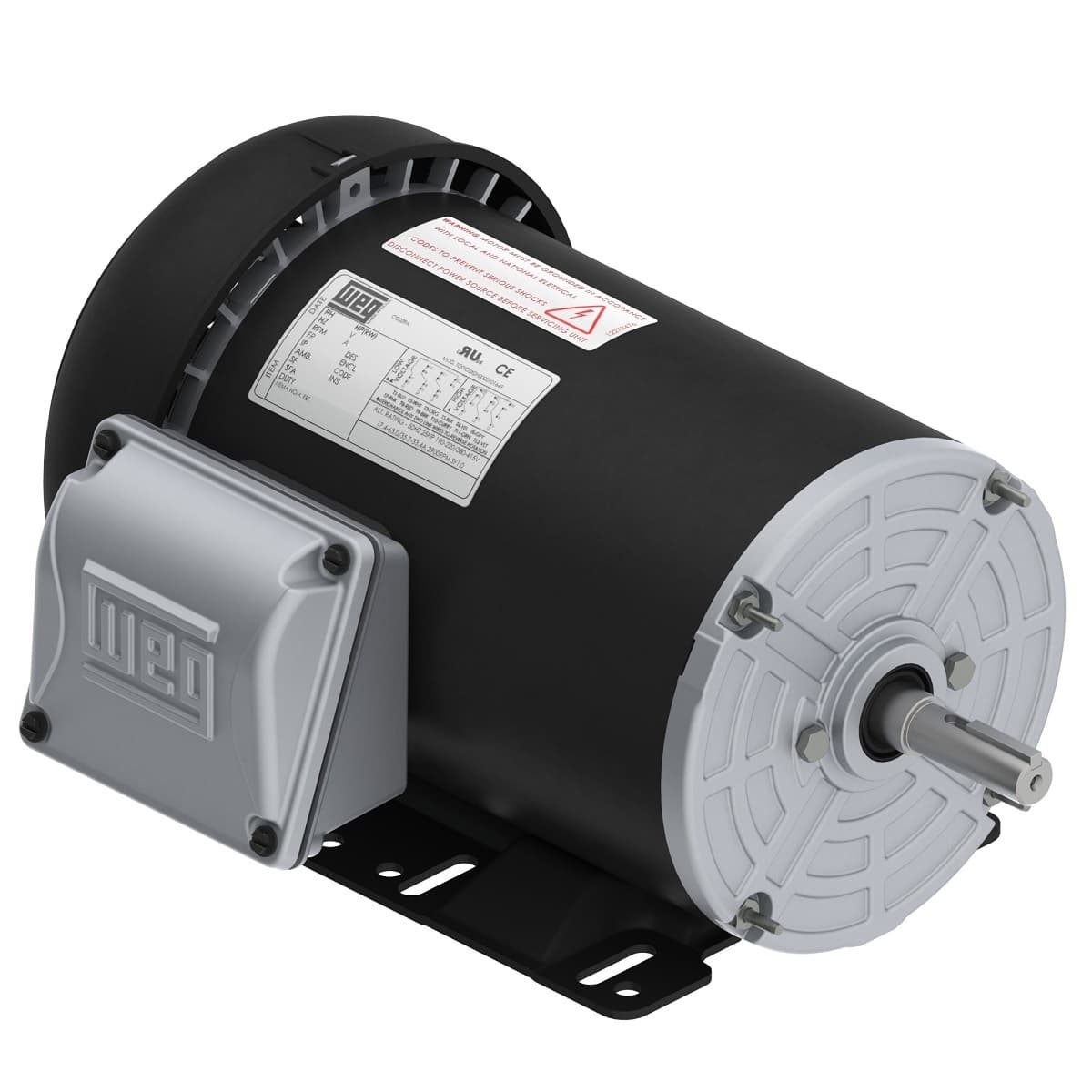

12676245 WEG AC Motors
Part#:12676245
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
Rolled Steel Standard Efficiency 2 HP 2P 56H 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12676245 WEG price in the box on the right side or send a quick quote.
Product Details
- Locked rotor time 19s (cold) 11s (hot)
- Duty Cycle Cont.(S1)
- Approx. weight³ 32.1 lb
- L. R. Amperes 40.3/20.2 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Slip 3.47 %
- Design A
- Degree of Protection IP55
- Voltage 230/460//190-220/380-415 V
- Number of Poles 2
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Rated voltage 230/460 V
- Breakdown torque 290 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated speed 3475 rpm
- Rated torque 3.02 ft.lb
- Noise level² 68.0 dB(A)
- Number of poles 2
- Frame 56H
- Moment of inertia (J) 0.0963 sq.ft.lb
- Mounting F-1
- Rated current 5.24/2.62 A
- Locked rotor torque 229 %
- Service factor 1.15 (1.00 @ 208V)
- Flange Without
- Output 2 HP (1.5 kW)
- No load current 2.07/1.04 A
- Rotation¹ Both (CW and CCW)
- Output rating 2 HP
- Frequency 60 Hz
- LRC 7.7x(Code K)
- Starting Method Direct On Line
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12676245 Specs
