03018OT3V286T-W40G WEG AC Motors
Part#:03018OT3V286T-W40G
Manufacturer:WEG
Alt. Part#:7909492268055
Product Lifecycle:Active
Get a quick Quote!

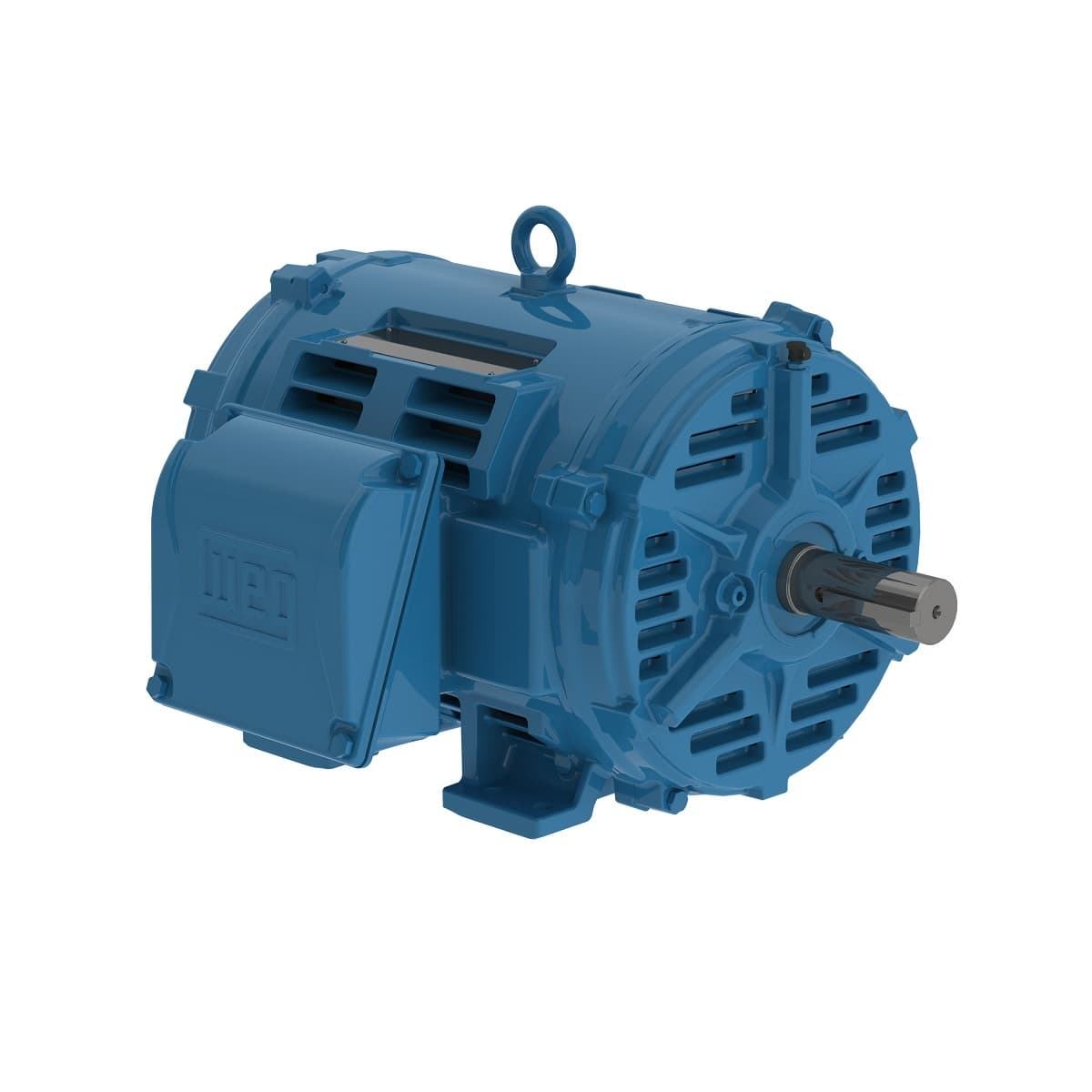

W40 NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03018OT3V286T-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeWithout
- Rated torque 89.0 ft.lb
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Output 30 HP (22 kW)
- No load current 27.8/13.9 A
- Duty Cycle Cont.(S1)
- Voltage 200/400 V
- L. R. Amperes 530/265 A
- Locked rotor torque 240 %
- Breakdown torque 270 %
- Output rating 30 HP
- Frame 284/6T
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Flange Without
- Rated current 80.3/40.1 A
- Locked rotor time 32s (cold) 18s (hot)
- Degree of Protection IP23
- Synchronous speed 1800 rpm
- Number of Poles 4
- Insulation Class F
- Noise level² 64.0 dB(A)
- Rated speed 1770 rpm
- Moment of inertia (J) 4.52 sq.ft.lb
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Rated voltage 200/400 V
- Temperature rise 80 K
- Standard NEMA MG-1
- Slip 1.67 %
- Design B
- Starting Method Direct On Line
- Number of poles 4
- Frequency 60 Hz
- LRC 6.6x(Code G)
- Ambient temperature -20°C to +40°C
- Approx. weight³ 398 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03018OT3V286T-W40G Specs
