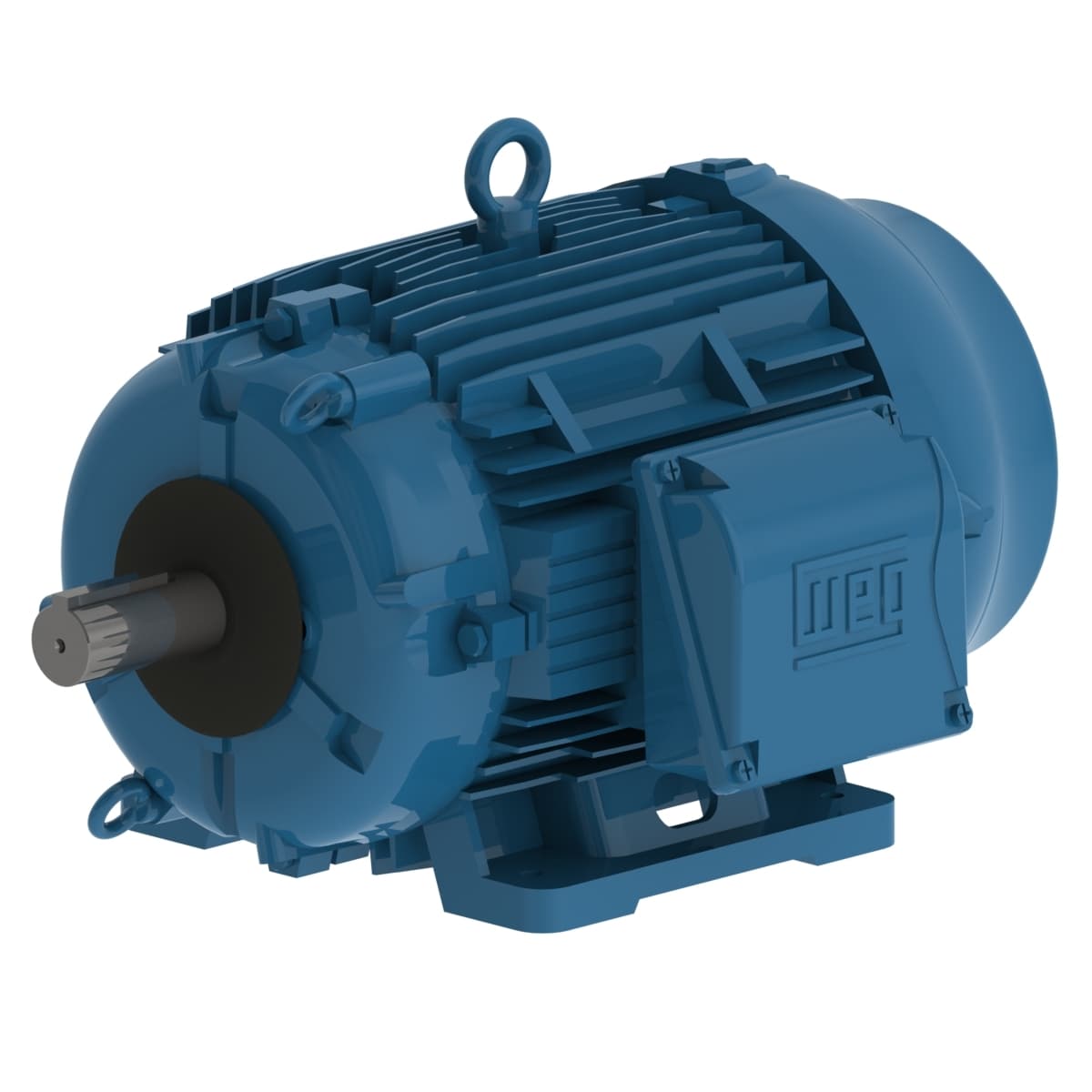

03012ET3PCT326T-W22 WEG AC Motors
Part#:03012ET3PCT326T-W22
Manufacturer:WEG
Alt. Part#:7909018508160
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower NEMA Premium Efficiency 30 HP 6P 324/6T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 03012ET3PCT326T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1180 rpm
- Number of Poles6 Pole
- Voltage200 V
- Flange TypeWithout
- Number of Poles 6
- Design B
- Enclosure IC411 - TEFC
- Terminal box¹ Right position
- LRC 6.2x(Code G)
- Noise level² 62.0 dB(A)
- Degree of Protection IP55
- Rated speed 1180 rpm
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Number of poles 6
- Approx. weight³ 549 lb
- Rated current 83.3 A
- Moment of inertia (J) 13.2 sq.ft.lb
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- No load current 37.7 A
- Rated voltage 200 V
- Rated torque 134 ft.lb
- Insulation Class F
- Mounting F-2
- Starting Method Direct On Line
- Output 30 HP (22 kW)
- Frame 324/6T
- Breakdown torque 240 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Slip 1.67 %
- L. R. Amperes 516 A
- Locked rotor time 37s (cold) 21s (hot)
- Service factor 1.25
- Synchronous speed 1200 rpm
- Output rating 30 HP
- Voltage 200 V
- Ambient temperature -20°C to +40°C
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03012ET3PCT326T-W22 Specs
1-year warranty
