03012OS3EOW326T WEG AC Motors
Part#:03012OS3EOW326T
Manufacturer:WEG
Alt. Part#:7909018603032
Product Lifecycle:Active
Get a quick Quote!

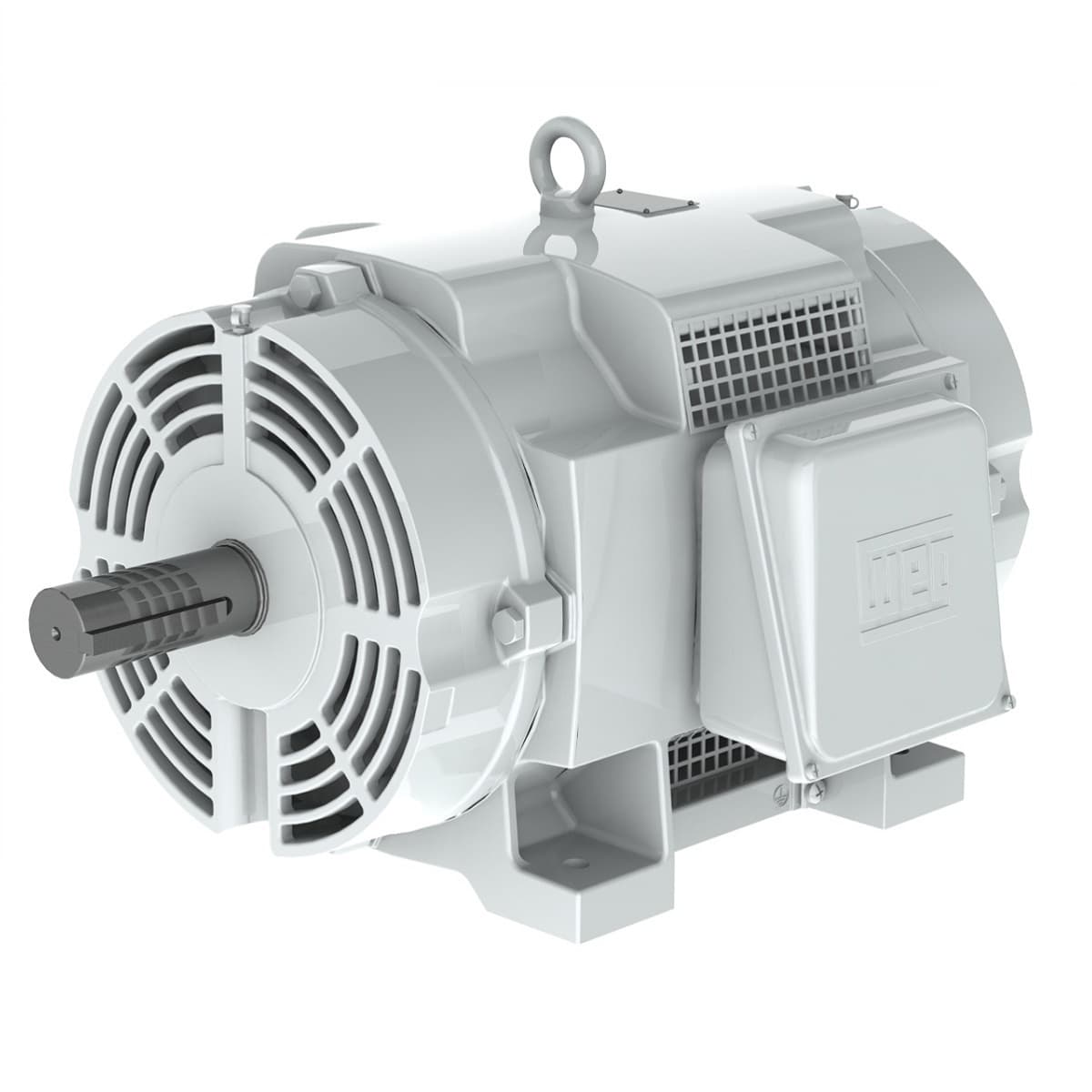

ODP Standard Efficiency 30 HP 6P 326T 3Ph 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03012OS3EOW326T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1120 rpm
- Number of Poles6 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Rated voltage 208-230/460 V
- Locked rotor time 52s (cold) 29s (hot)
- Starting Method Direct On Line
- Output rating 30 HP
- Rated current 86.2-78.0/39.0 A
- No load current 35.4-32.0/16.0 A
- Mounting F-2
- Number of poles 6
- Output 30 HP (22 kW)
- Rated torque 141 ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Slip 6.67 %
- Moment of inertia (J) 9.15 sq.ft.lb
- Duty Cycle Cont.(S1)
- Voltage 208-230/460 V
- L. R. Amperes 483-437/218 A
- Service factor 1.00
- Noise level² 60.0 dB(A)
- Flange Without
- LRC 5.6x(Code G)
- Temperature rise 80 K
- Approx. weight³ 519 lb
- Frequency 60 Hz
- Insulation Class F
- Enclosure IC01 - ODP
- Standard NEMA MG-1
- Rated speed 1120 rpm
- Design D
- Rotation¹ Both (CW and CCW)
- Number of Poles 6
- Locked rotor torque 290 %
- Altitude 1000 m.a.s.l.
- Frame 326T
- Breakdown torque 0 %
- Degree of Protection IP23
- Terminal box¹ Right position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03012OS3EOW326T Specs
1-year warranty
