CSS 14-34F0-S-D-M-ST Schmersal Electronic Components
Part#:CSS 14-34F0-S-D-M-ST
Manufacturer:Schmersal
Alt. Part#:101188767
Product Lifecycle:Active
Get a quick Quote!

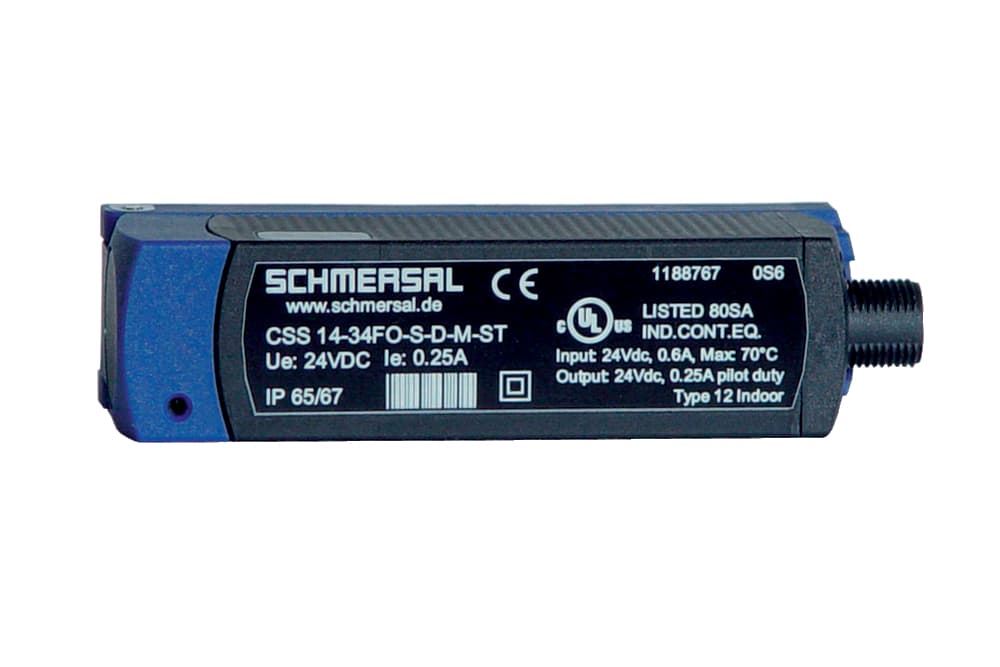

Safety sensors; Electronic safety sensors; 1 x connector plug M12, 8-pole; Actuation from side; without edge monitoring of the enabling pushbutton, suitable for automatic start; To control positive-guided relay without downstream safety monitoring module;
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the CSS 14-34F0-S-D-M-ST Schmersal price in the box on the right side or send a quick quote.
Product Details
- Installation conditions (mechanical) not flush
- Short circuit detection Yes
- Number of semi-conductor outputs with signaling function 1
- Note (Repeat accuracy R) Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 36 mm (e.g. mounting tolerance or due to guard door sagging). Increased misalignment, max. 53 mm, possible when the CST 34-S-2 actuator is used. The axial m
- Length of sensor 35 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Required rated short-circuit current to EN 60947-5-1 100 A
- Voltage, Utilisation category DC12 24 VDC
- Protection rating II
- No-load supply current I0 100 mA
- Output current, (fail-safe output), maximum 0.25 A
- EMC rating IEC 61000-6-2
- Rated impulse withstand voltage Uimp 0.8 kV
- Switching frequency, approx. 3 Hz
- Current, Utilisation category DC12 0.05 A
- Voltage, Utilisation category DC13 24 VDC
- Overvoltage category III
- Voltage drop Ud, maximum 5 V
- Rated insulation voltage Ui 32 VDC
- Rated operating current (safety outputs) 250 mA
- Interfering radiation IEC 61000-6-4
- Degree of pollution to VDE 0100 3
- Current leakage Ir 0.5 mA
- Voltage type DC (direct current)
- Versions p-type
- Current, Utilisation category DC13 0.05 A
- Operating current 600 mA
- Standards IEC 60947-5-3
- Safety functions Yes
- Note The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Active principle inductive
- Sensor topology Sensor for series wiring
- Cascadable Yes
- Repeat accuracy R R 0.5 mm
- Width of sensor 27 mm
- Diagnostic output Yes
- Ensured switch distance OFF Sar 13 mm, 17 mm
- Gross weight 142 g
- Number of LEDs 3
- Actuator switch distance Actuator CST 180-1 / CST 180-2: 10 mm, Actuator CST 34-S-1: 14 mm, Actuator CST 34-S-2: 14 mm
- Height of sensor 108.2 mm
- Storage and transport temperature, maximum +85 °C
- Input for enabling pushbutton, suitable for automatic start Yes
- Number of fail-safe digital outputs 2
- Ensured switch distance ON Sao 12 mm, 8 mm
- Restistance to shock 30 g / 11 ms
- Enclosure material Glass-fibre, reinforced thermoplastic
- Integral System Diagnostics, status Yes
- Switch distance 10 mm, 14 mm
- Ambient temperature, maximum +70 °C
- Reaction time, maximum 30 ms
- Short-circuit recognition Yes
- Hysteresis (Switch distance), maximum 1.5 mm
- Housing construction form Block
- Duration of risk, maximum 60 ms
- Actuating panels lateral
- Terminal Connector Connector plug M12, 8-pole
- Storage and transport temperature, minimum -25 °C
- Active area lateral
- Number of Series-wiring of sensors 31
- Ambient temperature, minimum -25 °C
