CSS 12-34-V-D-M-ST Schmersal Electronic Components
Part#:CSS 12-34-V-D-M-ST
Manufacturer:Schmersal
Alt. Part#:101181065
Product Lifecycle:Active
Get a quick Quote!

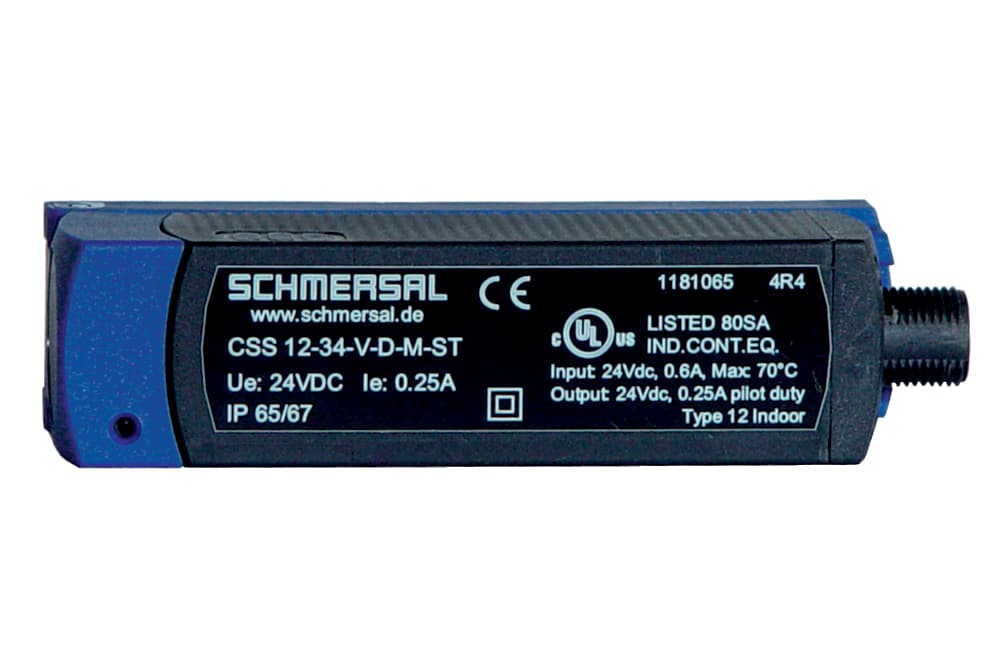

Safety sensors; Electronic safety sensors; 1 x connector plug M12, 8-pole; Actuation from top; Max. 31 sensors can be wired in series.; Thermoplastic enclosure; Electronic contact-free, coded system; Misaligned actuation possible; 27 mm x 108.2 mm x 35 mm
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the CSS 12-34-V-D-M-ST Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 140 g
- Short circuit detection Yes
- Actuating panels Actuation from top
- Terminal Connector Connector plug M12, 8-pole
- Ambient temperature, maximum +70 °C
- Protection rating II
- Versions p-type
- Current, Utilisation category DC13 0.05 A
- Sensor topology Sensor for series wiring
- Reaction time, maximum 30 ms
- Cascadable Yes
- Integral System Diagnostics, status Yes
- Duration of risk, maximum 60 ms
- Hysteresis (Switch distance), maximum 1.5 mm
- Actuator switch distance Actuator CST 34-V-1: 12 mm, Actuator CST 34-S-2: 10 mm, Actuator CST 34-S-3: 15 mm
- Note The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
- Length of sensor 35 mm
- Restistance to shock 30 g / 11 ms
- Rated operating current (safety outputs) 250 mA
- Current, Utilisation category DC12 0.05 A
- EMC rating IEC 61000-6-2
- Current leakage Ir 0.5 mA
- Switching frequency, approx. 3 Hz
- Housing construction form Block
- Diagnostic output Yes
- Number of fail-safe digital outputs 2
- Ensured switch distance ON Sao 10 mm, 13 mm, 8 mm
- Width of sensor 27 mm
- Storage and transport temperature, minimum -25 °C
- No-load supply current I0 100 mA
- Output current, (fail-safe output), maximum 0.25 A
- Voltage drop Ud, maximum 5 V
- Active principle inductive
- Safety functions Yes
- Repeat accuracy R R 0.5 mm
- Height of sensor 108.2 mm
- Degree of pollution to VDE 0100 3
- Operating current 600 mA
- Voltage, Utilisation category DC13 24 VDC
- Enclosure material Glass-fibre, reinforced thermoplastic
- Short-circuit recognition Yes
- Number of Series-wiring of sensors 31
- Switch distance 10 mm, 12 mm, 15 mm
- Ambient temperature, minimum -25 °C
- Rated insulation voltage Ui 32 VDC
- Required rated short-circuit current to EN 60947-5-1 100 A
- Number of semi-conductor outputs with signaling function 1
- Active area front side
- Note (Repeat accuracy R) Axial offset: the front face allows for an axial misalignment (z) of max. ± 8 mm (see figure: operating principle).
- Storage and transport temperature, maximum +85 °C
- Voltage type DC (direct current)
- Installation conditions (mechanical) not flush
- Standards IEC 60947-5-3
- Number of LEDs 3
- Ensured switch distance OFF Sar 15 mm, 16 mm, 18 mm
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Overvoltage category III
- Rated impulse withstand voltage Uimp 0.8 kV
- Voltage, Utilisation category DC12 24 VDC
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Interfering radiation IEC 61000-6-4
