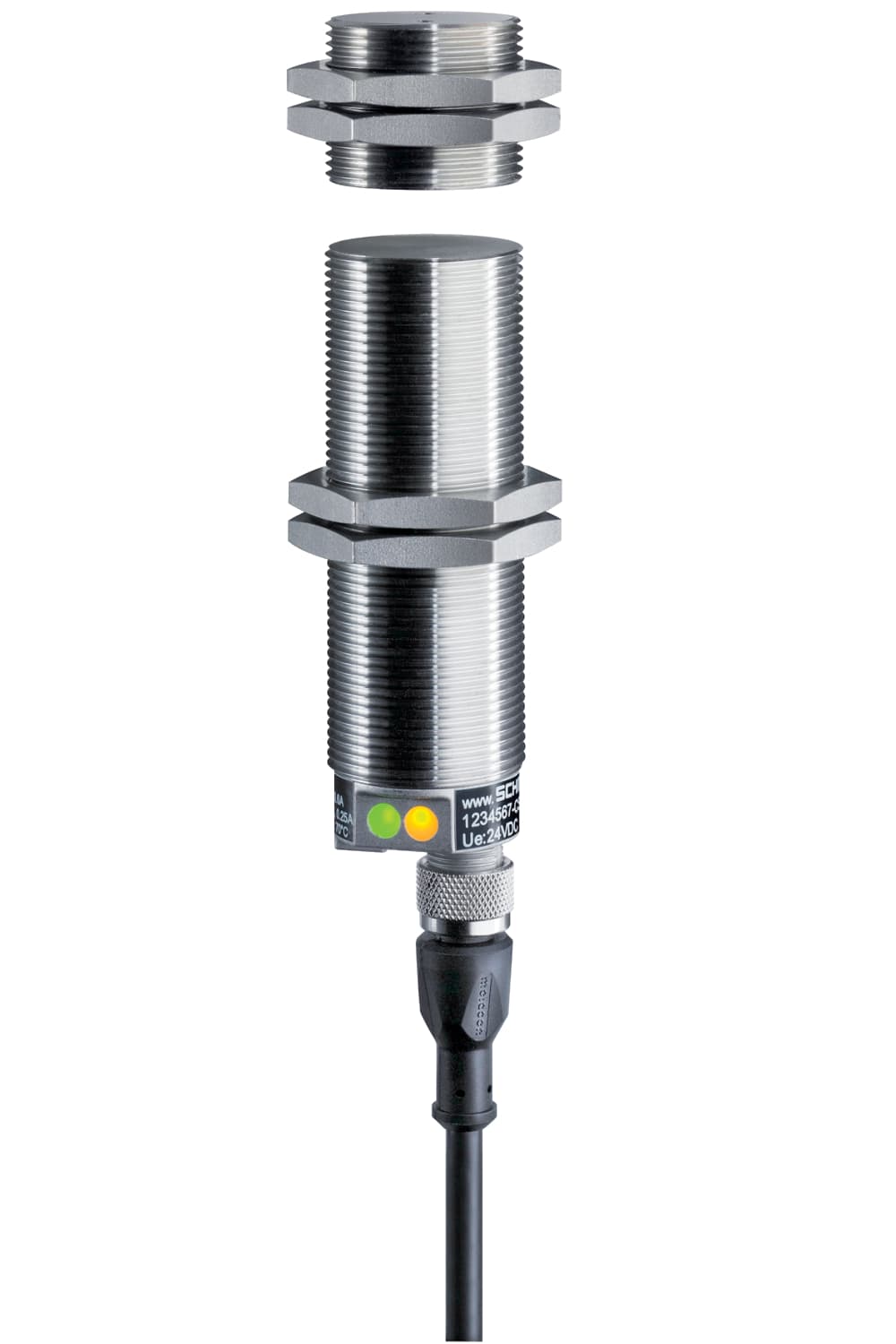

CSS 11-30S-D-M-ST Schmersal Electronic Components
Part#:CSS 11-30S-D-M-ST
Manufacturer:Schmersal
Alt. Part#:101204612
Product Lifecycle:Active
Get a quick Quote!
Safety sensors; Electronic safety sensors; Stainless steel enclosure; Max. 31 sensors can be wired in series.; Connector M12, 8-pole; Ø M30; High repeat accuracy of the switching points; Max. length of the sensor chain 200 m; 2 short-circuit proof PNP saf
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the CSS 11-30S-D-M-ST Schmersal price in the box on the right side or send a quick quote.
Product Details
- ISO thread of the sensor M30
- Short-circuit recognition Yes
- Number of Series-wiring of sensors 31
- Duration of risk, maximum 60 ms
- Rated insulation voltage Ui 32 VAC/DC
- Required rated short-circuit current to EN 60947-5-1 100 A
- Voltage drop Ud, maximum 5 V
- Voltage, Utilisation category DC13 24 VDC
- Short circuit detection Yes
- Reaction time, maximum 60 ms
- Hysteresis (Switch distance), maximum 2 mm
- Storage and transport temperature, minimum -25 °C
- Rated operating voltage, maximum 26.4 VDC
- Current leakage Ir 0.5 mA
- Housing construction form Cylinder, thread
- Cascadable Yes
- Actuating panels Actuation from top
- Length of sensor 99.5 mm
- Protection rating II
- Operating current 600 mA
- Versions p-type
- EMC rating IEC 61000-6-2
- Standards IEC 61508, IEC 60947-5-3
- Number of fail-safe digital outputs 2
- Note The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
- Restistance to shock 30 g / 11 ms
- No-load supply current I0 100 mA
- Current, Utilisation category DC12 0.05 A
- Diagnostic output Yes
- Sensor topology Sensor for series wiring
- Ensured switch distance OFF Sar 15 mm
- Ambient temperature, maximum +65 °C
- Degree of pollution to VDE 0100 3
- Output current, (fail-safe output), maximum 0.25 A
- Interfering radiation IEC 61000-6-4
- Enclosure material Stainless steel
- Integral System Diagnostics, status Yes
- Switch distance 11 mm
- Ambient temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- Switching frequency, approx. 3 Hz
- Current, Utilisation category DC13 0.05 A
- Gross weight 245 g
- Number of semi-conductor outputs with signaling function 1
- Active area front side
- Storage and transport temperature, maximum +85 °C
- Voltage type DC (direct current)
- Voltage, Utilisation category DC12 24 VDC
- Installation conditions (mechanical) not flush
- Number of LEDs 2
- Ensured switch distance ON Sao 8 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Rated operating voltage, minimum 20.4 VDC
- Active principle inductive
- Safety functions Yes
- Repeat accuracy R R 1 mm
- Degree of protection IP69 to EN 60529
- Overvoltage category III
- Rated operating current (safety outputs) 250 mA
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents CSS 11-30S-D-M-ST Specs
