Variable Frequency Drives (VFD)

M000-09501040EU0100AB100

NIDEC M000-09501040EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor and requires an external choke and air cooling for operation. It features a frame size of 9E with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model has a rated current of 104A for heavy-duty applications and operates on a supply voltage of 500Vac-575Vac. It is equipped with a degree of protection IP20 NEMA 1 and is designed to work with a network frequency (supply input) of 50 Hz. The rated active power ranges from 90kW to 250kW for heavy-duty operations, equivalent to 125HP to 400HP.

Nidec

M000-09501040DU0100AB100

NIDEC M000-09501040DU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor and a built-in DC to AC inverter featuring air cooling. It has dimensions of frame size 9D, measuring H28.11" x W12.2" x D11.4" (H714mm x W310mm x D290mm). The rated current for this device is 104A for heavy-duty applications. It operates on a supply voltage of 500Vac-575Vac with a degree of protection rated at IP20 NEMA 1. The network frequency for supply input is 50 Hz. This model supports a rated active power range of 90kW-250kW and a rated power range of 125HP-400HP for heavy-duty operations.

Nidec

ATV61HD75Y

Schneider Electric ATV61HD75Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features a built-in EMC filter of class C3, a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. The device offers a degree of protection of IP20 and UL type 1, with dimensions of H630mm x W320mm x D290mm. It supports a variety of control methods, including U/F ratio adjustment (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The rated current is specified at 85A for 500Vac at 2.5kHz, 77A for 575Vac at 2.5kHz, 84A for 690Vac at 2.5kHz, and it can handle up to 102A max. current for 60 seconds. For connectivity, it includes Modbus and CANopen communication protocols, with 5 digital inputs, 1 additional digital input programmable as discrete or PTC input, another digital input for PWR safety, 1 digital output as C/O SPDT relay contact, another digital output as NO relay contact, and two analog inputs. The output frequency range is 0.1-500 Hz, and it also features 1 analog output. The device is designed for wall mounting and operates with a current consumption of 79A at 500Vac, 67A at 600Vac, and 82A at 690Vac, with rated active power of 75kW at 690Vac and 55kW at 500Vac, equivalent to 75HP.

Schneider Electric

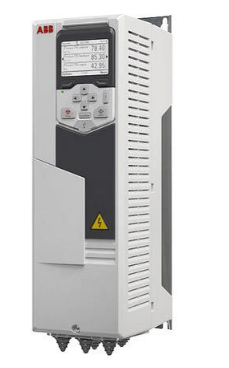

ACS580-01-065A-4

50 HP ABB ACS580 Series NEMA 1 Enclosed Variable Frequency Drive | 400 – 480 VAC 3 Phase Input | 480 VAC 3 Phase Output | 65 Amps | ACS580-01-065A-4

ABB Control

ESV752N02TXD

ESV752N02TXD Lenze Variable Frequency Drive (VFD) - The SMV 10.0 hp (7.5 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter ideal for Eu

Lenze

M702-08401570A10101AB100

NIDEC M702-08401570A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 184A under normal duty and 157A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 90kW under normal duty and 75kW under heavy-duty, with a rated power of 125HP for both conditions.

Nidec

M702-08500630A10101AB100

NIDEC M702-08500630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols, including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 86A under normal duty and 63A under heavy-duty conditions, with a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. Designed for a 3-phase input network with a frequency range of 45-66 Hz for supply input and 0-599 Hz for output, it includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source, relay contact type). The rated active power is 75kW under normal duty and 45kW under heavy-duty, with corresponding rated power of 75HP and 60HP, respectively.

Nidec

ATV61HD90Y

Schneider Electric ATV61HD90Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features a built-in EMC filter of class C3, a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. The device offers a degree of protection of IP20 UL type 1 and supports wall mounting. It is capable of delivering 120% of the nominal motor torque with functions such as U/F ratio control (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback. The ATV61HD90Y has dimensions of H630mm x W320mm x D290mm and provides a variety of communication and control options, including Modbus and CANopen protocols. It features 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, a PWR safety input, 2 digital outputs (including relay contacts), and 2 analog inputs for comprehensive connectivity. The output network frequency ranges from 0.1-500 Hz, and it includes an analog output (0-10Vdc / 0-20mA). The rated current varies with voltage: 110A at 500Vac, 99A at 575Vac, 104A at 690Vac, with a maximum current of 132A for 60 seconds. Its rated active power is 90kW at 690Vac (75kW at 500Vac), equivalent to 100HP.

Schneider Electric

M702-08500860A10101AB100

NIDEC M702-08500860A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 108A under normal duty and 86A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. The device is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 90kW under normal duty and 55kW under heavy-duty, corresponding to a rated power of 100HP and 75HP, respectively.

Nidec

M702-08600630A10101AB100

NIDEC M702-08600630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 86A under normal duty and 63A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. The device is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 75kW under normal duty and 55kW under heavy-duty, corresponding to a rated power of 100HP and 75HP, respectively.

Nidec

ATV61HU15N4S337

Schneider Electric ATV61HU15N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase motors. It features a built-in DC choke, an EMC filter of class C2, and a built-in heatsink, all within a coated version for enhanced chemical resistance. The device operates on a supply voltage range of 323-528Vac, accommodating 380Vac, 400Vac, 480Vac, and 500Vac nominal values. It measures H230mm x W130mm x D175mm and offers an IP20 UL type 1 degree of protection. The rated current is 4.1A at 380Vac and 3.4A at 460Vac with a 12kHz frequency, peaking at 4.9A max current for 60 seconds. Wall mounting is the prescribed installation method. Communication is facilitated via Modbus and CANopen protocols, supporting a 3-phase network with an output frequency range of 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, alongside 1 digital output (C/O SPDT relay contact) and another (NO relay contact). The unit also features 1 analog input (-10...+10Vdc) and another (0-10Vdc / 0-20mA). Its current consumption is 5.8A at 380Vac and 5.3A at 480Vac, with a rated active power of 1.5kW and a rated power of 2HP.

Schneider Electric

ACS35503U31A02J404

MACHINERY DRIVE, 10 HP, 31 A, 240 VAC, Voltage Range: 200-240V, UL TYPE OPEN (IP20), Cabinet-mounted, Basic Panel, 3-Phase Input, 3-Phase Output, Frame: R4

ABB Control

M702-08600860A10101AB100

NIDEC M702-08600860A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 108A under normal duty and 86A under heavy-duty conditions, with a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, UL open, and is designed for a 3-phase input network with a frequency range of 45-66 Hz (supply input) and 0-599 Hz (output). The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 90kW under normal duty and 75kW under heavy-duty, corresponding to 125HP and 100HP, respectively.

Nidec

M702-09201760A10101AB100

NIDEC M702-09201760A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 55kW under normal duty and 45kW under heavy-duty, corresponding to 75HP and 60HP, respectively.

Nidec

ATV61HU22S6X

Schneider Electric ATV61HU22S6X is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed with a built-in heatsink. It operates on a supply voltage of 425-660Vac, including nominal voltages of 440Vac, 480Vac, 500Vac, and 600Vac. This model features dimensions of H295mm x W210mm x D213mm and offers an IP20 UL type 1 degree of protection. It has a rated current of 4.5A at 500Vac (4kHz), 3.9A at 575Vac (4kHz), and can handle a maximum current of 5.4A for up to 60 seconds. The ATV61HU22S6X supports wall mounting and uses Modbus and CANopen communication protocols. It is designed for a 3-phase network with an output frequency range of 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) that are programmable, plus an additional digital input programmable as discrete or PTC input, and another for PWR safety. It also features 1 digital output (C/O SPDT relay contact) and 1 digital output (NO relay contact), alongside 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The current consumption is rated at 7.6A for 500Vac and 6.7A for 600Vac, with a rated active power of 2.2kW and a rated power of 3HP.

Schneider Electric

M702-09202190A10101AB100

NIDEC M702-09202190A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 266A under normal duty and 219A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source, relay contact type). Its rated active power is 75kW under normal duty and 55kW under heavy-duty, corresponding to a rated power of 100HP and 75HP, respectively.

Nidec

M702-09201760E10101AN100

NIDEC M702-09201760E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with dual Safe Torque Off (STO), requiring an external choke and air cooling. It features a frame size of 9E with dimensions of H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT communication protocols. It operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions. The supply voltage is AC 200Vac-240Vac (220Vac / 230Vac), suitable for a 3-phase input network with a frequency of 45-66 Hz (supply input) and can output frequencies from 0-599 Hz. The ambient air temperature for operation ranges from -20°C to +40°C. It has an IP20, NEMA 1, and UL open degree of protection. The device includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 55kW (75HP) under normal duty and 45kW (60HP) under heavy-duty conditions.

Nidec

ATV61HU30M3S337

Schneider Electric ATV61HU30M3S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series. It features variable speed/frequency drive capabilities with U/F ratio options (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model includes a built-in EMC filter (class C2), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), with dimensions of H260mm x W155mm x D187mm. The device offers chemical resistance through a conformal coating (reinforced version) and has a degree of protection rated at IP20 UL type 1. The rated current is 13.7A (230Vac; 12kHz; 3-phase), 11A (230Vac; 12kHz; single-phase), with a maximum current of 13.2A (single-phase; for 60s) and 16.4A (3-phase; for 60s). It supports wall mounting and uses Modbus and CANopen communication protocols. The type of network supported is single-phase (1P) / 3-phase (3P), with a network frequency output of 0.1-599 Hz. It includes 1 x analog output (0-10Vdc / 0-20mA), 5 x digital inputs (24Vdc; sink/source) (LI1-LI5; programmable), 1 x digital input (24Vdc; sink/source) (LI6; programmable as discrete or PTC input), 1 x digital input (24Vdc) (PWR safety input), and 2 x digital outputs (1 x C/O SPDT relay contact) (R1), (1 x NO relay contact) (R2). The analog inputs consist of 1 x (-10...+10Vdc) and 1 x (0-10Vdc / 0-20mA). Current consumption is specified as 25.9A (200Vac; 2.2kW; single-phase), 19.3A (200Vac; 3kW; 3-phase), 22.1A (240Vac; 2.2kW; single-phase), and 16.4A (240Vac; 3kW; 3-phase). The rated active power is 3kW (3-phase) and 2.2kW (single-phase), with a rated power of 3HP (single-phase).

Schneider Electric

ACS35503U12A54J404

MACHINERY DRIVE, 7.5 HP, 12.5 A, 480 VAC, Voltage Range: 380-480V, UL TYPE OPEN (IP20), Cabinet-mounted, Basic Panel, 3-Phase Input, 3-Phase Output, Frame: R3

ABB Control

ESV222N04TFC

ESV222N04TFC Lenze Variable Frequency Drive (VFD) - The SMV 3.0 hp (2.2 kW) drive features a 400 / 480 VAC 3Ø filtered input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line fil

Lenze
