Variable Frequency Drives (VFD)

ATV61HD30Y

Schneider Electric ATV61HD30Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities with U/F ratio customization (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The design incorporates a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance. The ATV61HD30Y offers an IP20 UL type 1 degree of protection and has dimensions of H420mm x W240mm x D236mm. It supports a rated current of 35A at 500Vac and 690Vac, 32A at 575Vac with a 42A max current capability for 60 seconds. Wall mounting is the prescribed mounting mode. Communication is facilitated through Modbus and CANopen protocols. The output network frequency ranges from 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, along with 2 digital outputs. Analog inputs include 1 for -10...+10Vdc and another for 0-10Vdc / 0-20mA signals. Current consumption is specified at 33A for 500Vac, 28A for 600Vac, and 34A for 690Vac, with a rated active power of 30kW at 690Vac and 22kW at 500Vac, equivalent to 30HP.

Schneider Electric

ATV61HD37M3X337

Schneider Electric ATV61HD37M3X337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in heatsink in a coated version for enhanced durability, operates on a supply voltage of 170-264Vac (nominally at 200Vac, 220Vac, 230Vac, 240Vac), and offers dimensions of H550mm x W320mm x D266mm. It has a conformal coating for chemical resistance, an IP20 UL type 1 degree of protection, and supports a rated current of 144A at 230Vac with a 12kHz frequency, peaking at 172.8A max. current for 60 seconds. Designed for wall mounting, it utilizes Modbus and CANopen communication protocols, operates on a 3-phase network, and outputs frequencies ranging from 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact), and 2 analog inputs (-10...+10Vdc and 0-10Vdc / 0-20mA). It has a current consumption of 141A at 200Vac and 127A at 240Vac, with a rated active power of 37kW and rated power of 50HP.

Schneider Electric

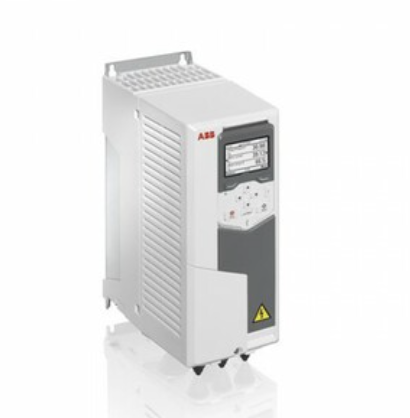

ACS580-01-124A-4

Variable Speed/Frequency Drive (VSD/VFD) / Inverter - ABB (ACS580 series) 100 HP 380-480 VAC 124 AMP 3 PH IP21

ABB Control

ATV61HD37Y

Schneider Electric ATV61HD37Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series, designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, accommodating 480Vac, 500Vac, 600Vac, and 690Vac nominal voltages. The dimensions are H630mm x W320mm x D290mm, and it has a conformal coating for chemical resistance. The degree of protection is IP20 UL type 1, with rated currents of 47A at 500Vac, 41A at 575Vac, 43A at 690Vac, and a maximum current of 56.4A for 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. The network is 3-phase (3P) with an output frequency range of 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), 1 digital input programmable as discrete or PTC input, 1 PWR safety input, 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 2 analog inputs for versatile connectivity. The current consumption is specified at 48A for 500Vac, 41A for 600Vac, and 47A for 690Vac, with rated active power of 37kW at 690Vac and 30kW at 500Vac, equivalent to 40HP.

Schneider Electric

M702-07600190A10101AB100

NIDEC M702-07600190A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports multiple communication protocols, including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 23A under normal duty and 19A under heavy-duty conditions, with a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, and UL open. The device is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 18.5kW under normal duty and 15kW under heavy-duty, corresponding to a rated power of 25HP and 20HP, respectively.

Nidec

ATV61HD45M3X337

Schneider Electric ATV61HD45M3X337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in heatsink in a coated version for enhanced durability, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), and offers dimensions of H550mm x W320mm x D266mm. It has a conformal coating for chemical resistance, an IP20 UL type 1 degree of protection, and supports a rated current of 176A at 230Vac with a 12kHz frequency, peaking at 211.2A max. current for 60 seconds. Designed for wall mounting, it utilizes Modbus and CANopen communication protocols, operates on a 3-phase network, and outputs frequencies ranging from 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs. It also features 2 analog inputs for comprehensive control. The current consumption is rated at 167A for 200Vac and 147A for 240Vac, with a rated active power of 45kW and a rated power of 60HP.

Schneider Electric

ESV752N02TXF

ESV752N02TXF Lenze Variable Frequency Drive (VFD) - The SMV 10.0 hp (7.5 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter idea

Lenze

ESV222N04TXB

ESV222N04TXB Lenze Variable Frequency Drive (VFD) - The SMV 3.0 hp (2.2 kW) drive features a 400 / 480 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

ATV61HD45N4S337

Schneider Electric ATV61HD45N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model includes a DC choke, an EMC filter (class C2), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) and has dimensions of H630mm x W320mm x D290mm. The drive is chemically resistant with a conformal coating (reinforced version) and has an IP20 UL type 1 degree of protection. It supports a rated current of 94A (380Vac; 12kHz), 77A (460Vac; 12kHz), and can handle a maximum current of 112.8A for 60 seconds. Designed for wall mounting, it uses Modbus and CANopen communication protocols and is suitable for a 3-phase (3P) network with an output frequency range of 0.1-599 Hz. The drive includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs. It also features 2 analog inputs for comprehensive control. The current consumption is rated at 104A (380Vac) and 85A (480Vac), with a rated active power of 45kW and a rated power of 60HP.

Schneider Electric

M702-07600290A10101AB100

NIDEC M702-07600290A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 36A under normal duty and 29A under heavy-duty conditions, and it requires a supply voltage of 500Vac-690Vac (600Vac). The ambient air temperature for operation ranges from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, UL open, and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). It has a rated active power of 30kW under normal duty and 22kW under heavy-duty, equivalent to 40HP and 30HP respectively.

Nidec

M702-07600440A10101AB100

NIDEC M702-07600440A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports multiple communication protocols, including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 52A under normal duty and 44A under heavy-duty conditions, with a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, UL open, and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 45kW under normal duty and 37kW under heavy-duty, corresponding to a rated power of 60HP and 50HP, respectively.

Nidec

ATV61HD45Y

Schneider Electric ATV61HD45Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, accommodating 480Vac, 500Vac, 600Vac, and 690Vac nominal voltages, and has dimensions of H630mm x W320mm x D290mm. The drive is chemically resistant with a conformal coating (reinforced version) and has an IP20 UL type 1 degree of protection. It supports a rated current of 59A at 500Vac, 52A at 575Vac, 54A at 690Vac, with a maximum current of 70.8A for 60 seconds. Wall mounting is the prescribed mounting mode, and it communicates via Modbus and CANopen protocols. Designed for a 3-phase network with an output frequency range of 0.1-599 Hz, it includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input. It also features 1 digital output (C/O SPDT relay contact) and 1 digital output (NO relay contact), alongside 2 analog inputs for comprehensive control. The current consumption stands at 62A for 500Vac, 51A for 600Vac, and 55A for 690Vac, with rated active power of 45kW at 690Vac and 37kW at 500Vac, equivalent to 50HP.

Schneider Electric

M702-07600540A10101AB100

NIDEC M702-07600540A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 73A under normal duty and 54A under heavy-duty conditions. The supply voltage required is 500Vac-690Vac (600Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). Its rated active power is 55kW under normal duty and 45kW under heavy-duty, corresponding to a rated power of 75HP and 60HP, respectively.

Nidec

M702-08201160A10101AB100

NIDEC M702-08201160A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 149A under normal duty and 116A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source; relay contact type). The rated active power is 37kW under normal duty and 30kW under heavy-duty, corresponding to a rated power of 50HP and 40HP, respectively.

Nidec

ATV61HD55Y

Schneider Electric ATV61HD55Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities with U/F ratio adjustment (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The design incorporates a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. It has an IP20 UL type 1 degree of protection and supports wall mounting. The rated current is specified as 68A at 500Vac and 2.5kHz, 62A at 575Vac and 2.5kHz, 62A at 690Vac and 2.5kHz, with a maximum current of 81.6A for 60 seconds. Communication is facilitated through Modbus and CANopen protocols. The output network frequency ranges from 0.1 to 500 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact). Analog inputs include 1 for -10...+10Vdc and another for 0-10Vdc / 0-20mA signals. The current consumption is 68A for 500Vac, 57A for 600Vac, and 63A for 690Vac, with rated active power of 55kW at 690Vac and 45kW at 500Vac, equivalent to 60HP. The dimensions are H630mm x W320mm x D290mm.

Schneider Electric

M702-08201320A10101AB100

NIDEC M702-08201320A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features frame size 8 with dimensions of H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 180A under normal duty and 132A under heavy-duty conditions. The supply voltage required is 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). Its rated active power is 45kW under normal duty and 37kW under heavy-duty, corresponding to 60HP and 50HP, respectively.

Nidec

M702-07600240A10101AB100

NIDEC M702-07600240A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 30A under normal duty and 24A under heavy-duty conditions, and it requires a supply voltage of 500Vac-690Vac (600Vac). The ambient air temperature for operation ranges from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, and UL open. The device is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 22kW under normal duty and 18.5kW under heavy-duty, corresponding to a rated power of 30HP and 25HP, respectively.

Nidec

M702-07600380A10101AB100

NIDEC M702-07600380A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 46A under normal duty and 38A under heavy-duty conditions. The supply voltage required is 500Vac-690Vac (600Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 37kW under normal duty and 30kW under heavy-duty, corresponding to a rated power of 50HP and 40HP, respectively.

Nidec

M702-08401340A10101AB100

NIDEC M702-08401340A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 155A under normal duty and 134A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 75kW under normal duty and 55kW under heavy-duty, with a rated power of 100HP for both conditions.

Nidec

ATV61HD75Y

Schneider Electric ATV61HD75Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features a built-in EMC filter of class C3, a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. The device offers a degree of protection of IP20 and UL type 1, with dimensions of H630mm x W320mm x D290mm. It supports a variety of control methods, including U/F ratio adjustment (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The rated current is specified at 85A for 500Vac at 2.5kHz, 77A for 575Vac at 2.5kHz, 84A for 690Vac at 2.5kHz, and it can handle up to 102A max. current for 60 seconds. For connectivity, it includes Modbus and CANopen communication protocols, with 5 digital inputs, 1 additional digital input programmable as discrete or PTC input, another digital input for PWR safety, 1 digital output as C/O SPDT relay contact, another digital output as NO relay contact, and two analog inputs. The output frequency range is 0.1-500 Hz, and it also features 1 analog output. The device is designed for wall mounting and operates with a current consumption of 79A at 500Vac, 67A at 600Vac, and 82A at 690Vac, with rated active power of 75kW at 690Vac and 55kW at 500Vac, equivalent to 75HP.

Schneider Electric
