Pneumatic Fittings

133067

push-in L-fitting NPQP-LQ-R14-Q10-FD-P10 Size: Standard, Nominal size: 5,8 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

186170

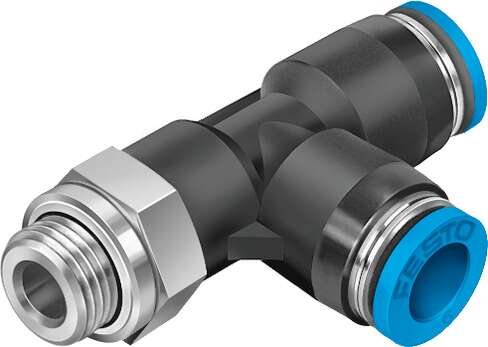

push-in T-fitting QSTL-G1/4-6 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 4,3 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

12257

barbed L-fitting LCN-M5-PK-3 Swivelling, with sealing ring. Nominal size: 2 mm, Type of seal on screw-in stud: Sealing ring, Operating pressure complete temperature range: -0,95 - 10 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010

Festo

177696

push-in connector CQ-15 For high flow rates. Nominal size: 12 mm, Assembly position: Any, Container size: 1, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 7 bar

Festo

186179

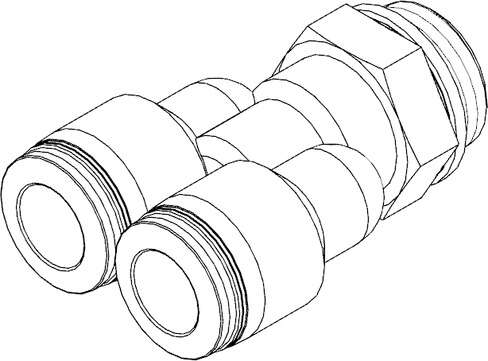

push-in Y-fitting QSY-G1/8-4 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 3,1 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

186188

push-in Y-fitting QSY-G1/2-12 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 8,3 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1

Festo

186272

push-in T-fitting QSMT-G1/8-4 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 2,4 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

186322

push-in fitting QS-V0-G3/8-12 male thread with external hexagon. Size: Standard, Nominal size: 11 mm, Material fire test: (* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Type of seal on screw-in stud: Sealing ring, Design structure: Push/pull princip

Festo

186127

push-in L-fitting, long QSLL-G1/8-4 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 2,8 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

186254

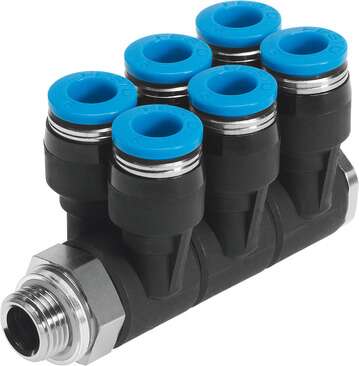

multiple distributor QSLV6-G1/8-6 6-fold, 360° orientable. Size: Standard, Nominal size: 2,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

Festo

177707

push-in fitting CQ-3/8-15H For high flow rates. Nominal size: 9,4 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Festo

153326

push-in connector QSM-4-3 reducing. Size: Mini, Nominal size: 1,7 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

183748

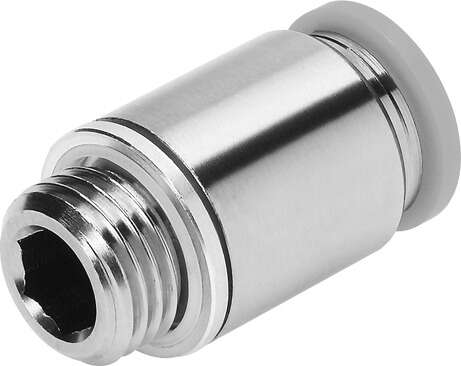

push-in fitting QS-1/2-1/2-I-U-M male thread with internal hexagon socket. Size: Standard, Nominal size: 0,413 ", Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

186338

push-in T-fitting QST-V0-G1/4-6 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 4,3 mm, Material fire test: (* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Type of seal on screw-in stud: Sealing ring, Design structur

Festo

160536

push-in T-connector QST-V0-12 Size: Standard, Nominal size: 8,7 mm, Material fire test: (* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 10 bar

Festo

164959

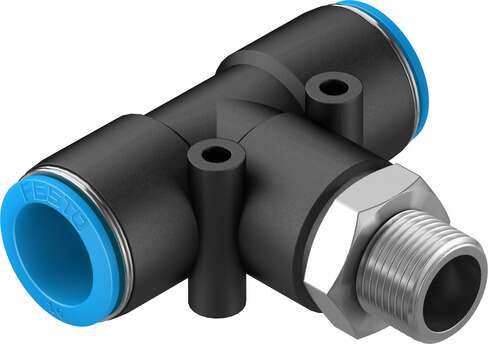

push-in T-fitting QST-3/8-16 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 11 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153276

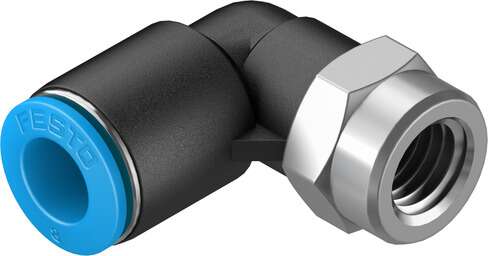

push-in L-fitting QSLF-1/8-8-B 360° orientable, internal thread with external hexagon. Size: Standard, Nominal size: 6 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

186177

push-in T-fitting QSTL-G1/2-12 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 10,3 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1

Festo

130663

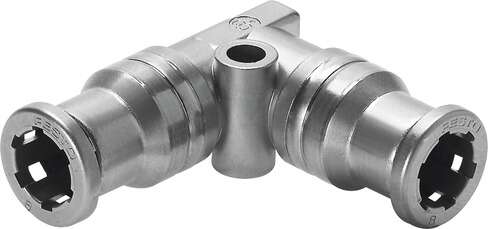

push-in L-connector CRQSL-6 Size: Standard, Nominal size: 3,5 mm, Assembly position: Any, Design: L-shape, Container size: 1

Festo

164207

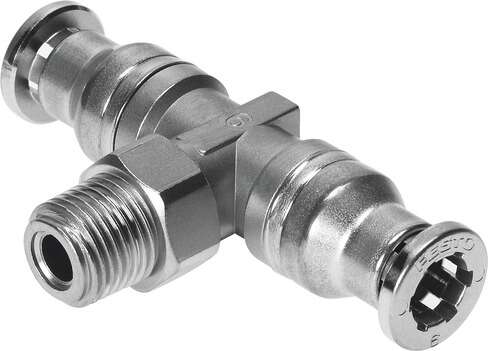

push-in T-fitting CRQST-3/8-12 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 8,1 mm, Assembly position: Any, Design: T-shaped, Container size: 1

Festo
