AC/DC Power Supplies

2903147

Primary-switched TRIO POWER power supply with push-in connection for DIN rail mounting, input: 1-phase, output: 24 V DC/3 A C2LPS

Phoenix Contact

2320911

Primary-switched power supply unit, QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 10 A

Phoenix Contact

2904376

Primary-switched UNO power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/150 W

Phoenix Contact

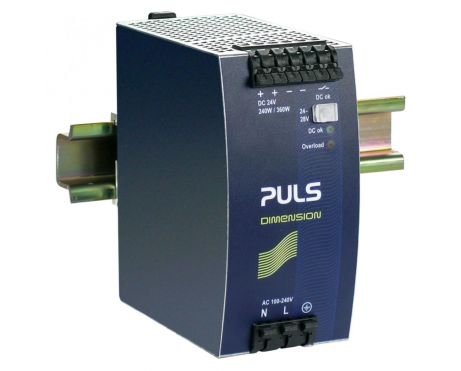

QS10.241

PULS QS10.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 10A at 24Vdc and 9A at 28Vdc, with spring-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, accommodating both single-phase AC or DC networks. The QS10.241 measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing for durability. It delivers a rated power of 240W at 24V and 252W at 28V, with a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. This unit is capable of series or parallel operation for increased output power, with an efficiency up to 93.5% depending on the input voltage. It has a peak current consumption of 10A, with specific start-up and rise times, and maintains power with a hold time of 28ms at 230Vac input. The QS10.241 is designed for electrical durability, offering up to 200,000 hours of operation at 25°C with a 10A output and 1AC 230Vac input, and features a ripple of 50mVpp at 20Hz to 20MHz with an output stage capacitance of 7000µF.

Puls

S8JX-P60024C

S8JXP Switch Mode Power Supply

Omron

2904620

Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/5 A

Phoenix Contact

S8VK-T48024

Power supply: switched-mode; 480W; 24VDC; 20A; 450÷600VDC; DIN

Omron

2902993

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/100 W

Phoenix Contact

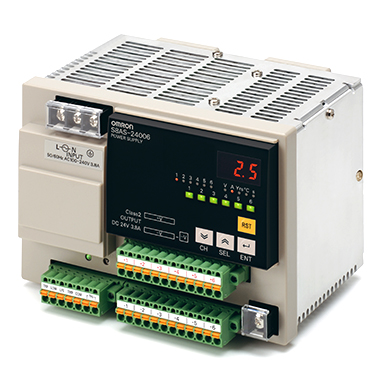

S8AS-24006N

S8AS Smart Power Supply

Omron

S8VK-T96024

S8VK-T Switch Mode Power Supply

Omron

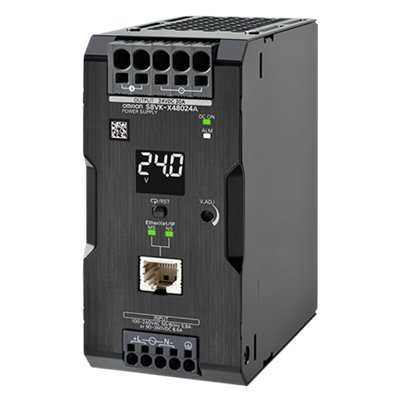

S8VK-X09024A-EIP

S8VK-X Switch Mode Power Supply

Omron

1066703

Primary-switched power supply unit, QUINT POWER, Screw connection, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A

Phoenix Contact

2904607

Primary-switched power supply unit, QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 7.5 A

Phoenix Contact

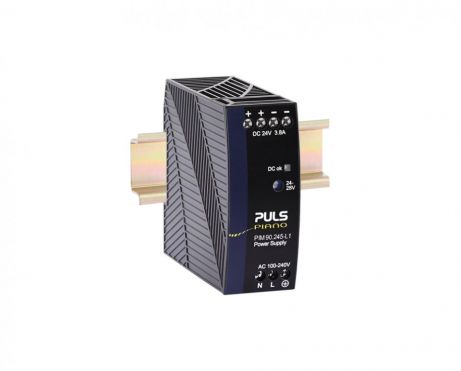

PIM90.245-L1

Power Supply, 90W, AC 100-240V input, 1 phase, 24-28Vdc output, 3.8A, screw terminals

Puls

2902999

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 12 V DC/55 W

Phoenix Contact

HEP-100-24A

AC-DC Single output industrial power supply with PFC; Output 24Vdc at 4A; Vo-Io adjust with Potentiometer; Withstand up to 10G Vibration

MEAN WELL

2903155

Primary-switched TRIO POWER power supply with push-in connection for DIN rail mounting, input: 3-phase, output: 24 V DC/20 A

Phoenix Contact

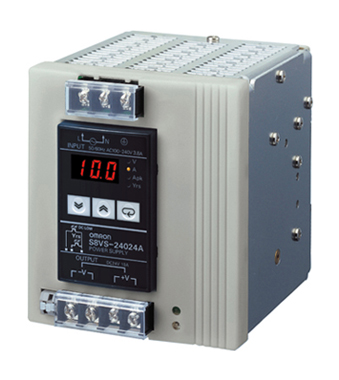

S8VS-12024BP

S8VS Switch Mode Power Supply

Omron

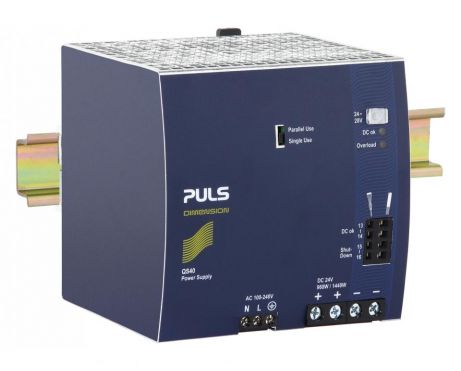

QS40.241

PULS QS40.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and has ATEX approval. The unit provides a rated current of 40A at 24Vdc and 34.3A at 28Vdc, with screw-clamp connections for installation. It supports a supply voltage range of 85Vac-264Vac across various nominal voltages and frequencies, with specific turn-ON and shutdown voltages. Part of the Q-series, it measures 125mm in width, 124mm in height, and 127mm in depth, housed in aluminium. Designed for single-phase networks, it offers a rated power of 960W, extendable to 1440W for short-term applications, and an adjustable output voltage between 24Vdc and 28Vdc. The unit includes protection against overvoltage, with active input inrush current limitation and overload/short-circuit protection. It allows for series or parallel operation for increased output power, with specific conditions for back-feeding loads. The efficiency rates vary with input voltage, and it features specific current consumption, time delay, and hold time values. Power dissipation/losses are detailed alongside electrical durability metrics under various conditions. The output ripple is specified at 100mVpp, with an output stage capacitance of 10200µF.

Puls

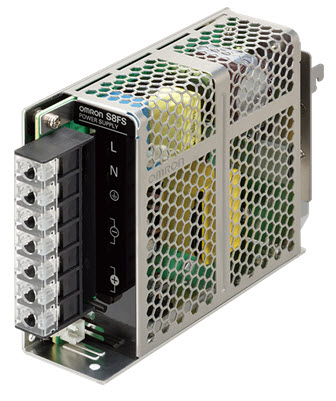

S8FS-G01515CD

S8FS-G Switch Mode Power Supply

Omron
