AC/DC Power Supplies

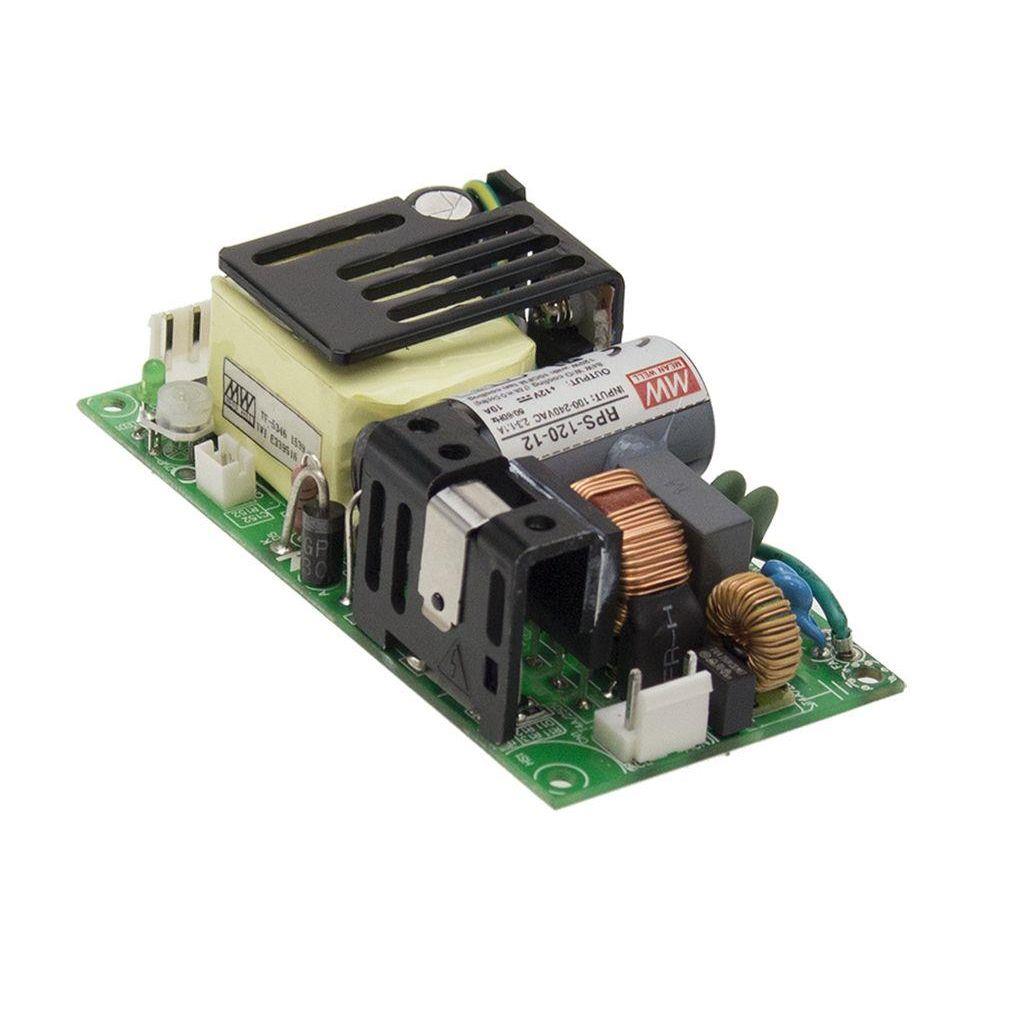

RPS-120-27

AC-DC Open frame Medical power supply; Output 27VDC at 3.15A; EN60601 2xMOPP; compact size 4 inch x 2 inch

MEAN WELL

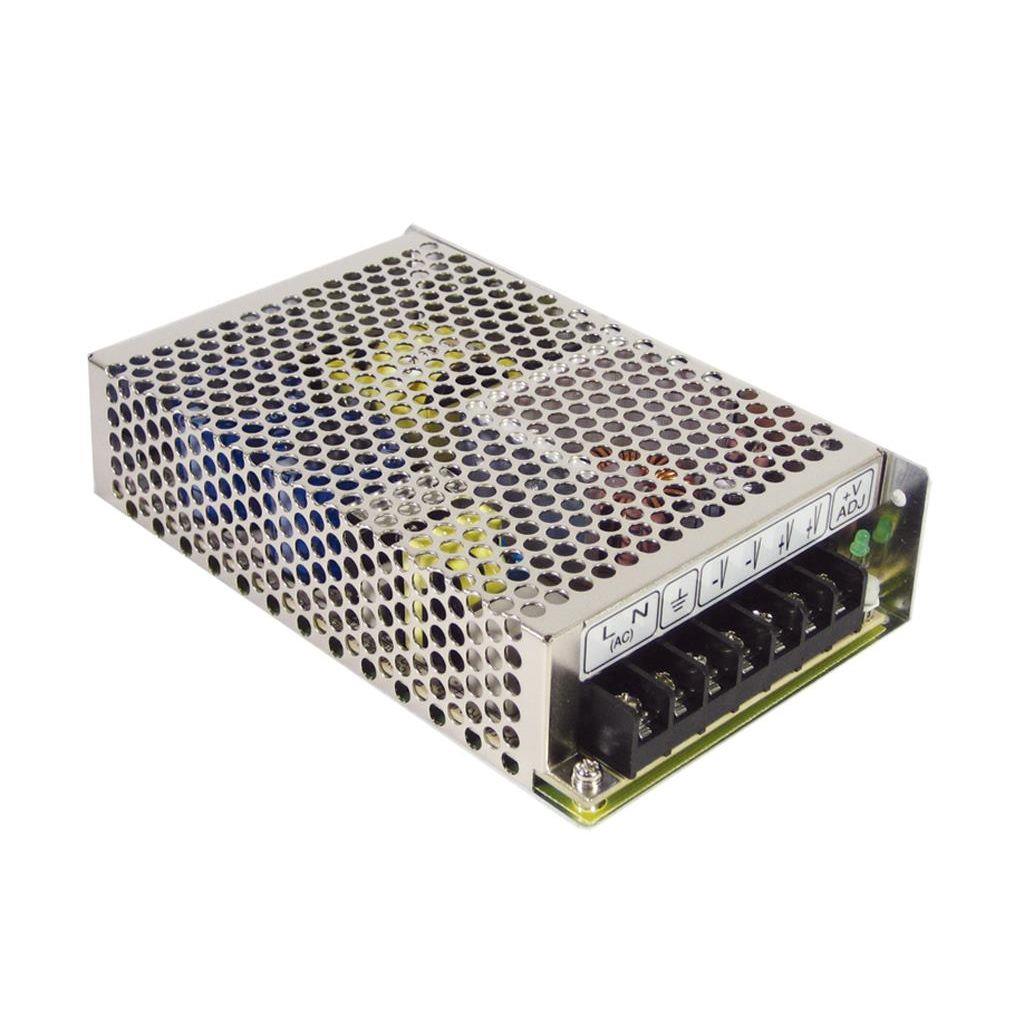

RD-85B

AC-DC Dual output enclosed power supply; Output 5Vdc at 10A +24Vdc at 2.5A; free air convection

MEAN WELL

CS10.481

PULS CS10.481 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 60mm and dimensions of W60mm x H124mm x D117mm. It features a current consumption of 2.23A with a 230Vac input for full 48Vdc output, 3.73A with a 120Vac input, and 4.34A with a 100Vac input, alongside a peak max. inrush of 10A across all input voltages. The efficiency rates are 0.916 for 230Vac input, 0.91 for 120Vac input, and 0.907 for 100Vac input. The CS10.481 has a start-up delay of 850ms and rise times of 51ms and 96ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit current protection, with capabilities for series/parallel operation for redundancy. The unit is resistant to back-feeding loads up to 63V. Power dissipation/losses are 22W for 230Vac input and 23.7W for 120Vac input, with an output stage capacitance of 3100µF. Electrical durability varies with conditions, reaching up to 346000 hours. The ripple is specified at 100mVpp. This AC/DC power supply unit, part of the C-Line series, offers a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac with auto select and has a rated current of 6A at 48Vdc for ambient temperatures less than 45°C. The output voltage is adjustable between 48Vdc and 52Vdc, with a hold time of 47ms at 230Vac input.

Puls

RID-125-1248

AC-DC Dual output enclosed power supply; Output 12Vdc at 7A +48Vdc at 2.5A; isolated outputs; free air convection

MEAN WELL

RCP-1000-12

AC-DC 19 inch rack power supply with PFC; Output 12VDC at 60A; 1U profile; Current sharing up to 3KW; Hot-swap; Built-in OR-ing diode; 5VDC Vsb

MEAN WELL

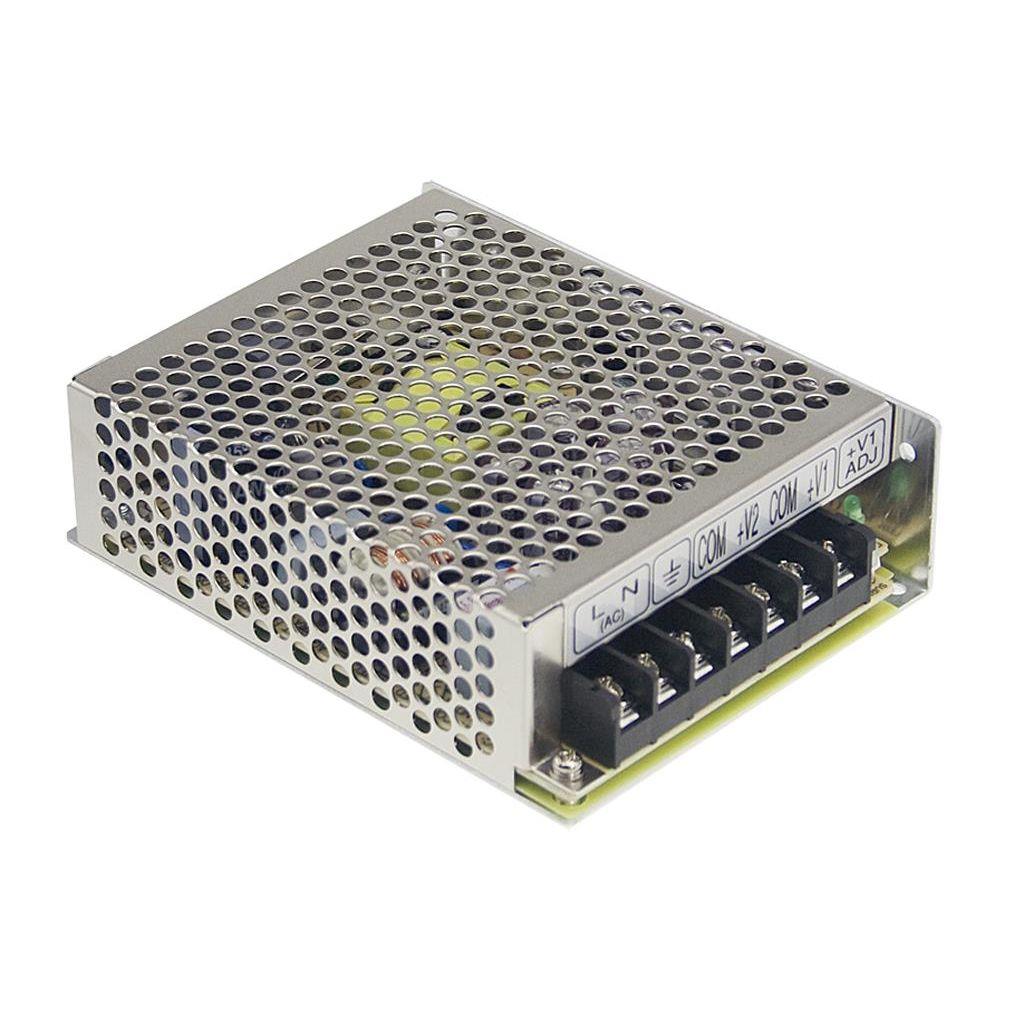

RD-50B

AC-DC Dual output enclosed power supply; Output 5Vdc at 6A +24Vdc at 2A; free air convection

MEAN WELL

TDR-960-48

AC-DC Industrial 3-phase DIN rail power supply; Output 48Vdc at 20A; metal case; 2 phase operation possible; current sharing 3+1

MEAN WELL

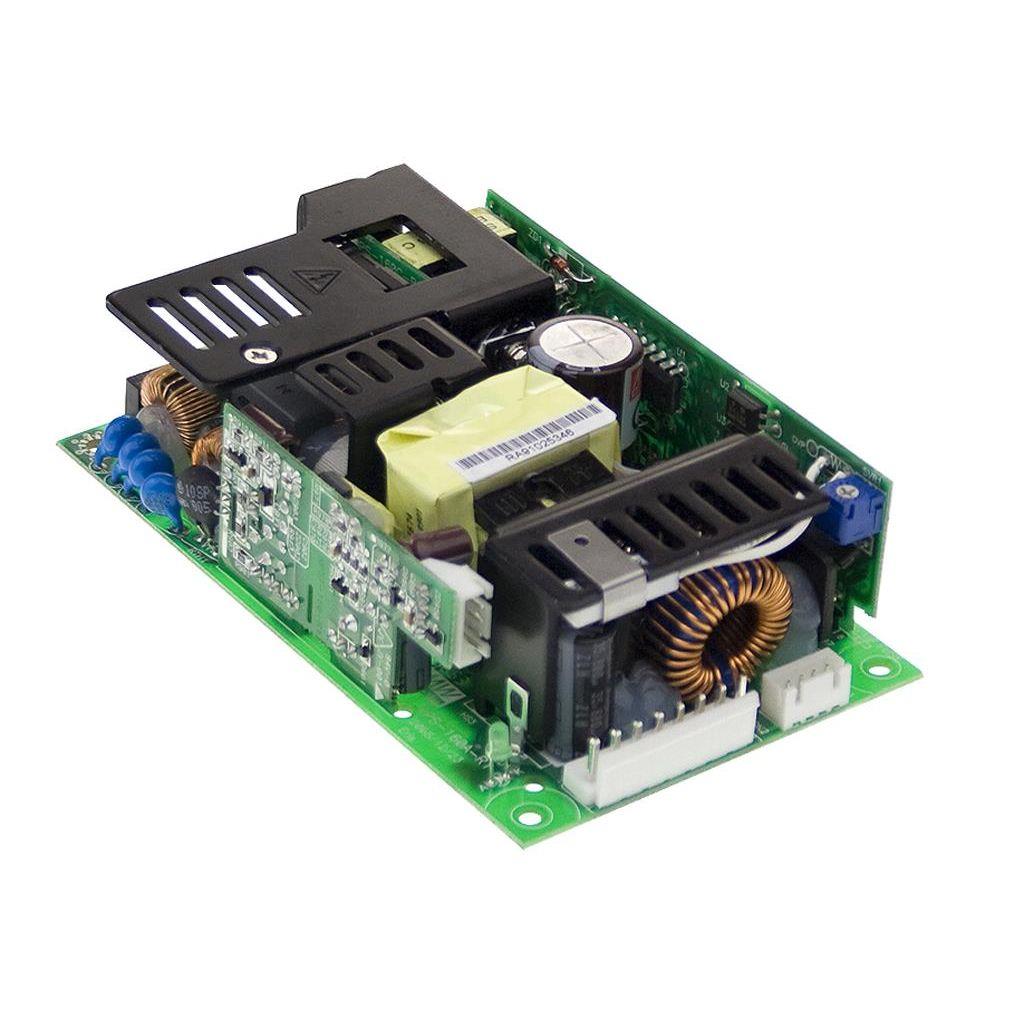

RPS-160-5

AC-DC Open frame Medical power supply; Output 5Vdc at 20A; EN60601 2xMOPP; compact size 5 x 3 inch

MEAN WELL

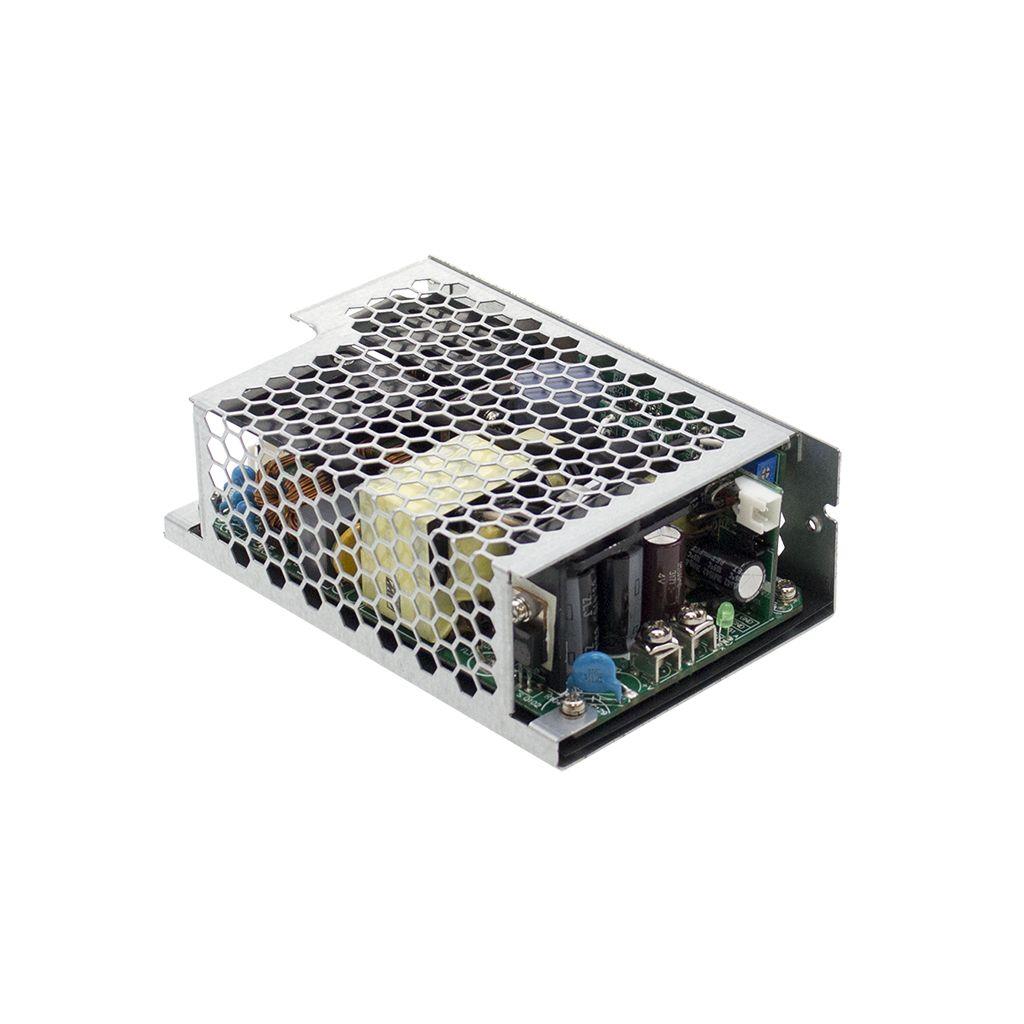

RPS-300-24-C

AC-DC Enclosed Medical power supply; Output 24Vdc at 12.5A; EN60601 2xMOPP; with case

MEAN WELL

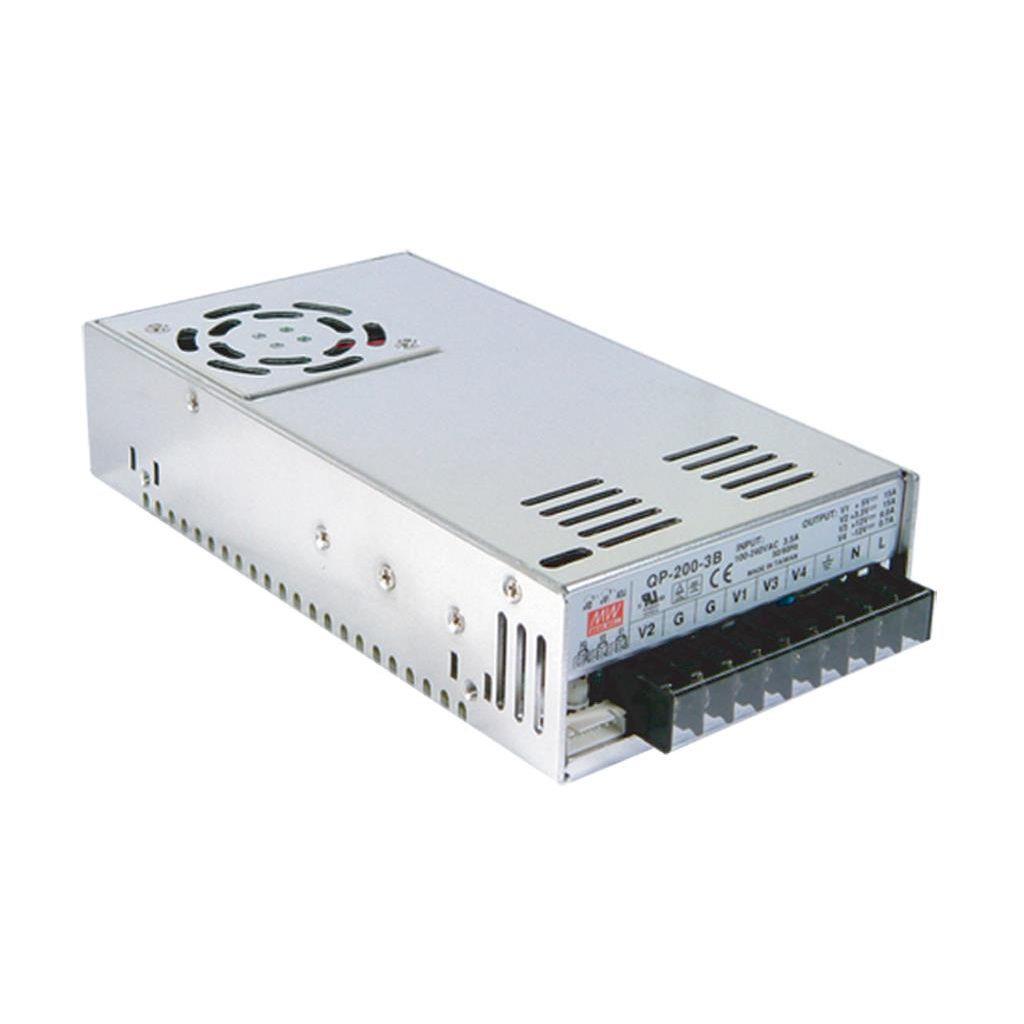

QP-200-3C

AC-DC Quad output enclosed power supply; Output 5Vdc at 20A +3.3Vdc at 20A +15Vdc at 7A -15Vdc at 1A; QP-200-3C is succeeded by UMP-400-24.

MEAN WELL

RPS-200-27

AC-DC Open frame Medical power supply; Output 27Vdc at 5.3A; EN60601 2xMOPP; compact size 4 x 2 inch

MEAN WELL

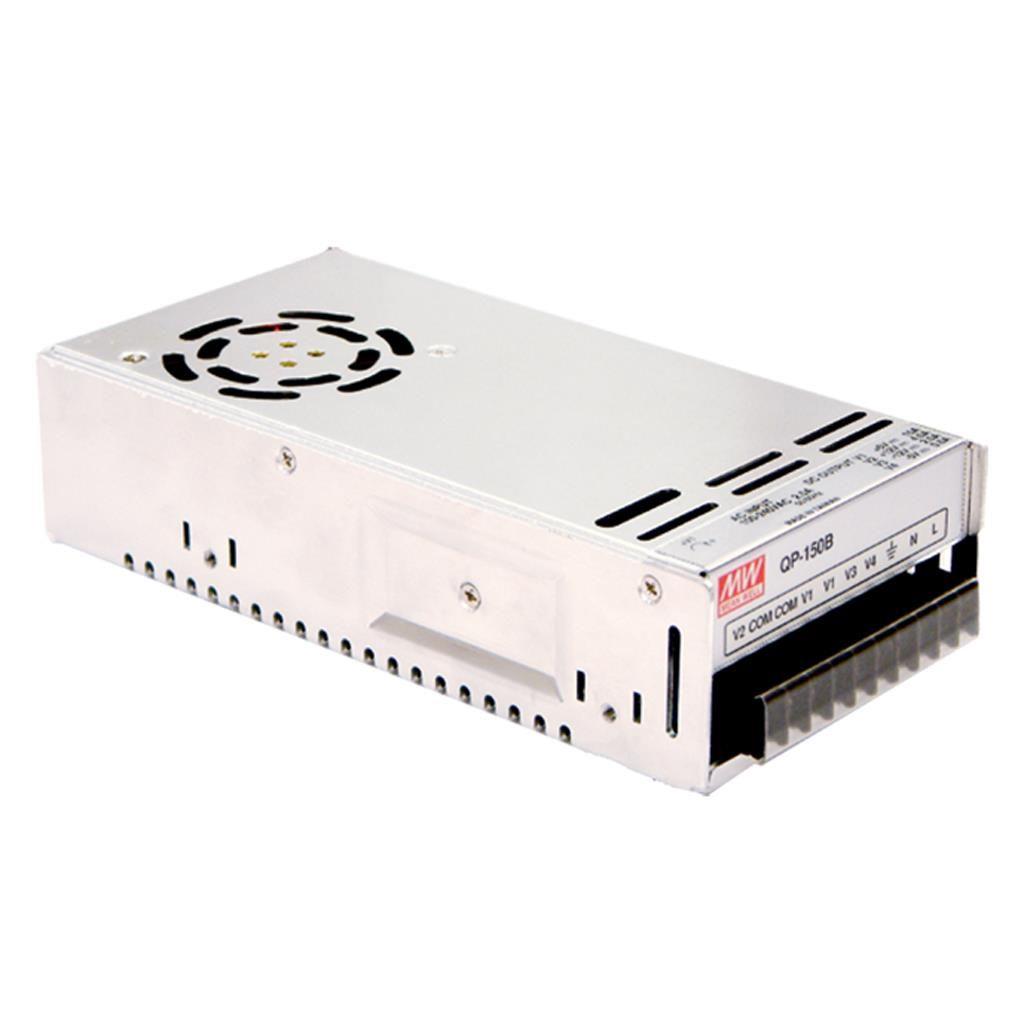

QP-150D

AC-DC Quad output enclosed power supply; Output 5Vdc at 15A +12Vdc at 5A +24Vdc at 3A -12Vdc at 1A

MEAN WELL

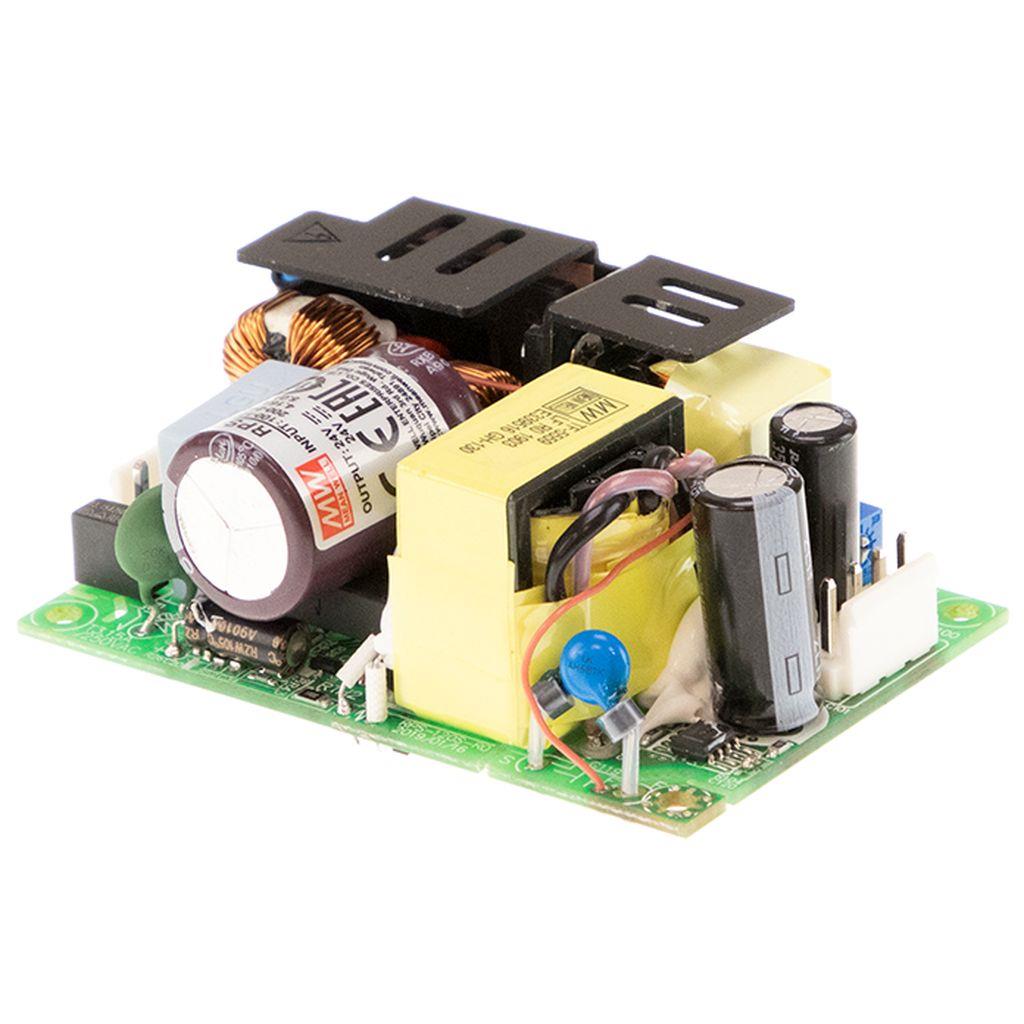

RPS-120S-27

AC-DC Open frame Medical power supply; Output 27VDC at 4.44A; EN60601 2xMOPP; compact size 3x2 inch

MEAN WELL

RD-85A

AC-DC Dual output enclosed power supply; Output 5Vdc at 10A +12Vdc at 5A; free air convection

MEAN WELL

SCP-35-12

AC-DC Enclosed power supply; Output 13.8Vdc at 2.6A; battery charger output; battery temperature compensation

MEAN WELL

RPS-120-48-C

AC-DC Open frame Medical power supply; Output 48VDC at 1.75A; EN60601 2xMOPP; compact size 4 inch x 2 inch; with case

MEAN WELL

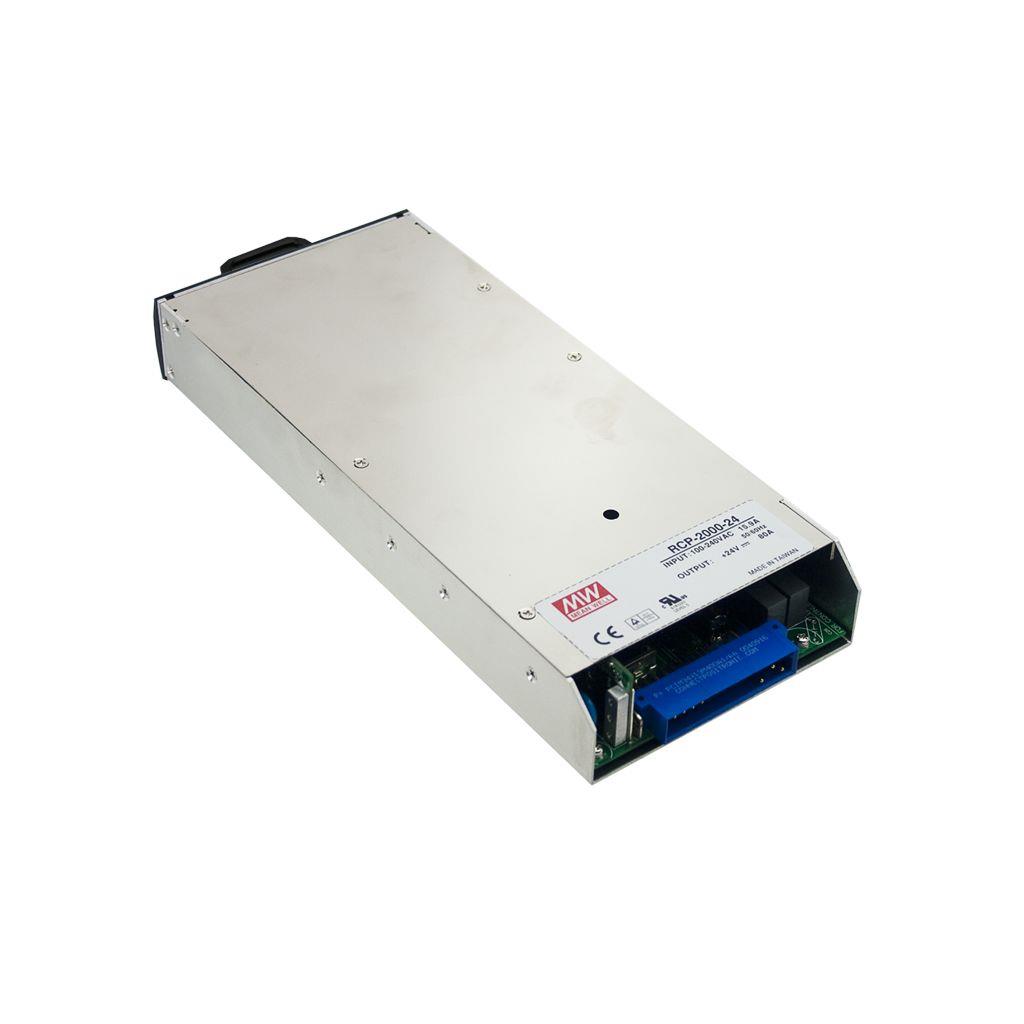

RCP-2000-12

AC-DC 19 inch rack power supply with PFC; Output 12VDC at 100A; 1U profile; Current sharing up to 6KW; Hot-swap; PMBus protocol; 5VDC Vsb

MEAN WELL

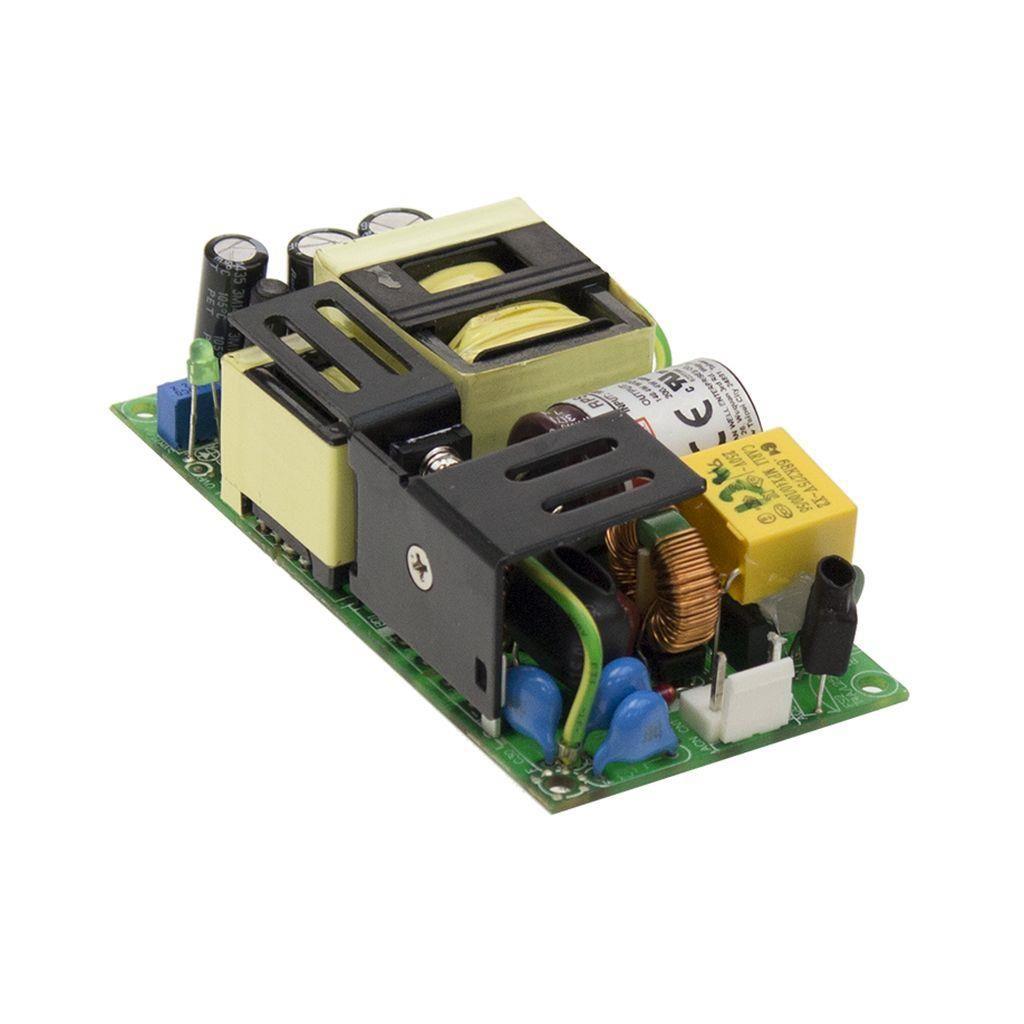

RPD-60B

AC-DC Dual output Medical Open frame power supply; Output 5Vdc at 3.85A +24Vdc at 1.65A; 2xMOPP; compact size 4 x 2 inch

MEAN WELL

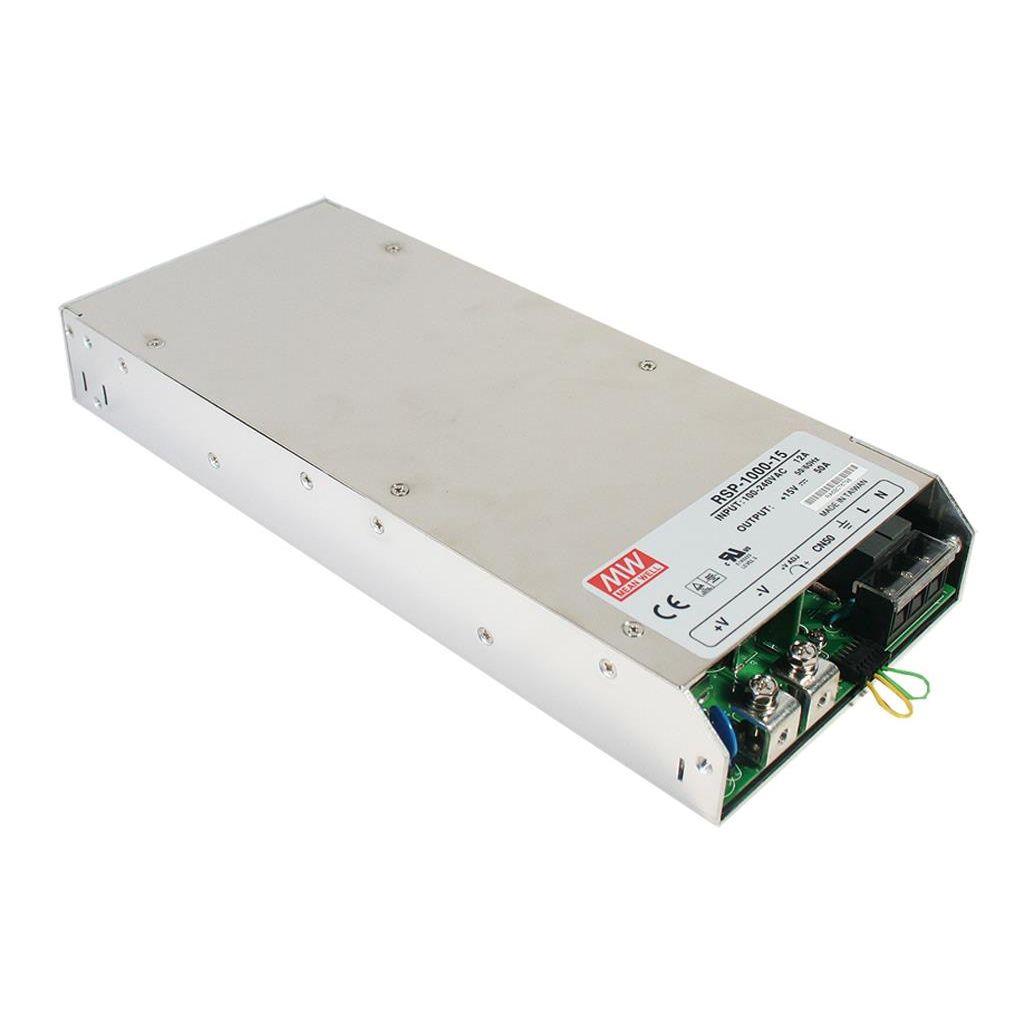

RSP-1000-15

AC-DC Single Output Enclosed power supply; Output 15VDC Single Output at 50A; PFC; forced air cooling

MEAN WELL

MDR-100-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 2A; plastic case

MEAN WELL
