AC/DC Power Supplies

RS-15-24

AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 0.7A; free air convection

MEAN WELL

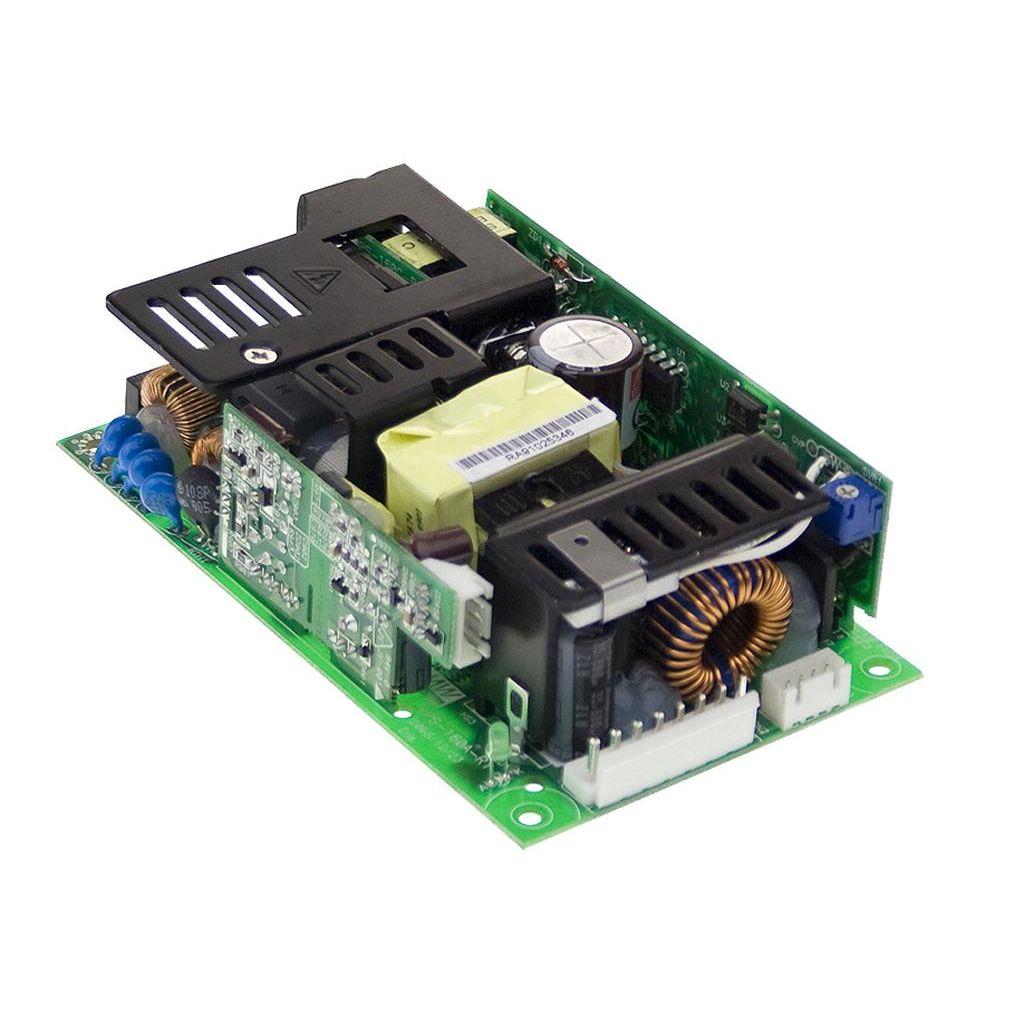

RPT-160D

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 11A +12Vdc at 5A +24Vdc at 1.2A; 2xMOPP; compact size 5 x 3 inch

MEAN WELL

ML15.051

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

Puls

RPT-6003

AC-DC Triple output Medical Open frame power supply; Output 3.3Vdc at 5.5A +5Vdc at 3.3A +12Vdc at 0.77A; 2xMOPP; compact size 4 x 2 inch

MEAN WELL

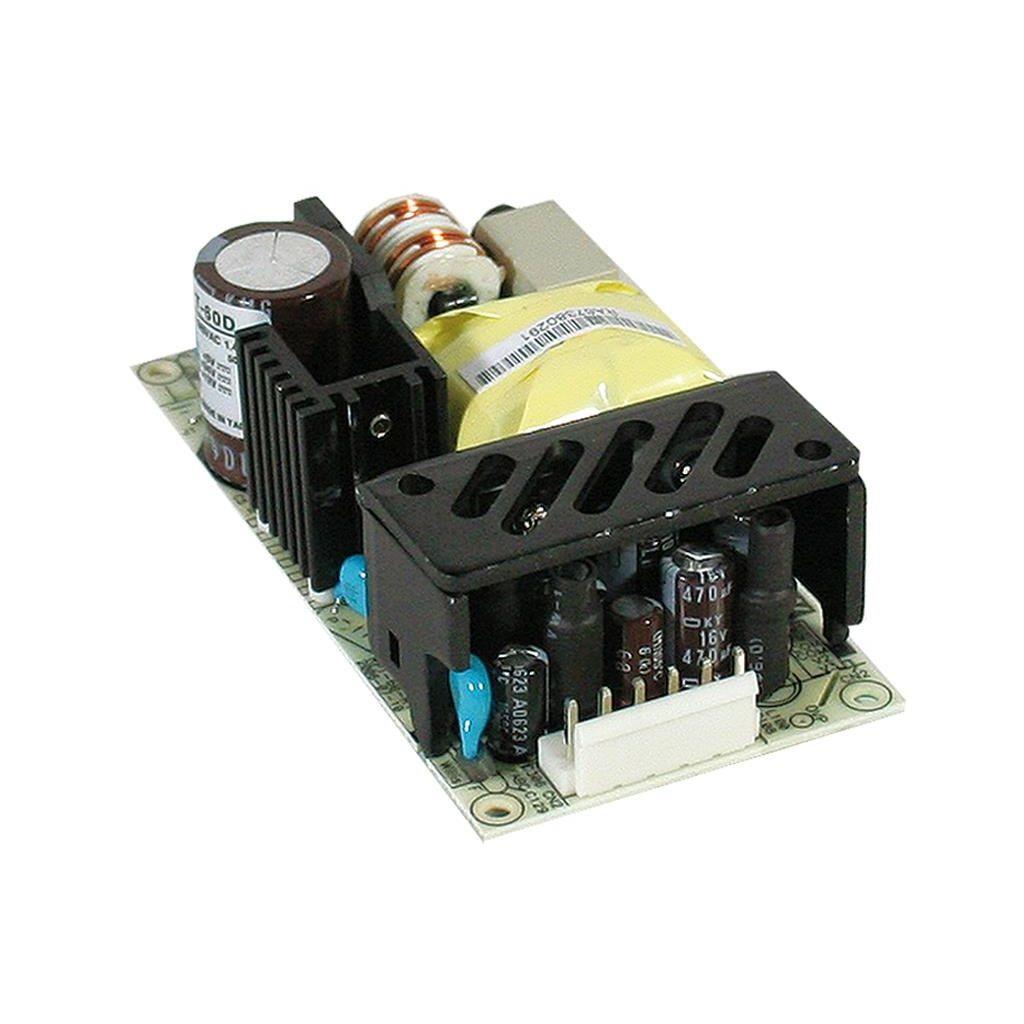

RPT-60D

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 3.85A +24Vdc at 1.1A +12Vdc at 0.55A; 2xMOPP; compact size 4 x 2 inch

MEAN WELL

RPSG-160-48

AC-DC Open frame Medical power supply; Output 48Vdc at 3.25A; EN60601 2xMOPP; with 5V stand-by

MEAN WELL

RPT-160C

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 14A +15Vdc at 3.6A -15Vdc at 1A; 2xMOPP; compact size 5 x 3 inch

MEAN WELL

RSP-2000-24

AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 80A; PFC; forced air cooling

MEAN WELL

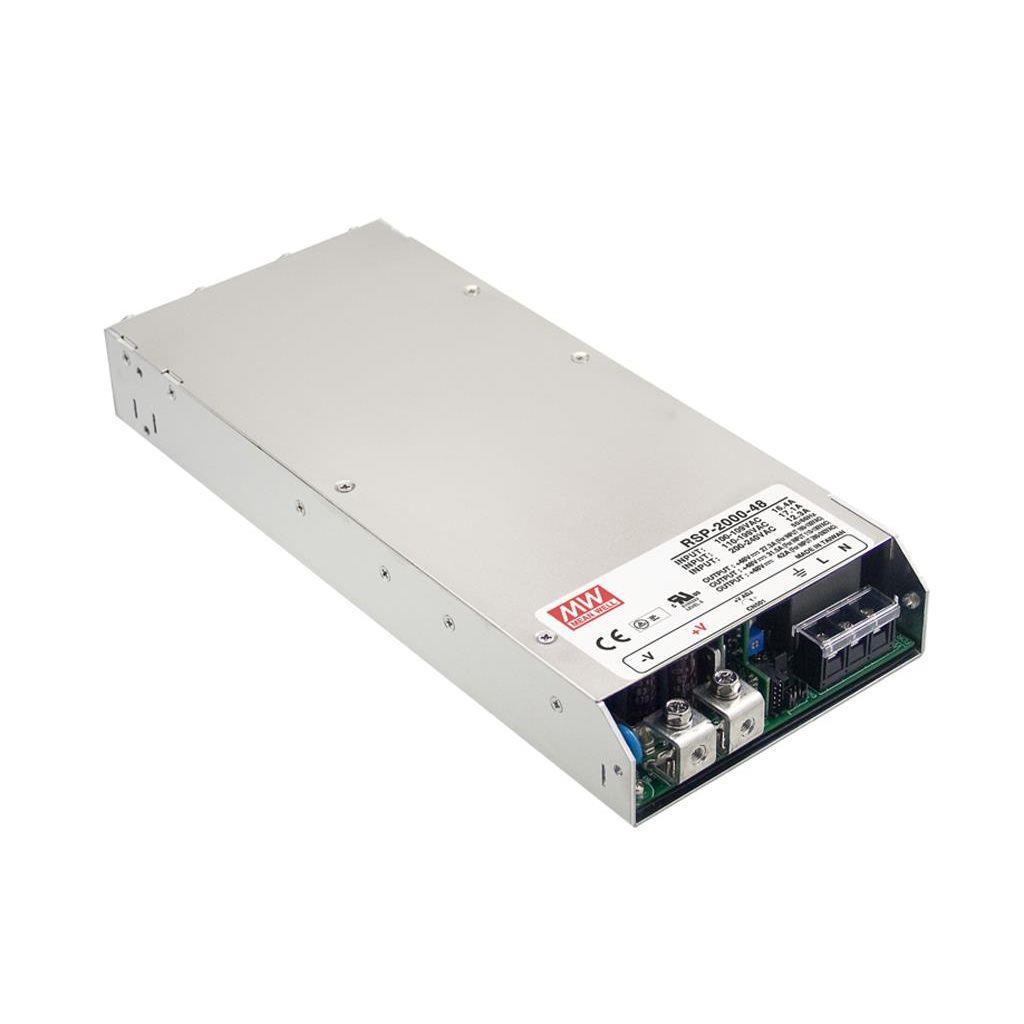

RSP-2000-48

AC-DC Single Output Enclosed power supply; Output 48VDC Single Output at 42A; PFC; forced air cooling

MEAN WELL

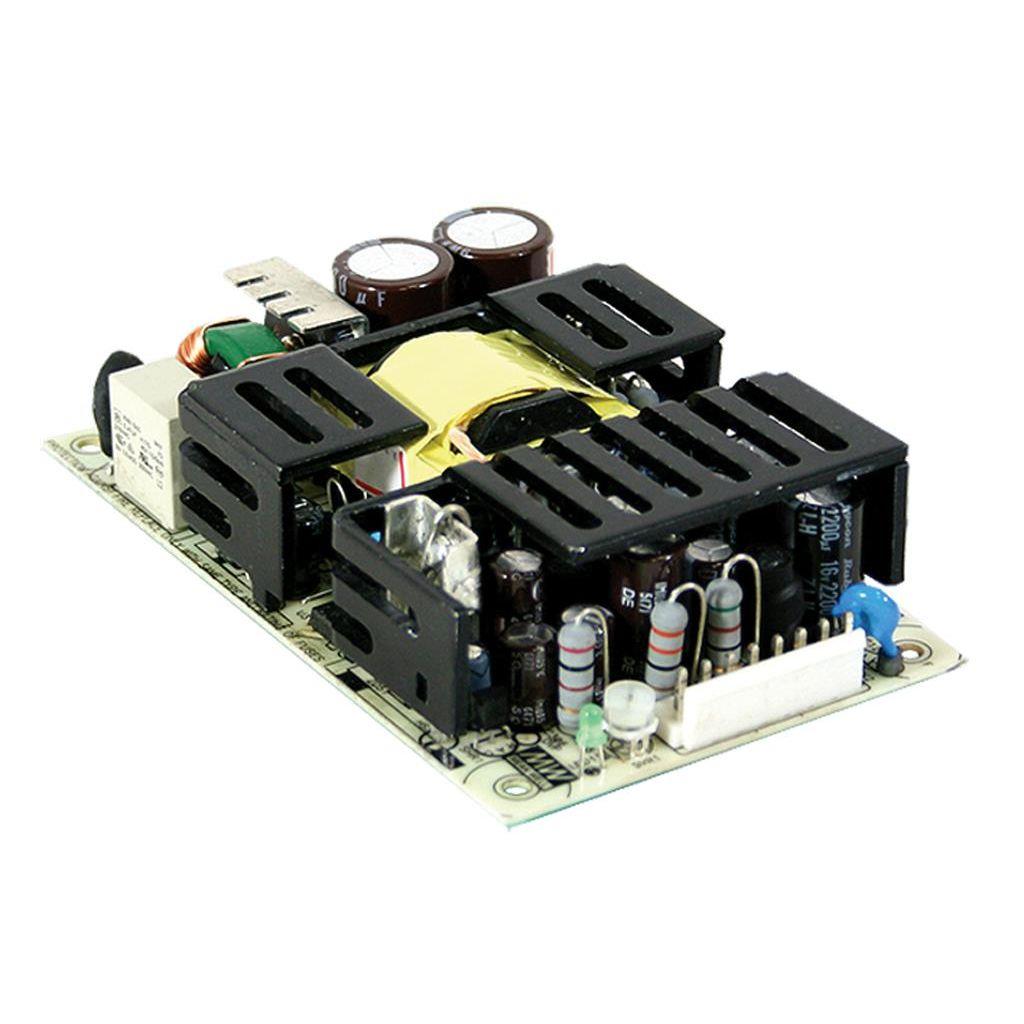

RPT-75C

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 8A +15Vdc at 3A -15Vdc at 1A; 2xMOPP

MEAN WELL

SDR-960-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 20A; Metal casing; Ultra slim width 110mm; Parallel function

MEAN WELL

RPSG-160-12

AC-DC Open frame Medical power supply; Output 12Vdc at 12.9A; EN60601 2xMOPP; with 5V stand-by

MEAN WELL

RQ-85B

AC-DC Quad output enclosed power supply; Output 5Vdc at 10A +12Vdc at 4A -5Vdc at 1A -12Vdc at 1A

MEAN WELL

RPTG-160B-C

AC-DC Triple output Medical Enclosed power supply; Output 5Vdc at 14A +12Vdc at 5A -12Vdc at 1A; 2xMOPP; compact size 5 x 3 inch; 5Vsb

MEAN WELL

CS10.481

PULS CS10.481 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 60mm and dimensions of W60mm x H124mm x D117mm. It features a current consumption of 2.23A with a 230Vac input for full 48Vdc output, 3.73A with a 120Vac input, and 4.34A with a 100Vac input, alongside a peak max. inrush of 10A across all input voltages. The efficiency rates are 0.916 for 230Vac input, 0.91 for 120Vac input, and 0.907 for 100Vac input. The CS10.481 has a start-up delay of 850ms and rise times of 51ms and 96ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit current protection, with capabilities for series/parallel operation for redundancy. The unit is resistant to back-feeding loads up to 63V. Power dissipation/losses are 22W for 230Vac input and 23.7W for 120Vac input, with an output stage capacitance of 3100µF. Electrical durability varies with conditions, reaching up to 346000 hours. The ripple is specified at 100mVpp. This AC/DC power supply unit, part of the C-Line series, offers a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac with auto select and has a rated current of 6A at 48Vdc for ambient temperatures less than 45°C. The output voltage is adjustable between 48Vdc and 52Vdc, with a hold time of 47ms at 230Vac input.

Puls

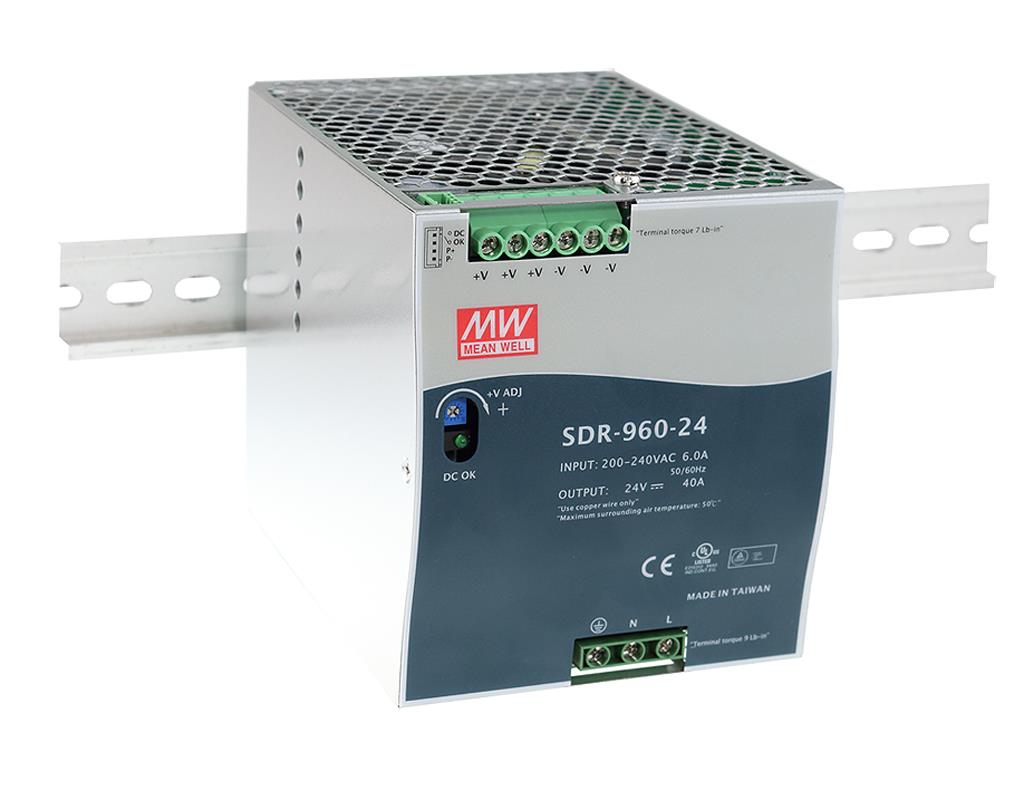

SDR-960-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 40A; Metal casing; Ultra slim width 110mm; Parallel function

MEAN WELL

TDR-960-48

AC-DC Industrial 3-phase DIN rail power supply; Output 48Vdc at 20A; metal case; 2 phase operation possible; current sharing 3+1

MEAN WELL

RQ-50D

AC-DC Quad output enclosed power supply; Output 5Vdc at 6A +12Vdc at 1.5A +24Vdc at 1A -24Vdc at 1A

MEAN WELL

SCP-35-12

AC-DC Enclosed power supply; Output 13.8Vdc at 2.6A; battery charger output; battery temperature compensation

MEAN WELL

MDR-100-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 2A; plastic case

MEAN WELL
