16166590 WEG AC Motors
Part#:16166590
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

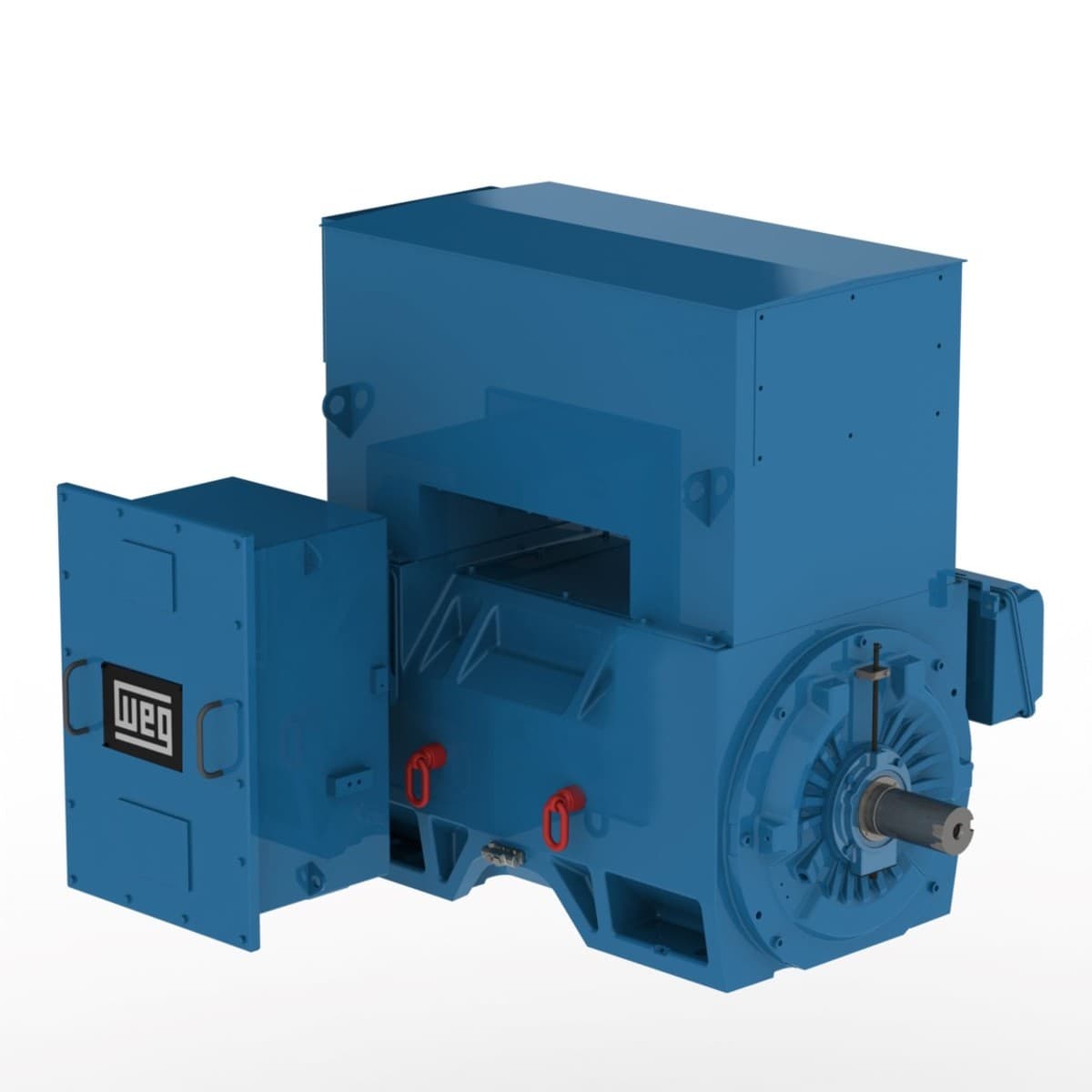

W60 Standard Efficiency 700 HP 4P 5010/11 3Ph 460 V 60 Hz - Foot-mounted
Check out the 16166590 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 1.00 %
- Locked rotor torque 100 %
- Frequency 60 Hz
- Moment of inertia (J) 180 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 700 HP
- Noise level² 82.0 dB(A)
- Frame 5010/11
- Temperature rise 80 K
- Standard NEMA MG-1
- LRC 6.5x(Code G)
- Degree of Protection IP24
- Voltage 460 V
- Rated current 790 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Number of Poles 4
- Duty Cycle Cont.(S1)
- Number of poles 4
- Rated speed 1782 rpm
- Locked rotor time 41s (cold) 23s (hot)
- Starting Method Direct On Line
- Flange Without
- Rated voltage 460 V
- Service factor 1.00
- Mounting F-1
- Synchronous speed 1800 rpm
- Output 700 HP (515 kW)
- No load current 226 A
- Rated torque 2060 ft.lb
- Approx. weight³ 5336 lb
- L. R. Amperes 5136 A
- Breakdown torque 220 %
- Rotation¹ CW
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
