16166548 WEG AC Motors
Part#:16166548
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

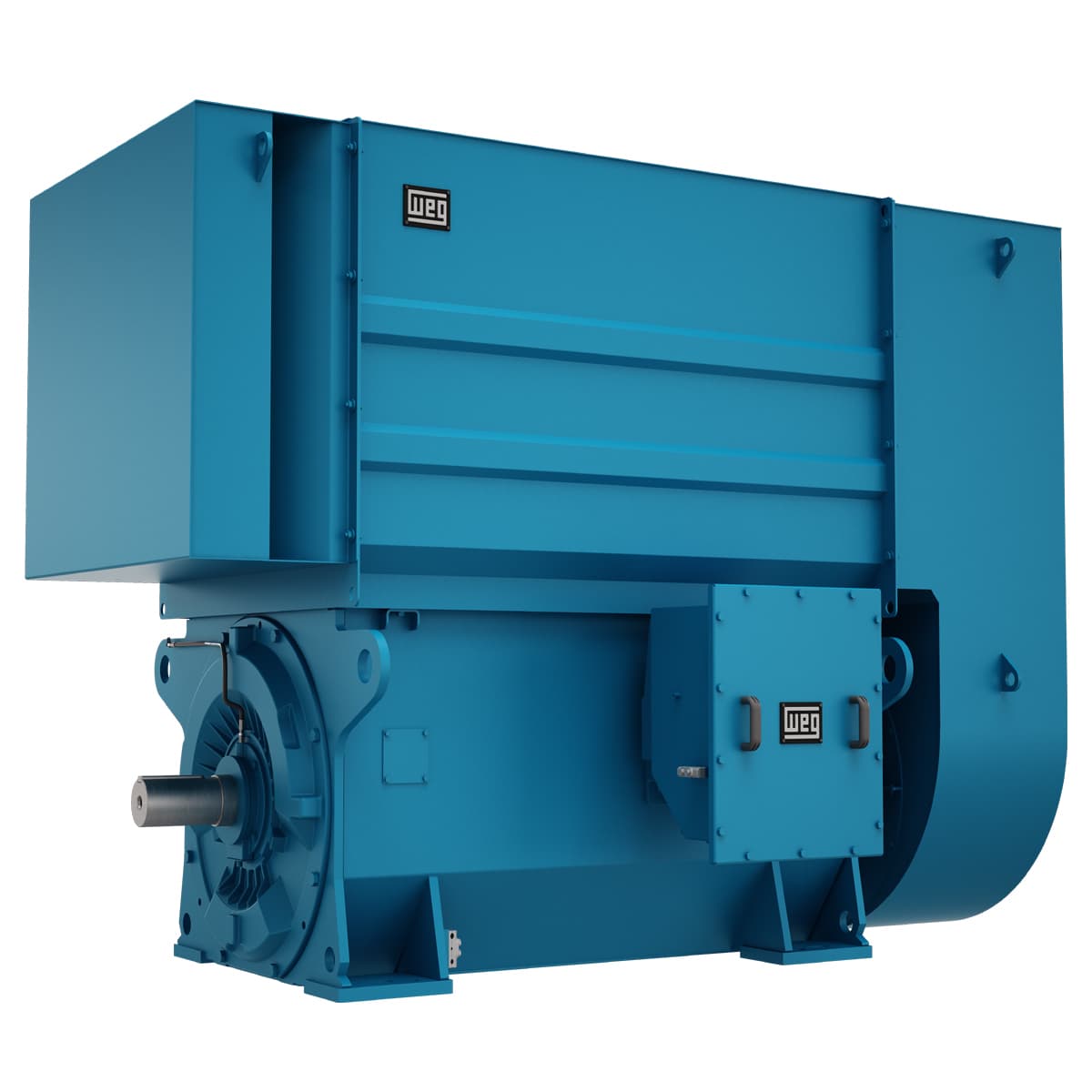

W60 Standard Efficiency 1350 HP 2P 5810/11 3Ph 690 V 60 Hz - Foot-mounted
Check out the 16166548 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 981 A
- Number of Poles 2
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Rotation¹ CW
- Frame 5810/11
- Breakdown torque 250 %
- LRC 6.5x(Code G)
- Standard NEMA MG-1
- Output 1350 HP (1000 kW)
- Rated torque 1990 ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 1350 HP
- Rated voltage 690 V
- Moment of inertia (J) 90.6 sq.ft.lb
- Mounting F-1
- Flange Without
- Slip 0.89 %
- Locked rotor time 14s (cold) 8s (hot)
- Service factor 1.00
- Voltage 690 V
- Locked rotor torque 100 %
- Degree of Protection IP24
- No load current 330 A
- Temperature rise 80 K
- Noise level² 85.0 dB(A)
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- L. R. Amperes 6377 A
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Rated speed 3568 rpm
- Insulation Class F
- Approx. weight³ 5821 lb
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 16166548 Specs
