12536OP3JFP404TS-W40 WEG AC Motors
Part#:12536OP3JFP404TS-W40
Manufacturer:WEG
Alt. Part#:7909323928875
Product Lifecycle:Active
Get a quick Quote!

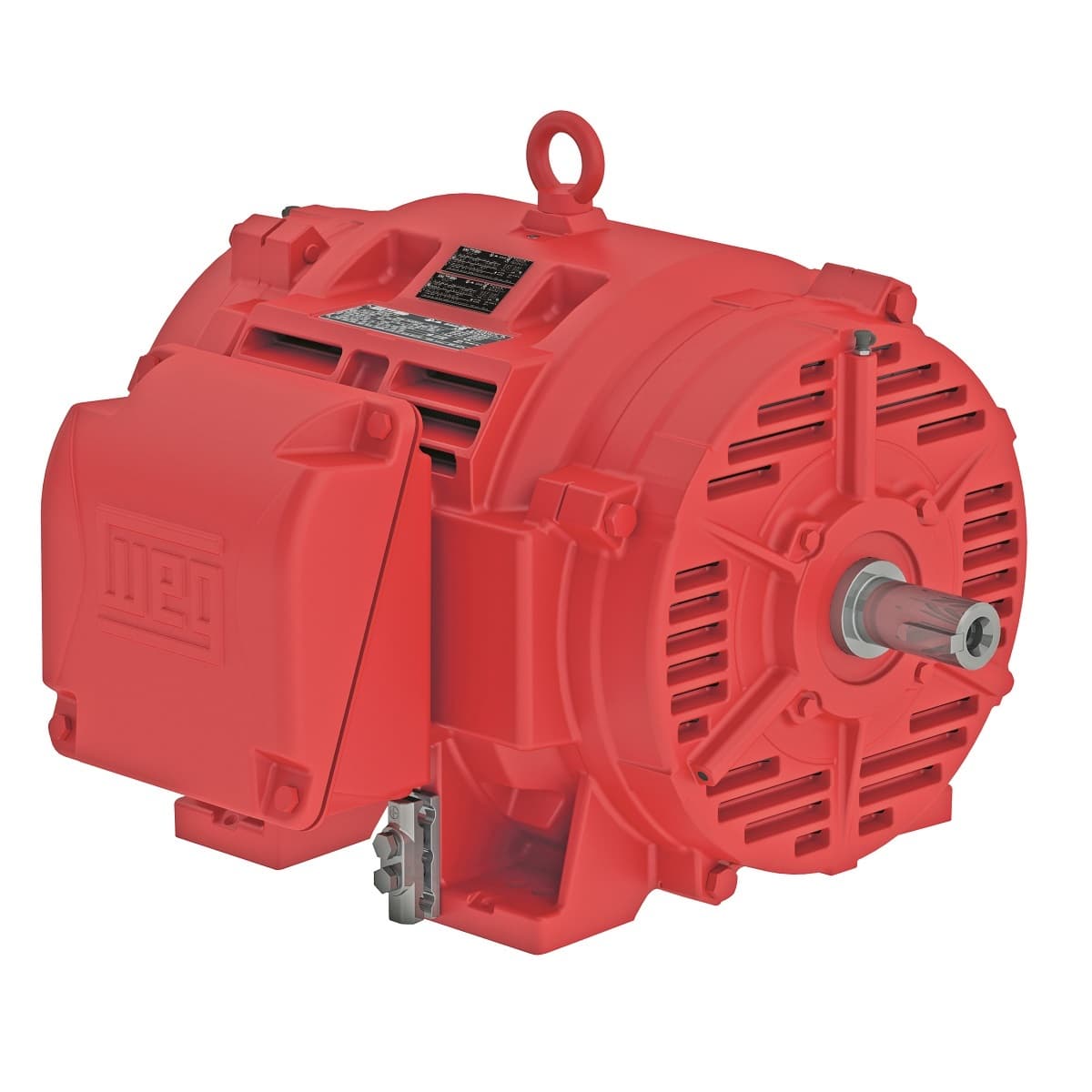

W40 High Efficiency 125 HP 2P 404/5TS 3Ph 380 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12536OP3JFP404TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- L. R. Amperes 1095 A
- No load current 36.3 A
- Design B
- Rotation¹ Both (CW and CCW)
- Rated current 166 A
- Rated torque 185 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Slip 1.53 %
- Degree of Protection IP23
- Output rating 125 HP
- Rated speed 3545 rpm
- Breakdown torque 229 %
- Temperature rise 80 K
- Number of poles 2
- Output 125 HP
- Locked rotor torque 180 %
- Ambient temperature -20°C to +40°C
- Noise level² 84.0 dB(A)
- Frequency 60 Hz
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Rated voltage 380 V
- LRC 6.6x(Code G)
- Starting Method Direct On Line
- Voltage 380 V
- Flange Without
- Moment of inertia (J) 8.03 sq.ft.lb
- Enclosure IC01 - ODP
- Frame 404/5TS
- Insulation Class F
- Approx. weight³ 861 lb
- Number of Poles 2
- Locked rotor time 27s (cold) 15s (hot)
- Service factor 1.15
- Mounting F-1
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12536OP3JFP404TS-W40 Specs
