12536ET3H444TS-W22G WEG AC Motors
Part#:12536ET3H444TS-W22G
Manufacturer:WEG
Alt. Part#:7909492019565
Product Lifecycle:Active
Get a quick Quote!

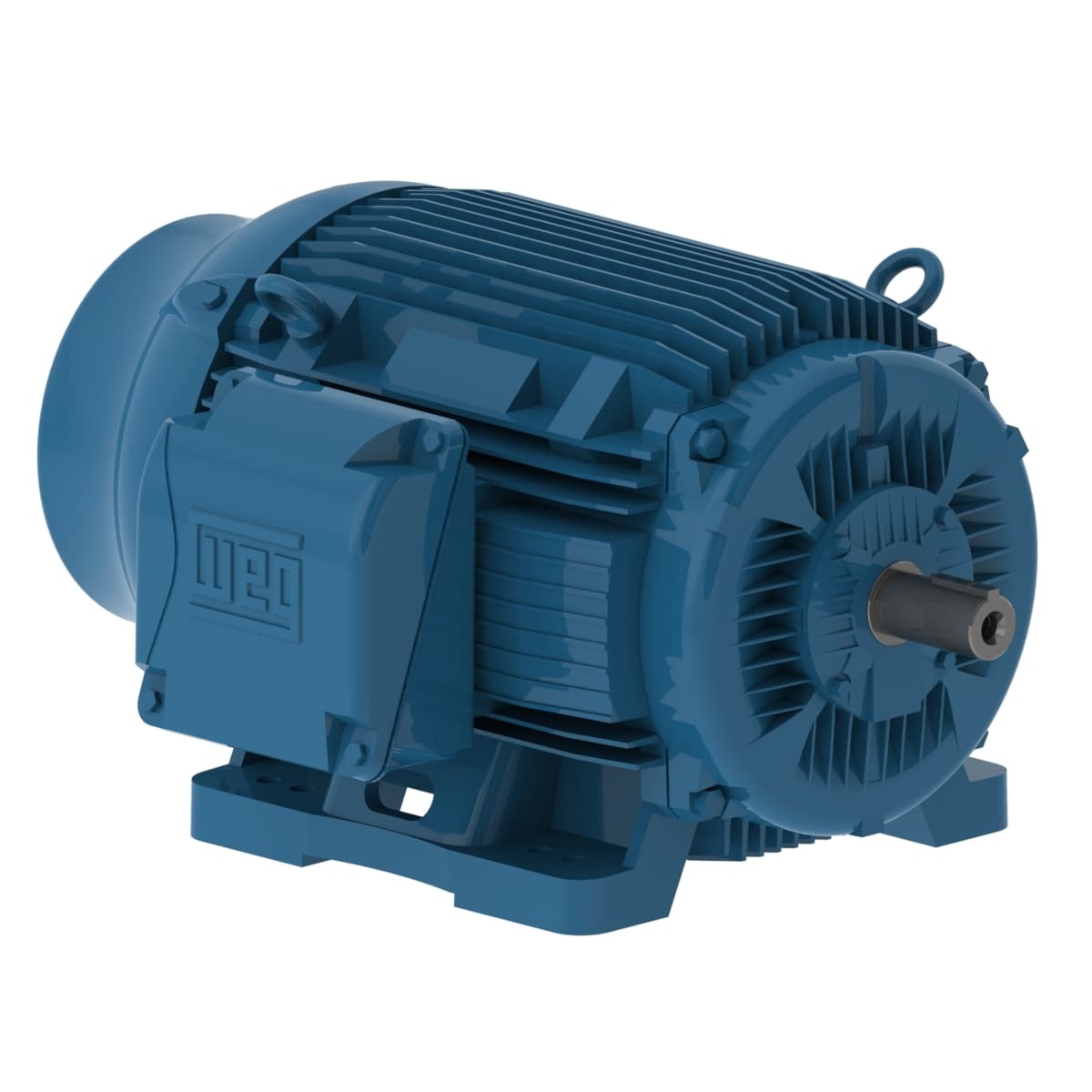

W22 NEMA Premium Efficiency 125 HP 2P 444/5TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12536ET3H444TS-W22G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated speed 3570 rpm
- Altitude 1000 m.a.s.l.
- Approx. weight³ 1599 lb
- Frame 444/5TS
- Insulation Class F
- Mounting F-1
- Output rating 125 HP
- Number of Poles 2
- Rated voltage 575 V
- Moment of inertia (J) 33.5 sq.ft.lb
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Number of poles 2
- L. R. Amperes 708 A
- Design B
- Noise level² 81.0 dB(A)
- Slip 0.83 %
- Rated torque 184 ft.lb
- Locked rotor time 52s (cold) 29s (hot)
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Rated current 107 A
- Frequency 60 Hz
- No load current 27.2 A
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Voltage 575 V
- Terminal box¹ Left position
- Flange Without
- LRC 6.6x(Code G)
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output 125 HP
- Breakdown torque 250 %
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12536ET3H444TS-W22G Specs
1-year warranty
