10566845 WEG AC Motors
Part#:10566845
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

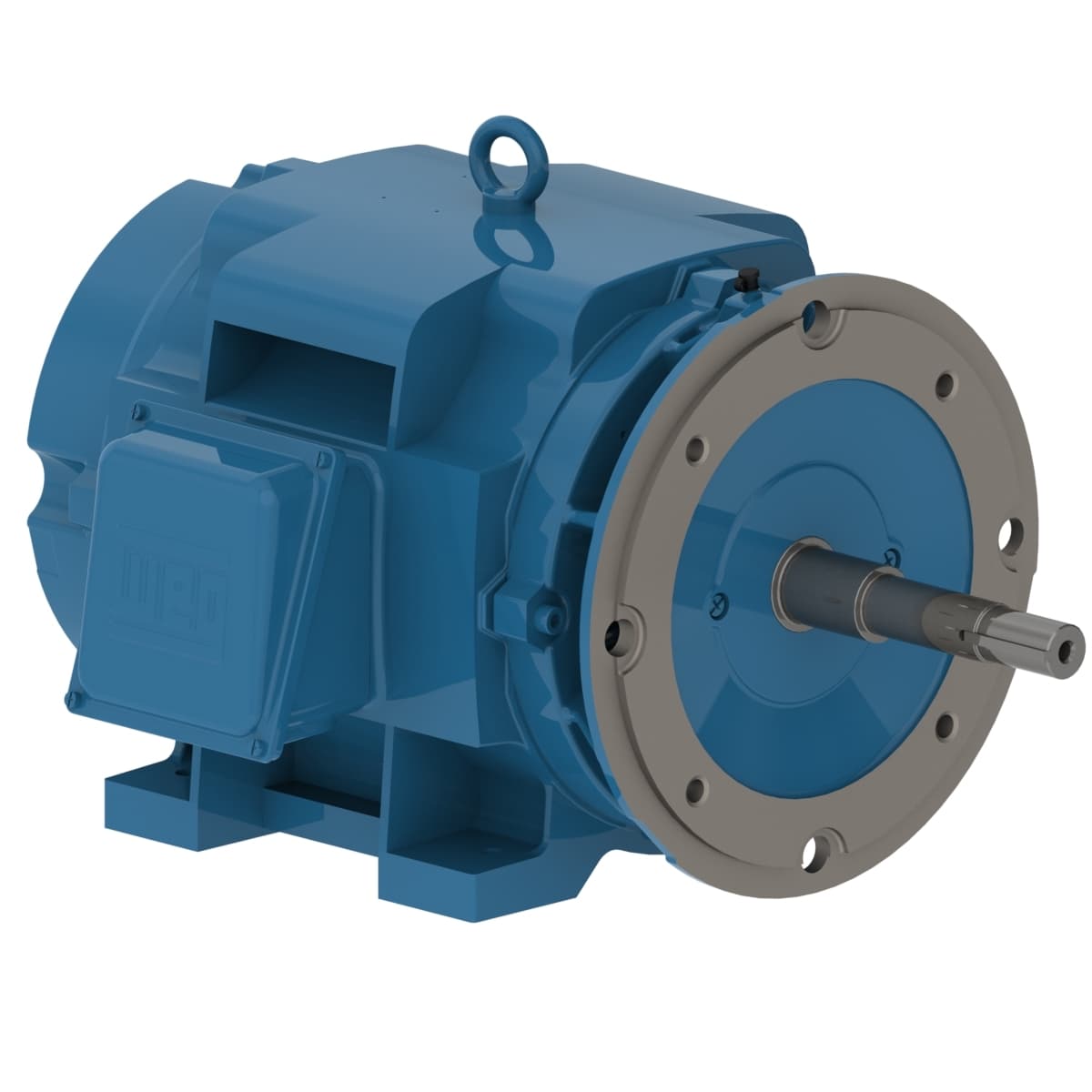

Close Coupled Pump High Efficiency 60 HP 2P 326JP 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 10566845 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 60 HP (45 kW)
- Rated speed 3555 rpm
- Rated current 141/70.6 A
- Insulation Class F
- Standard NEMA MG-1
- Slip 1.25 %
- Rated torque 88.6 ft.lb
- Frame 326JP
- Rated voltage 230/460 V
- LRC 6.0x(Code G)
- Approx. weight³ 511 lb
- No load current 40.0/20.0 A
- Ambient temperature -20°C to +40°C
- Noise level² 75.0 dB(A)
- Frequency 60 Hz
- Service factor 1.15
- Enclosure IC01 - ODP
- Number of poles 2
- L. R. Amperes 847/424 A
- Design B
- Altitude 1000 m.a.s.l.
- Flange C
- Number of Poles 2
- Breakdown torque 210 %
- Mounting F-1
- Synchronous speed 3600 rpm
- Locked rotor torque 220 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Locked rotor time 30s (cold) 17s (hot)
- Starting Method Direct On Line
- Terminal box¹ Left position
- Moment of inertia (J) 3.94 sq.ft.lb
- Degree of Protection IP23
- Output rating 60 HP
- Duty Cycle Cont.(S1)
- Voltage 230/460 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10566845 Specs
