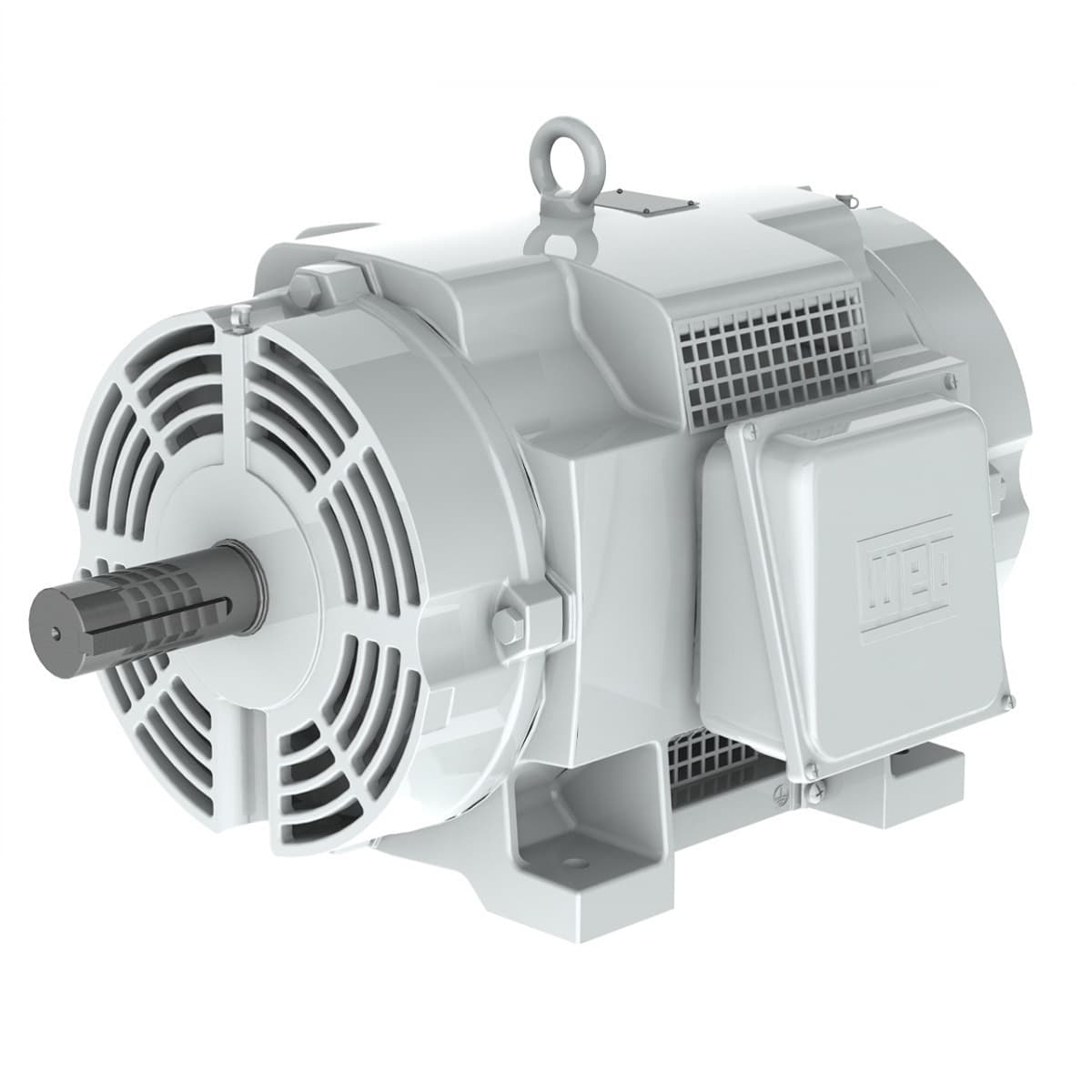

10562940 WEG AC Motors
Part#:10562940
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
ODP Standard Efficiency 50 HP 6P 404/5T 3Ph 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 10562940 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 208-230/460 V
- LRC 5.6x(Code F)
- Service factor 1.00
- Approx. weight³ 912 lb
- Design D
- Frame 404/5T
- Frequency 60 Hz
- Locked rotor time 54s (cold) 30s (hot)
- Ambient temperature -20°C to +40°C
- Mounting F-2
- Flange Without
- Number of poles 6
- Slip 6.25 %
- Rated torque 233 ft.lb
- Duty Cycle Cont.(S1)
- L. R. Amperes 764-691/346 A
- Insulation Class F
- Noise level² 68.0 dB(A)
- Locked rotor torque 280 %
- Rated speed 1125 rpm
- Degree of Protection IP23
- Voltage 208-230/460 V
- Moment of inertia (J) 26.2 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 50 HP
- Number of Poles 6
- No load current 48.7-44.0/22.0 A
- Synchronous speed 1200 rpm
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Right position
- Enclosure IC01 - ODP
- Output 50 HP (37 kW)
- Breakdown torque 0 %
- Rated current 136-123/61.7 A
- Temperature rise 80 K
- Starting Method Direct On Line
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
