07536OT3E364TSC-W40G WEG AC Motors
Part#:07536OT3E364TSC-W40G
Manufacturer:WEG
Alt. Part#:7909323907061
Product Lifecycle:Active
Get a quick Quote!

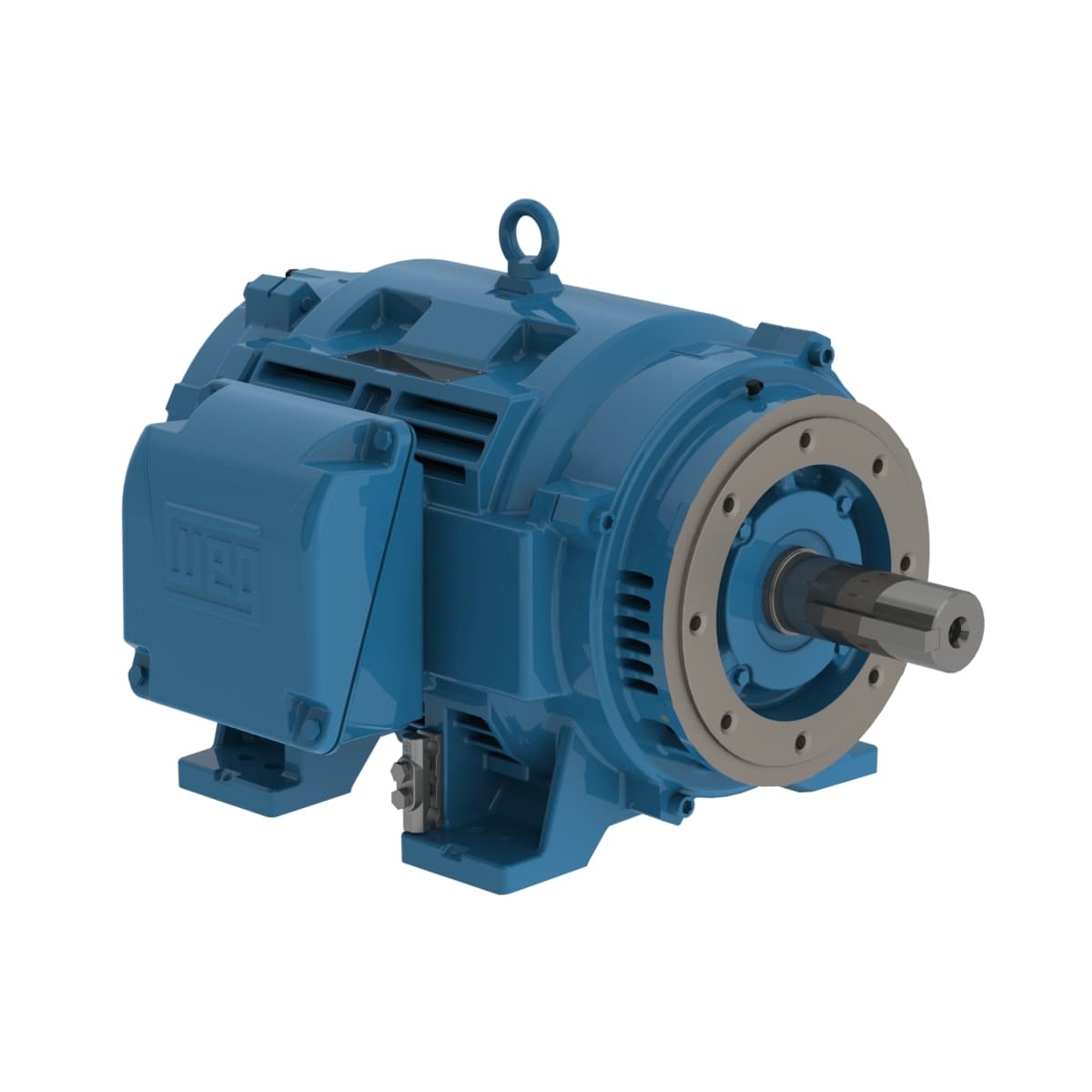

W40 NEMA Premium Efficiency 75 HP 2P 364/5TSC 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 07536OT3E364TSC-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 1.25 %
- No load current 43.0/21.5 A
- Temperature rise 80 K
- Noise level² 84.0 dB(A)
- Number of Poles 2
- Output 75 HP (55 kW)
- Rated torque 111 ft.lb
- Service factor 1.25
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 736 lb
- Terminal box¹ Left position
- Rated current 170/84.8 A
- Breakdown torque 250 %
- Mounting F-1
- Output rating 75 HP
- Frequency 60 Hz
- LRC 6.6x(Code G)
- Altitude 1000 m.a.s.l.
- Flange C
- Locked rotor time 34s (cold) 19s (hot)
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Rated voltage 230/460 V
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Degree of Protection IP23
- Frame 364/5TSC
- Moment of inertia (J) 6.40 sq.ft.lb
- Voltage 230/460//380 V
- Number of poles 2
- Rated speed 3555 rpm
- Design B
- Enclosure IC01 - ODP
- L. R. Amperes 1119/560 A
- Starting Method Direct On Line
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 07536OT3E364TSC-W40G Specs
1-year warranty
