07536ET3Y280S/M-W22 WEG AC Motors
Part#:07536ET3Y280S/M-W22
Manufacturer:WEG
Alt. Part#:7891327736405
Product Lifecycle:Active
Get a quick Quote!

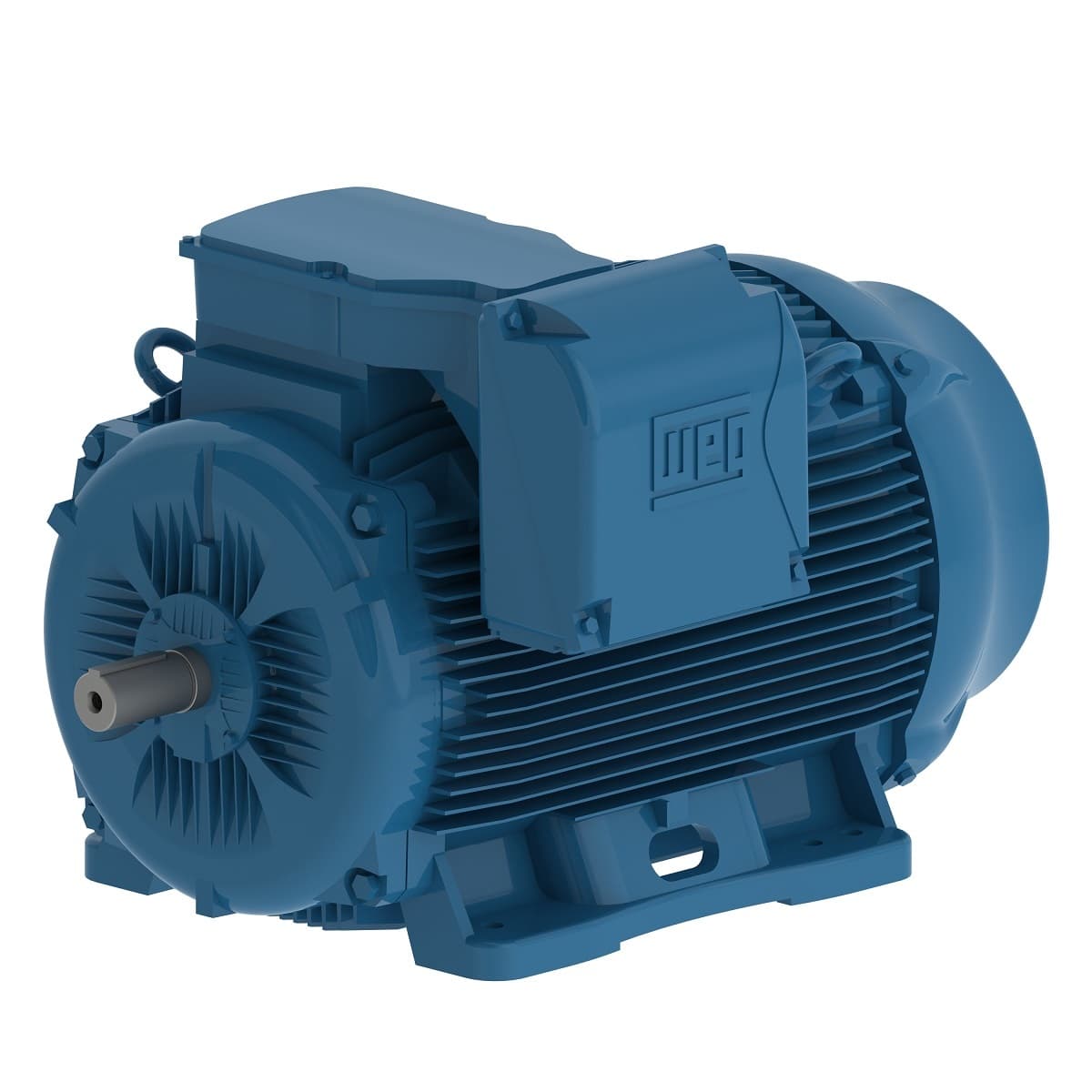

W22 Tru-Metric IE3 100 HP 2P 280S/M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 07536ET3Y280S/M-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed2970 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Slip 1.00 %
- Rated torque 177 ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Rated speed 2970 rpm
- LRC 7.4
- Starting Method Direct On Line
- Rated voltage 380 V
- Duty Cycle S1
- Degree of Protection IP55
- Voltage 460//380-415 V
- Number of Poles 2
- No load current 27.5 A
- Altitude 1000 m.a.s.l.
- Rated current 134 A
- Moment of inertia (J) 28.6 sq.ft.lb
- Number of poles 2
- Frame 280S/M
- Insulation Class F
- Mounting B3L(E)
- Rotation¹ Both (CW and CCW)
- Locked rotor torque 200 %
- Enclosure IC411 - TEFC
- Flange Without
- Frequency 50 Hz
- Breakdown torque 240 %
- Standard NEMA MG-1
- Output 100 HP (75 kW)
- Design N
- Temperature rise 80 K
- Approx. weight³ 1632 lb
- Output rating 100 HP
- L. R. Amperes 993 A
- Locked rotor time 57s (cold) 32s (hot)
- Noise level² 77.0 dB(A)
- Terminal box¹ Right position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
