07518ET3ECT365TF1-W2 WEG AC Motors
Part#:07518ET3ECT365TF1-W2
Manufacturer:WEG
Alt. Part#:7909492110309
Product Lifecycle:Active
Get a quick Quote!

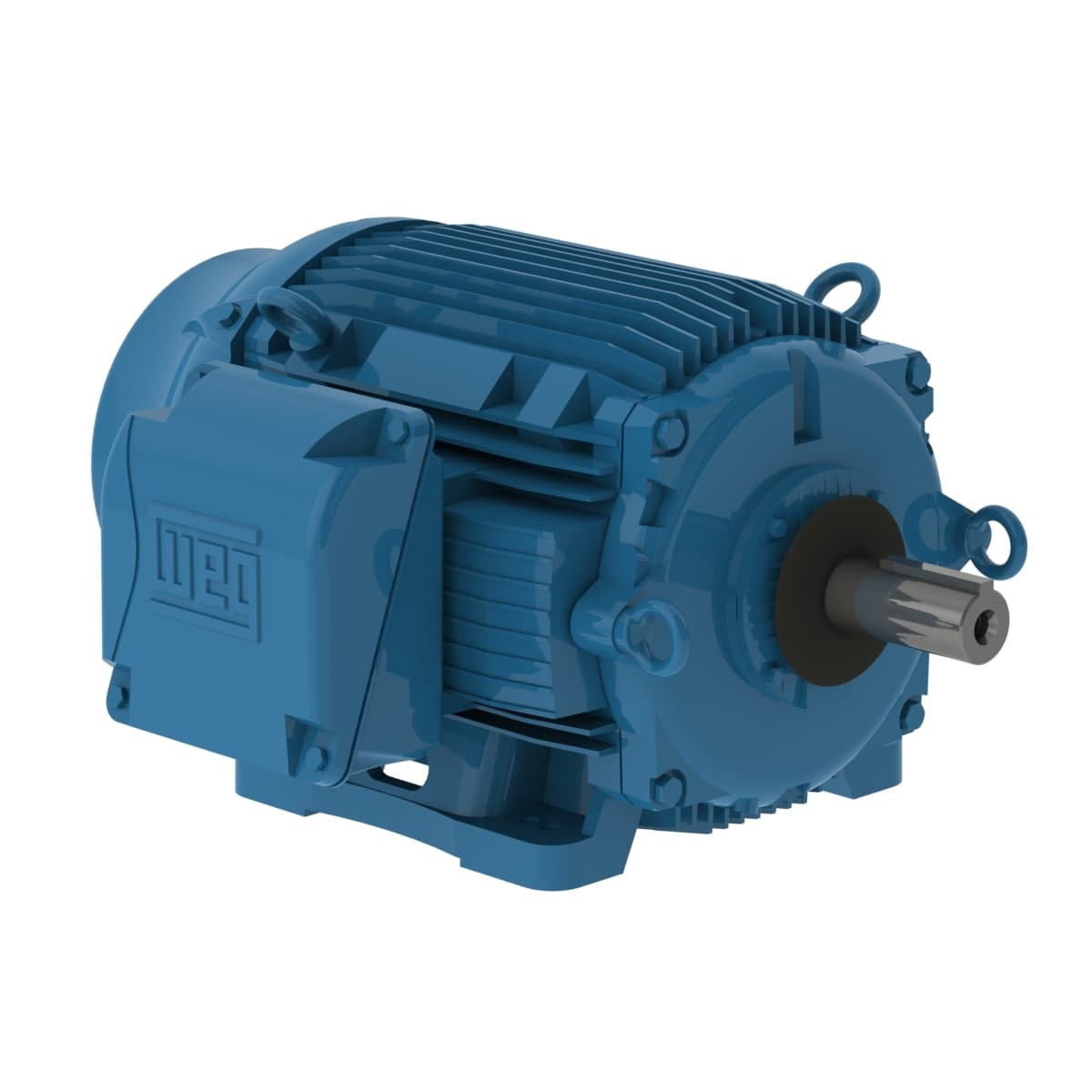

W22 Cooling Tower NEMA Premium Efficiency 75 HP 4P 364/5T 3Ph 230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 07518ET3ECT365TF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frequency 60 Hz
- Number of Poles 4
- Duty Cycle Cont.(S1)
- Service factor 1.25
- Flange Without
- Locked rotor torque 240 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Frame 364/5T
- Insulation Class F
- Noise level² 67.0 dB(A)
- Slip 1.11 %
- No load current 66.0/33.0 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Output 75 HP (55 kW)
- Moment of inertia (J) 23.3 sq.ft.lb
- Degree of Protection IP55
- Number of poles 4
- L. R. Amperes 1116/558 A
- Design B
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- LRC 6.4x(Code G)
- Starting Method Direct On Line
- Voltage 230/460 V
- Rated voltage 230/460 V
- Breakdown torque 260 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 919 lb
- Rated current 174/87.2 A
- Locked rotor time 25s (cold) 14s (hot)
- Enclosure IC411 - TEFC
- Output rating 75 HP
- Rated speed 1780 rpm
- Rated torque 221 ft.lb
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 07518ET3ECT365TF1-W2 Specs
