07512ST3HIE405T-W22 WEG AC Motors
Part#:07512ST3HIE405T-W22
Manufacturer:WEG
Alt. Part#:7891327246065
Product Lifecycle:Active
Get a quick Quote!

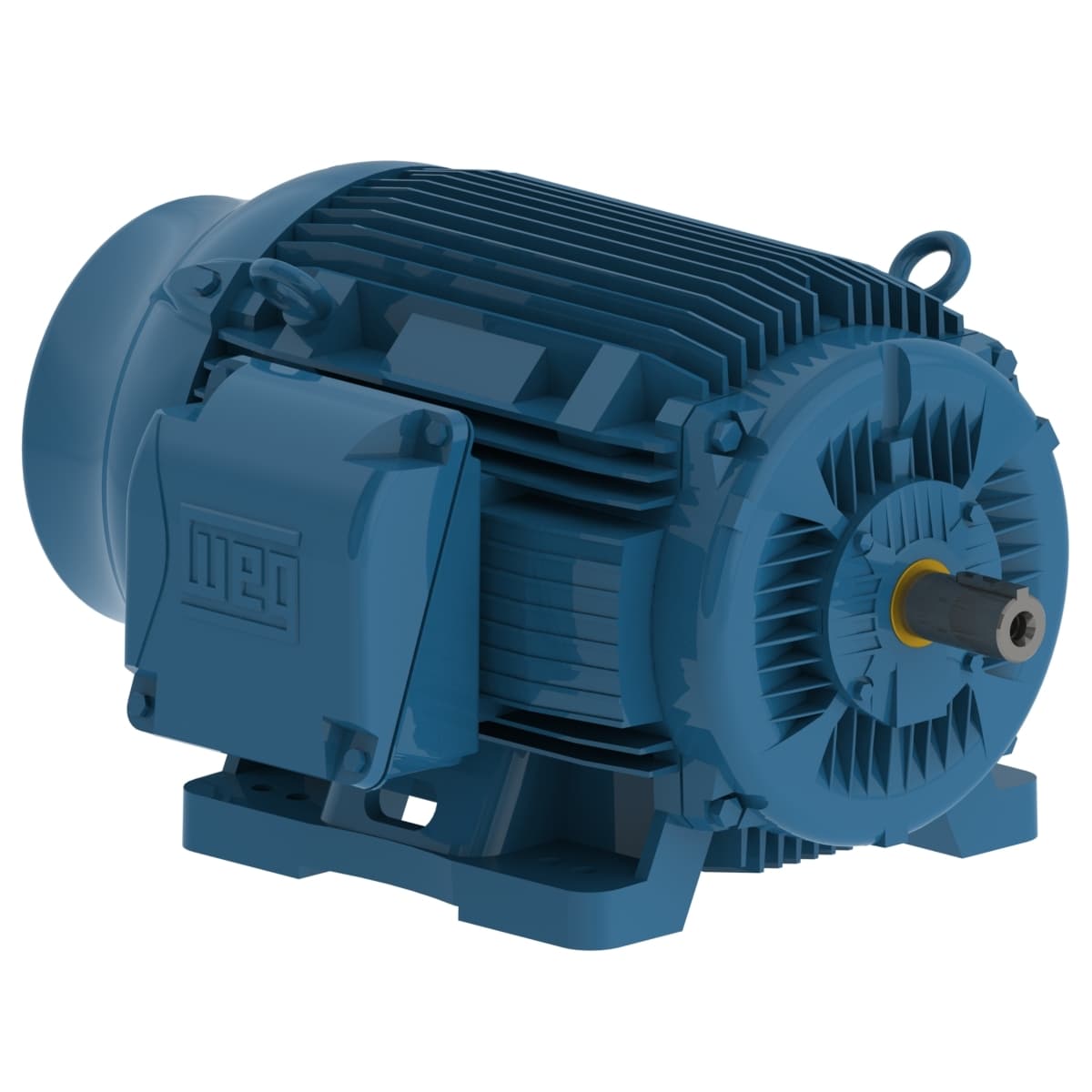

W22 IEEE 841 NEMA Premium Efficiency 75 HP 6P 404/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 07512ST3HIE405T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed1184 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Rated speed 1184 rpm
- LRC 6.4x(Code G)
- Degree of Protection IP56
- Terminal box¹ Left position
- Rated current 68.0 A
- Temperature rise 80 K
- Mounting F-1
- Slip 1.33 %
- Locked rotor torque 220 %
- Duty Cycle Cont.(S1)
- Number of poles 6
- Service factor 1.25
- Rated torque 333 ft.lb
- Enclosure IC411 - TEFC
- Rated voltage 575 V
- No load current 22.4 A
- Starting Method Direct On Line
- Output rating 75 HP
- Output 75 HP (55 kW)
- Locked rotor time 30s (cold) 17s (hot)
- Altitude 1000 m.a.s.l.
- Frequency 60 Hz
- Design B
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1200 rpm
- Number of Poles 6
- Breakdown torque 229 %
- Approx. weight³ 1184 lb
- Standard NEMA MG-1
- L. R. Amperes 435 A
- Insulation Class F
- Noise level² 68.0 dB(A)
- Flange Without
- Frame 404/5T
- Moment of inertia (J) 40.2 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 575 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 07512ST3HIE405T-W22 Specs
