06018OT3H364T-W40G WEG AC Motors
Part#:06018OT3H364T-W40G
Manufacturer:WEG
Alt. Part#:7909323906972
Product Lifecycle:Active
Get a quick Quote!

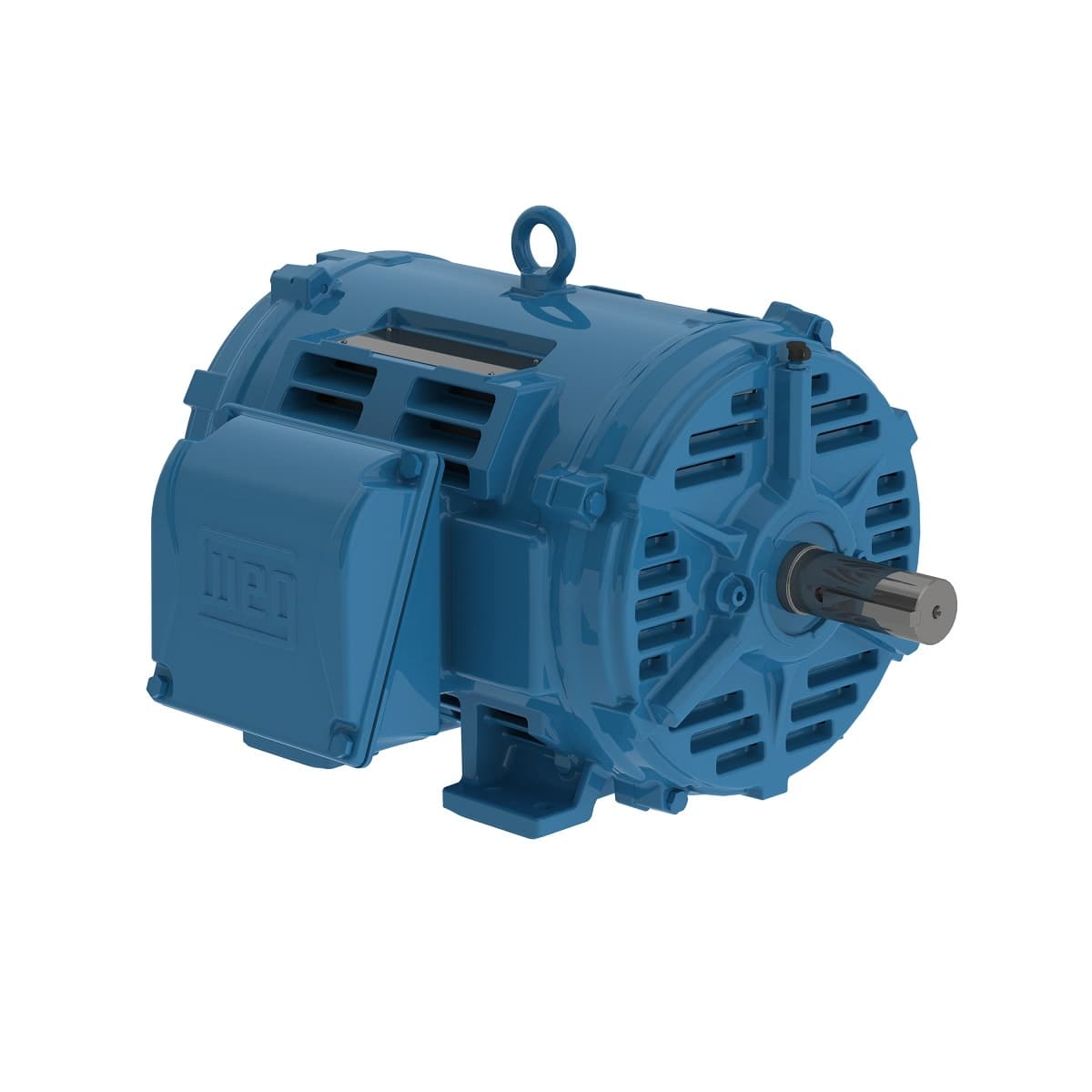

W40 NEMA Premium Efficiency 60 HP 4P 364/5T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 06018OT3H364T-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Rated voltage 575 V
- Moment of inertia (J) 15.6 sq.ft.lb
- Design B
- Synchronous speed 1800 rpm
- Output rating 60 HP
- Rated current 55.9 A
- Insulation Class F
- Frequency 60 Hz
- Output 60 HP (45 kW)
- Ambient temperature -20°C to +40°C
- Slip 1.11 %
- Locked rotor torque 200 %
- Rotation¹ Both (CW and CCW)
- Noise level² 69.0 dB(A)
- Flange Without
- Rated speed 1780 rpm
- Breakdown torque 240 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Terminal box¹ Left position
- Frame 364/5T
- LRC 6.5x(Code G)
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Number of Poles 4
- Locked rotor time 34s (cold) 19s (hot)
- Mounting F-1
- Number of poles 4
- L. R. Amperes 363 A
- Service factor 1.25
- Degree of Protection IP23
- Approx. weight³ 743 lb
- No load current 19.8 A
- Temperature rise 80 K
- Rated torque 177 ft.lb
- Starting Method Direct On Line
- Voltage 575 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06018OT3H364T-W40G Specs
