06012ET3ECT404T-W22 WEG AC Motors
Part#:06012ET3ECT404T-W22
Manufacturer:WEG
Alt. Part#:7909018364612
Product Lifecycle:Active
Get a quick Quote!

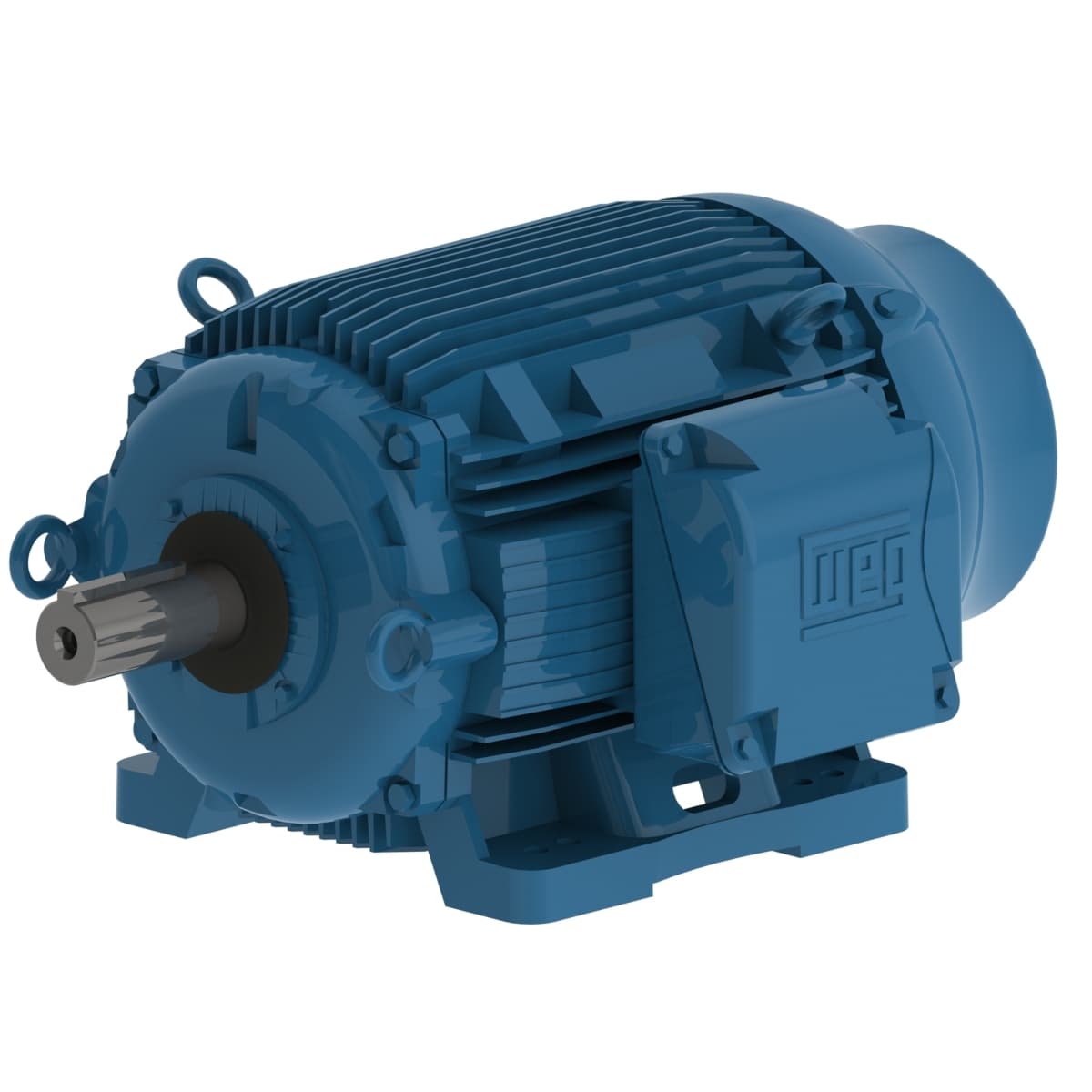

W22 Cooling Tower NEMA Premium Efficiency 60 HP 6P 404/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 06012ET3ECT404T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed1185 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated torque 266 ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Right position
- Rated current 139/69.5 A
- Insulation Class F
- Noise level² 68.0 dB(A)
- Breakdown torque 229 %
- Frame 404/5T
- Output 60 HP (45 kW)
- Ambient temperature -20°C to +40°C
- Number of Poles 6
- Locked rotor torque 200 %
- Starting Method Direct On Line
- LRC 7.1x(Code H)
- Design B
- Frequency 60 Hz
- Enclosure IC411 - TEFC
- L. R. Amperes 987/493 A
- Altitude 1000 m.a.s.l.
- Number of poles 6
- No load current 50.0/25.0 A
- Temperature rise 80 K
- Approx. weight³ 1159 lb
- Rated voltage 230/460 V
- Service factor 1.25
- Mounting F-2
- Slip 1.25 %
- Moment of inertia (J) 36.9 sq.ft.lb
- Degree of Protection IP55
- Rated speed 1185 rpm
- Locked rotor time 36s (cold) 20s (hot)
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Synchronous speed 1200 rpm
- Standard NEMA MG-1
- Flange Without
- Output rating 60 HP
