05036XT3E326TS WEG AC Motors
Part#:05036XT3E326TS
Manufacturer:WEG
Alt. Part#:7909492269182
Product Lifecycle:Active
Get a quick Quote!

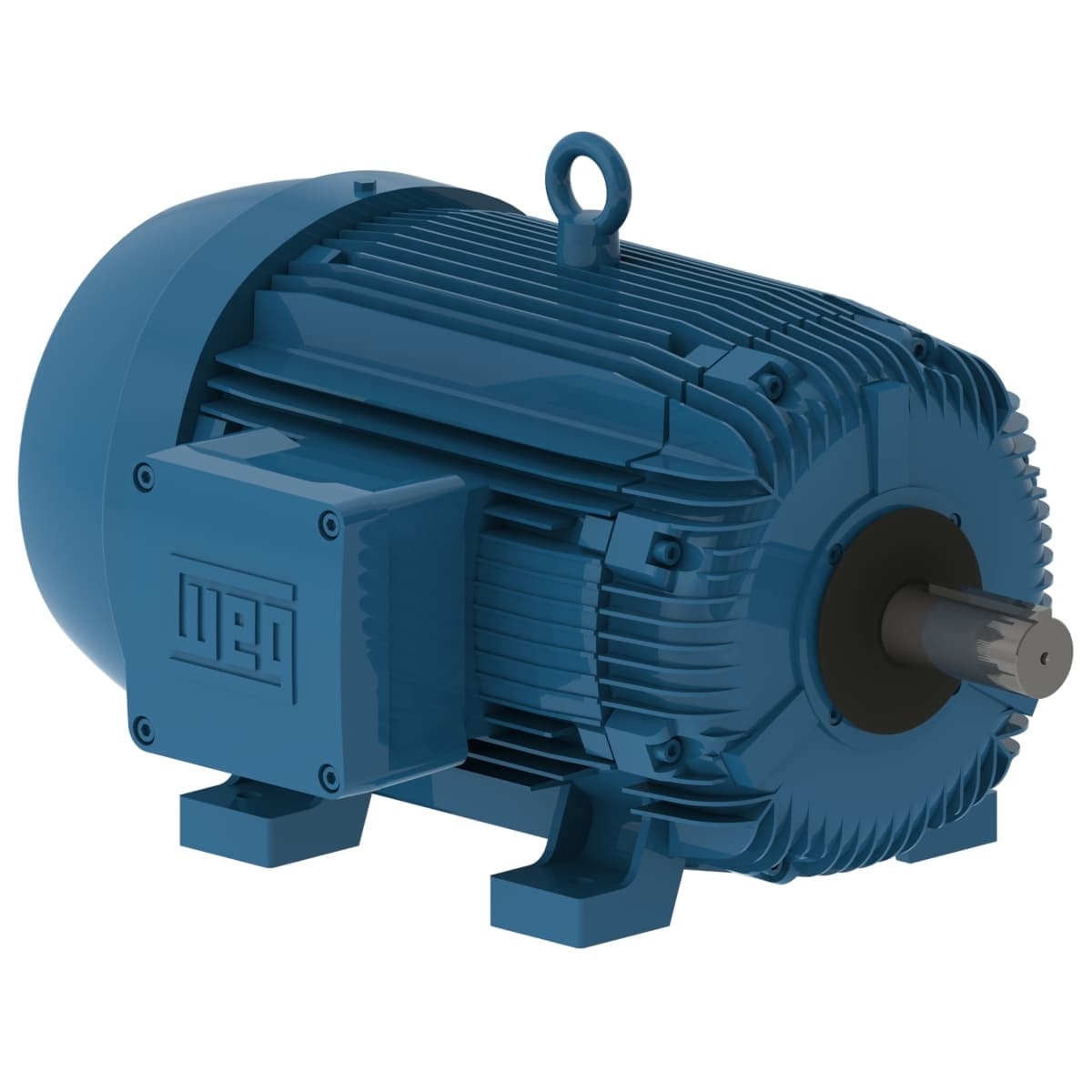

W21 Explosion-proof Motor NEMA Premium Efficiency 50 HP 2P 326TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 05036XT3E326TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- L. R. Amperes 799/400 A
- Slip 1.11 %
- Rated voltage 230/460 V
- Frequency 60 Hz
- Frame 326TS
- Rated torque 73.8 ft.lb
- Locked rotor time 59s (cold) 33s (hot)
- Breakdown torque 260 %
- No load current 29.5/14.8 A
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Noise level² 81.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 670 lb
- Standard NEMA MG-1
- Output rating 50 HP
- Rated speed 3560 rpm
- Output 50 HP (37 kW)
- Rated current 111/55.5 A
- Number of Poles 2
- LRC 7.2x(Code H)
- Moment of inertia (J) 5.42 sq.ft.lb
- Insulation Class F
- Locked rotor torque 260 %
- Service factor 1.15
- Temperature rise 80 K
- Degree of Protection IP55
- Duty Cycle Cont.(S1)
- Enclosure IC411 - TEFC
- Number of poles 2
- Voltage 230/460//380 V
- Synchronous speed 3600 rpm
- Design B
- Flange Without
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05036XT3E326TS Specs
