05036ST3HIE326TS-W22 WEG AC Motors
Part#:05036ST3HIE326TS-W22
Manufacturer:WEG
Alt. Part#:7891327137394
Product Lifecycle:Active
Get a quick Quote!

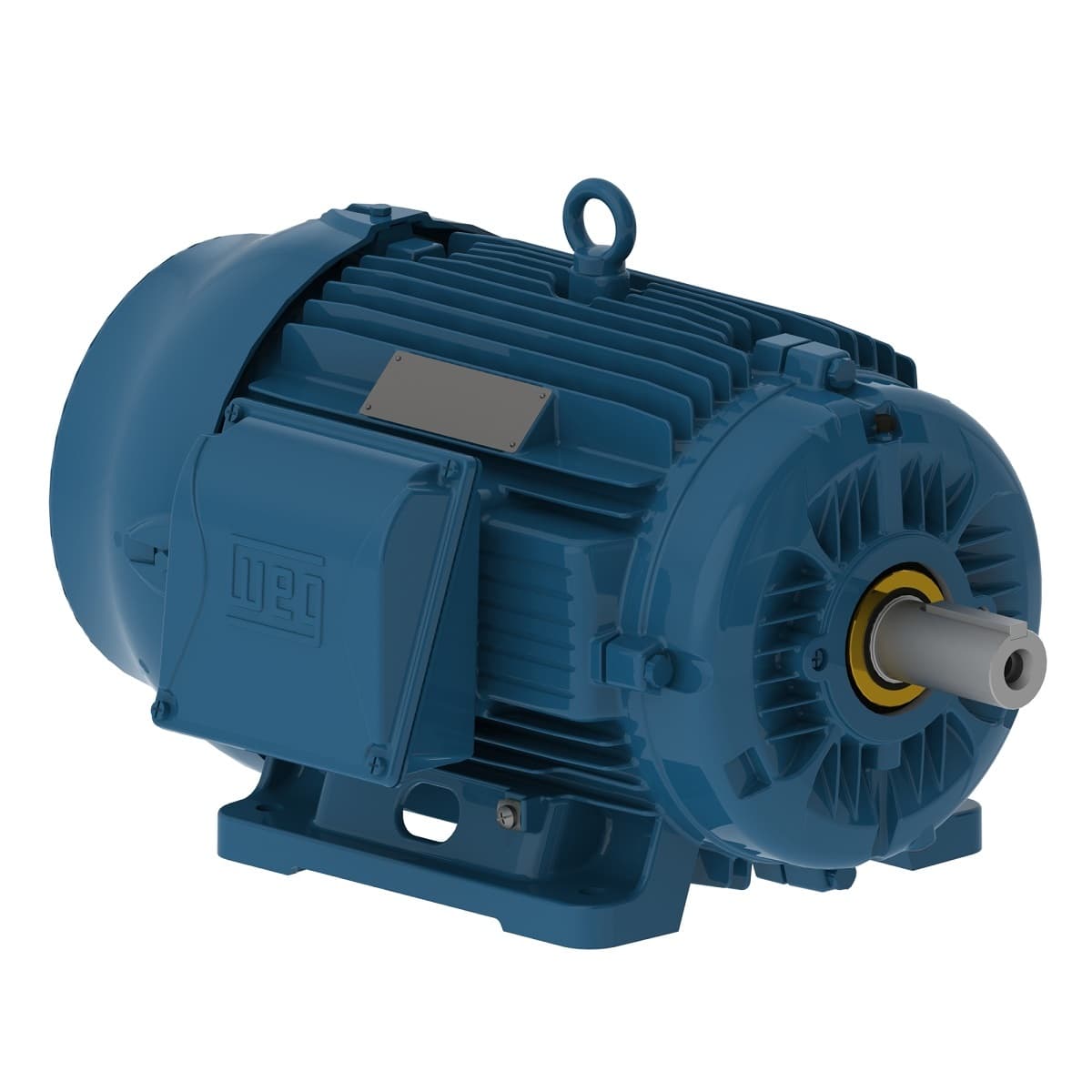

W22 IEEE 841 NEMA Premium Efficiency 50 HP 2P 324/6TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 05036ST3HIE326TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated speed 3555 rpm
- Locked rotor time 63s (cold) 35s (hot)
- Mounting F-1
- Frequency 60 Hz
- Breakdown torque 229 %
- Design B
- Degree of Protection IP56
- Number of Poles 2
- Insulation Class F
- Enclosure IC411 - TEFC
- Voltage 575 V
- Slip 1.25 %
- Service factor 1.25
- Standard NEMA MG-1
- Rated current 45.4 A
- Moment of inertia (J) 5.75 sq.ft.lb
- Noise level² 76.0 dB(A)
- Synchronous speed 3600 rpm
- Frame 324/6TS
- L. R. Amperes 286 A
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- LRC 6.3x(Code G)
- Duty Cycle Cont.(S1)
- Number of poles 2
- Rated voltage 575 V
- Rated torque 73.9 ft.lb
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 558 lb
- No load current 11.2 A
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Output rating 50 HP
- Output 50 HP (37 kW)
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05036ST3HIE326TS-W22 Specs
1-year warranty
