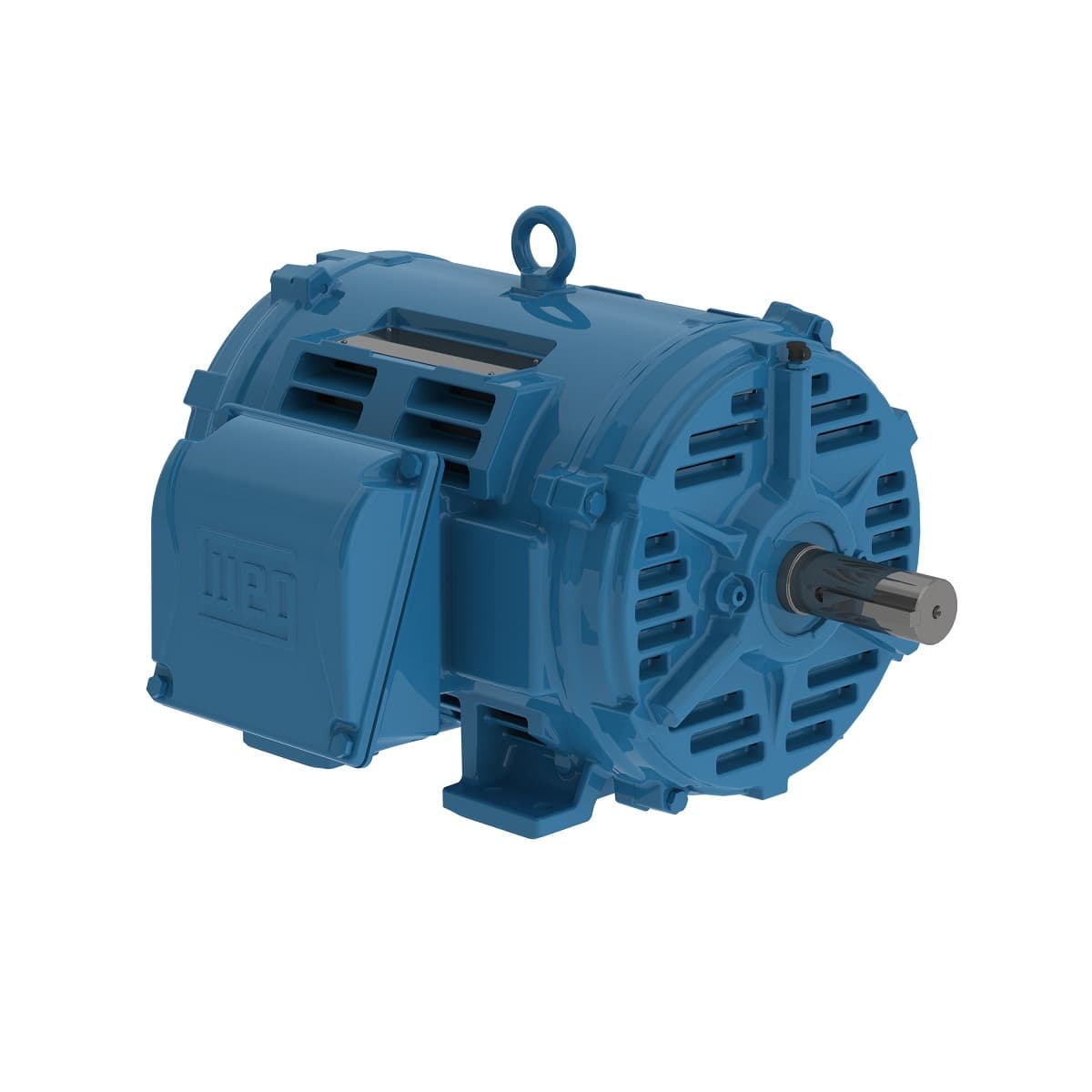

04018OT3H324T-W40G WEG AC Motors
Part#:04018OT3H324T-W40G
Manufacturer:WEG
Alt. Part#:7909492268024
Product Lifecycle:Active
Get a quick Quote!
W40 NEMA Premium Efficiency 40 HP 4P 324T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 04018OT3H324T-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Slip 1.39 %
- Rated torque 118 ft.lb
- Enclosure IC01 - ODP
- Number of poles 4
- Rated speed 1775 rpm
- No load current 14.8 A
- Noise level² 66.0 dB(A)
- Frequency 60 Hz
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Flange Without
- Output 40 HP (30 kW)
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Frame 324T
- Breakdown torque 240 %
- Altitude 1000 m.a.s.l.
- Output rating 40 HP
- LRC 6.2x(Code G)
- Locked rotor time 23s (cold) 13s (hot)
- Mounting F-1
- Rated voltage 575 V
- Design B
- Starting Method Direct On Line
- Approx. weight³ 446 lb
- Number of Poles 4
- Locked rotor torque 200 %
- Degree of Protection IP23
- Terminal box¹ Left position
- L. R. Amperes 236 A
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 38.1 A
- Service factor 1.25
- Moment of inertia (J) 5.69 sq.ft.lb
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 04018OT3H324T-W40G Specs
