04018OT3E324T-W40G WEG AC Motors
Part#:04018OT3E324T-W40G
Manufacturer:WEG
Alt. Part#:7909492267881
Product Lifecycle:Active
Get a quick Quote!

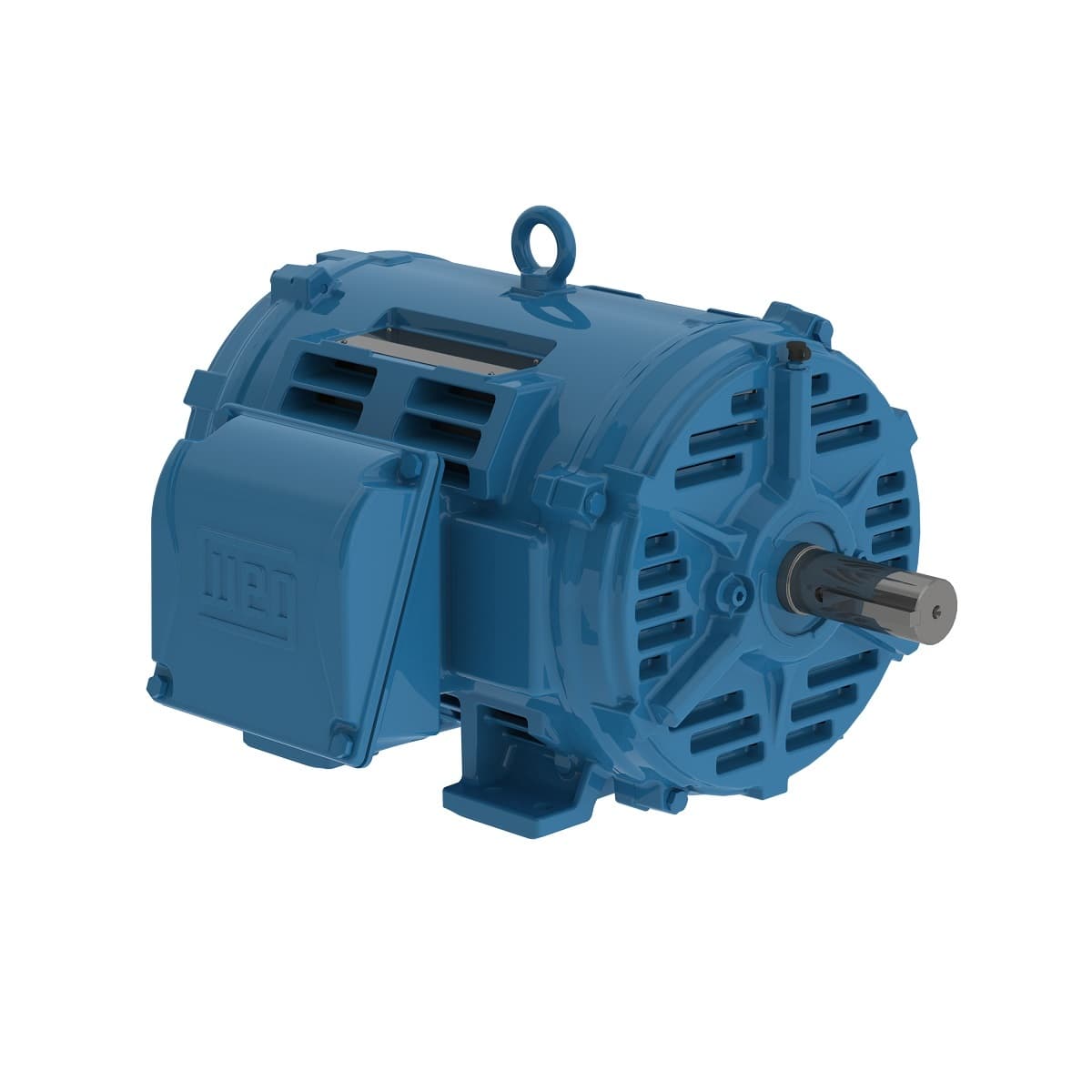

W40 NEMA Premium Efficiency 40 HP 4P 324T 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 04018OT3E324T-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- LRC 6.2x(Code G)
- Ambient temperature -20°C to +40°C
- Frame 324T
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- Insulation Class F
- Standard NEMA MG-1
- Rated speed 1775 rpm
- Locked rotor torque 200 %
- Temperature rise 80 K
- Degree of Protection IP23
- Number of poles 4
- Rated voltage 230/460 V
- Design B
- Enclosure IC01 - ODP
- Output 40 HP (30 kW)
- Locked rotor time 23s (cold) 13s (hot)
- Synchronous speed 1800 rpm
- Slip 1.39 %
- Breakdown torque 240 %
- Altitude 1000 m.a.s.l.
- Output rating 40 HP
- No load current 37.0/18.5 A
- L. R. Amperes 590/295 A
- Noise level² 66.0 dB(A)
- Terminal box¹ Left position
- Frequency 60 Hz
- Moment of inertia (J) 5.69 sq.ft.lb
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Rated current 95.2/47.6 A
- Rated torque 118 ft.lb
- Starting Method Direct On Line
- Mounting F-1
- Approx. weight³ 447 lb
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
