02536ST3QIE284TS-W22 WEG AC Motors
Part#:02536ST3QIE284TS-W22
Manufacturer:WEG
Alt. Part#:7899146770051
Product Lifecycle:Active
Get a quick Quote!

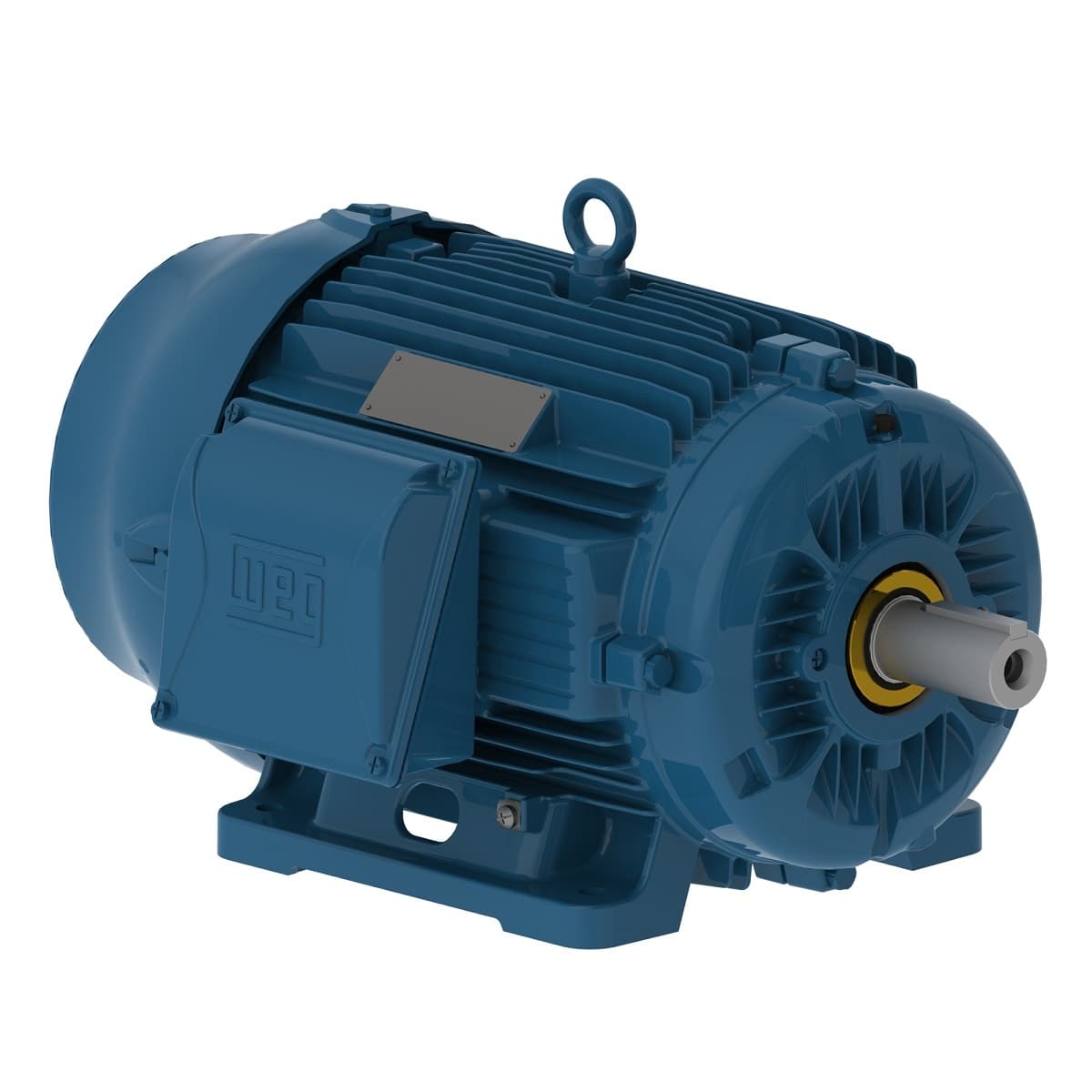

W22 IEEE 841 NEMA Premium Efficiency 25 HP 2P 284/6TS 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02536ST3QIE284TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Rated speed 3550 rpm
- Locked rotor torque 220 %
- Voltage 460 V
- Synchronous speed 3600 rpm
- LRC 6.2x(Code G)
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Flange Without
- Number of Poles 2
- Design B
- Standard NEMA MG-1
- Output 25 HP (18.5 kW)
- Locked rotor time 28s (cold) 16s (hot)
- Ambient temperature -20°C to +40°C
- Noise level² 72.0 dB(A)
- Rated voltage 460 V
- Moment of inertia (J) 2.69 sq.ft.lb
- No load current 8.20 A
- Terminal box¹ Left position
- Frequency 60 Hz
- Temperature rise 80 K
- Mounting F-1
- Frame 284/6TS
- Rated torque 37.0 ft.lb
- Degree of Protection IP56
- Slip 1.39 %
- Breakdown torque 260 %
- Starting Method Direct On Line
- Number of poles 2
- L. R. Amperes 180 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output rating 25 HP
- Rated current 29.1 A
- Service factor 1.25
- Enclosure IC411 - TEFC
- Approx. weight³ 392 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
