02536OP3EFP256TC-S WEG AC Motors
Part#:02536OP3EFP256TC-S
Manufacturer:WEG
Alt. Part#:7894171402021
Product Lifecycle:Active
Get a quick Quote!

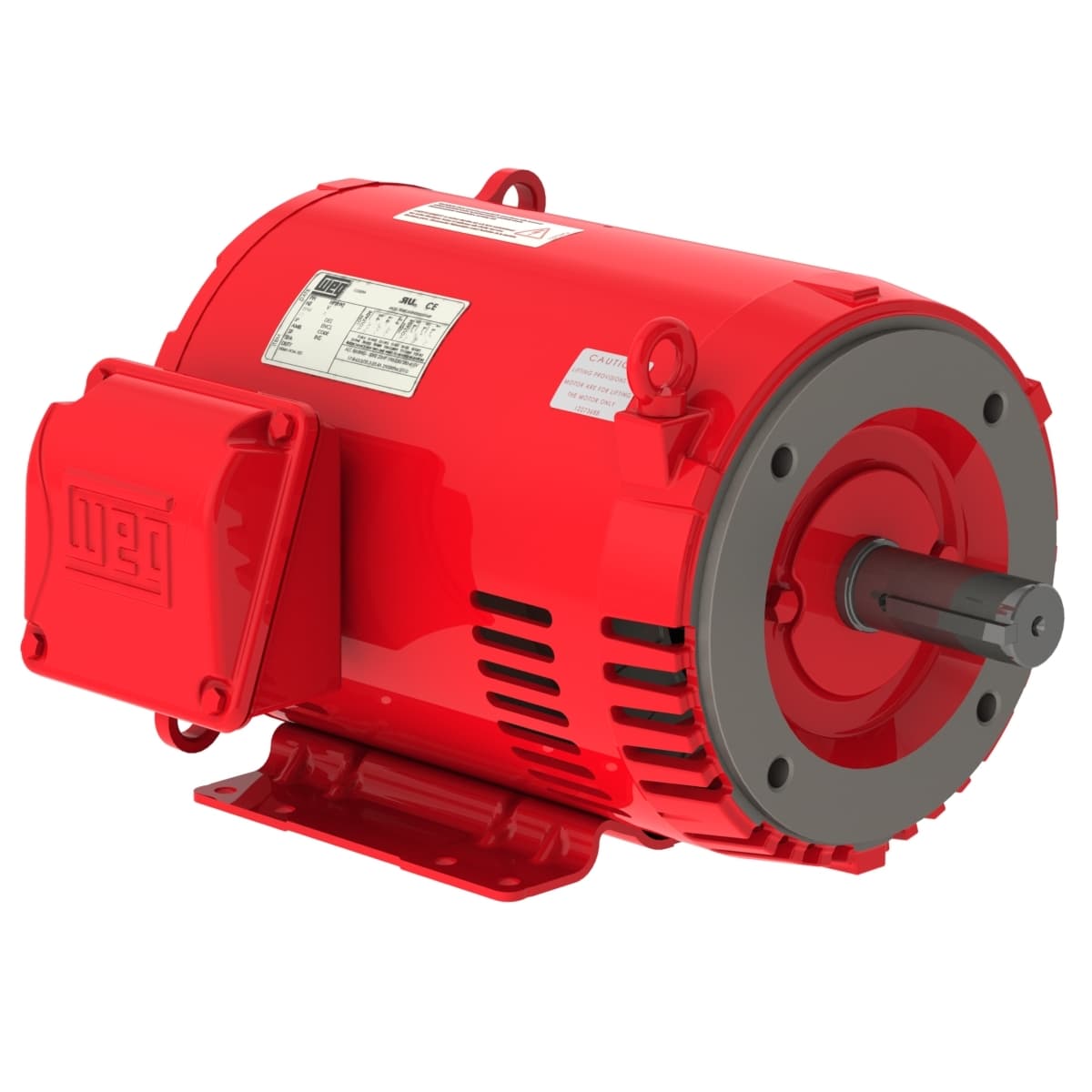

Rolled Steel High Efficiency 25 HP 2P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02536OP3EFP256TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Frequency 60 Hz
- Breakdown torque 280 %
- Starting Method Direct On Line
- Frame 254/6TC
- LRC 6.2x(Code G)
- Temperature rise 80 K
- Voltage 230/460//190-220/380-415 V
- Synchronous speed 3600 rpm
- Slip 1.94 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 188 lb
- Rated voltage 230/460 V
- Insulation Class F
- Standard NEMA MG-1
- Output 25 HP (18.5 kW)
- Rated torque 37.2 ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 25 HP
- No load current 22.4/11.2 A
- Locked rotor time 16s (cold) 9s (hot)
- Noise level² 70.0 dB(A)
- L. R. Amperes 360/180 A
- Service factor 1.15
- Mounting F-1
- Rated current 58.0/29.0 A
- Moment of inertia (J) 0.8718 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Number of poles 2
- Number of Poles 2
- Locked rotor torque 180 %
- Ambient temperature -20°C to +40°C
- Flange C
- Rated speed 3530 rpm
- Design B
- Enclosure IC01 - ODP
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
