00718ET3HCT213TF1-W2 WEG AC Motors
Part#:00718ET3HCT213TF1-W2
Manufacturer:WEG
Alt. Part#:7909018367903
Product Lifecycle:Active
Get a quick Quote!

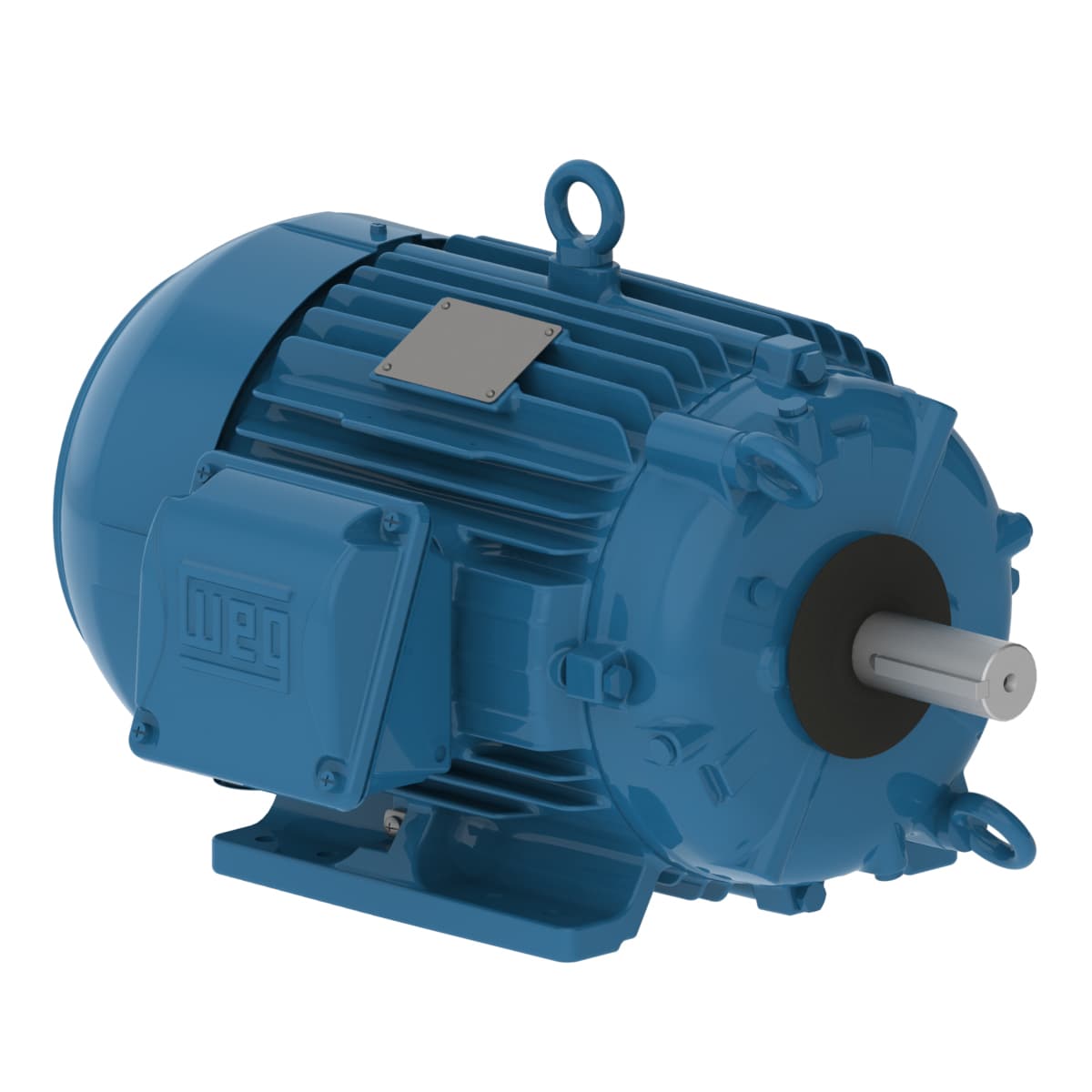

W22 Cooling Tower NEMA Premium Efficiency 7.5 HP 4P 213T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00718ET3HCT213TF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Rated speed 1765 rpm
- Design B
- Starting Method Direct On Line
- Voltage 575 V
- Frequency 60 Hz
- Service factor 1.25
- Mounting F-1
- Flange Without
- Rated current 7.34 A
- Rated torque 22.3 ft.lb
- Rotation¹ Both (CW and CCW)
- Output rating 7.5 HP
- L. R. Amperes 52.1 A
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Number of Poles 4
- Insulation Class F
- Enclosure IC411 - TEFC
- Number of poles 4
- Rated voltage 575 V
- Moment of inertia (J) 1.34 sq.ft.lb
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- LRC 7.1x(Code H)
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Slip 1.94 %
- Breakdown torque 310 %
- Approx. weight³ 162 lb
- Output 7.5 HP (5.5 kW)
- Locked rotor time 36s (cold) 20s (hot)
- Noise level² 58.0 dB(A)
- Frame 213T
- No load current 3.36 A
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00718ET3HCT213TF1-W2 Specs
1-year warranty
