00718ET3ECT213TF1-W2 WEG AC Motors
Part#:00718ET3ECT213TF1-W2
Manufacturer:WEG
Alt. Part#:7909018258294
Product Lifecycle:Active
Get a quick Quote!

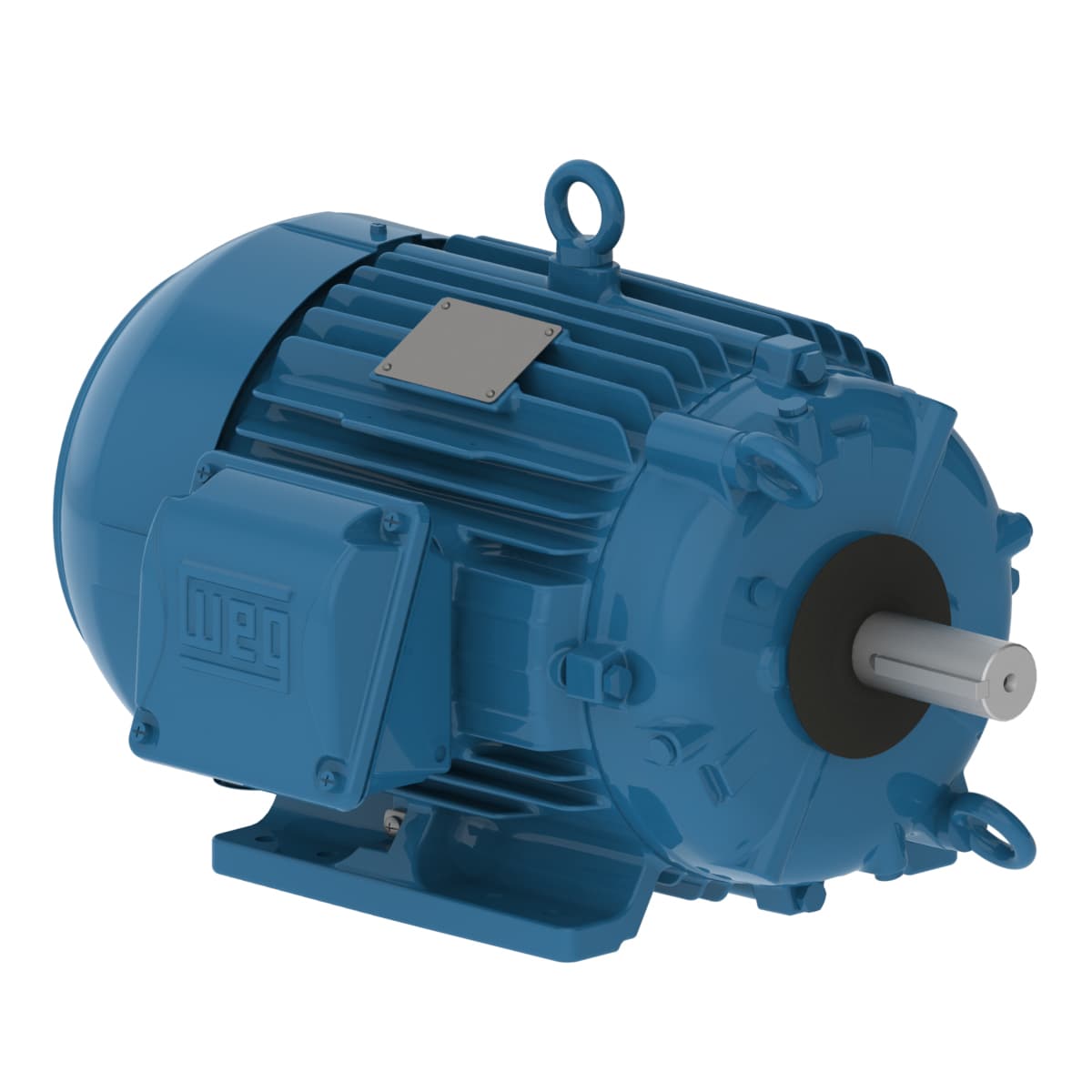

W22 Cooling Tower NEMA Premium Efficiency 7.5 HP 4P 213T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00718ET3ECT213TF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- L. R. Amperes 130/65.2 A
- Design B
- Mounting F-1
- Output rating 7.5 HP
- Rated current 18.4/9.18 A
- Rated torque 22.3 ft.lb
- Duty Cycle Cont.(S1)
- Output 7.5 HP (5.5 kW)
- Moment of inertia (J) 1.34 sq.ft.lb
- LRC 7.1x(Code H)
- Locked rotor time 36s (cold) 20s (hot)
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Service factor 1.25
- Noise level² 58.0 dB(A)
- Rated speed 1765 rpm
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Rated voltage 230/460 V
- No load current 8.40/4.20 A
- Number of Poles 4
- Locked rotor torque 220 %
- Enclosure IC411 - TEFC
- Slip 1.94 %
- Breakdown torque 310 %
- Flange Without
- Frame 213T
- Synchronous speed 1800 rpm
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Starting Method Direct On Line
- Standard NEMA MG-1
- Degree of Protection IP55
- Voltage 230/460//380 V
- Approx. weight³ 163 lb
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00718ET3ECT213TF1-W2 Specs
