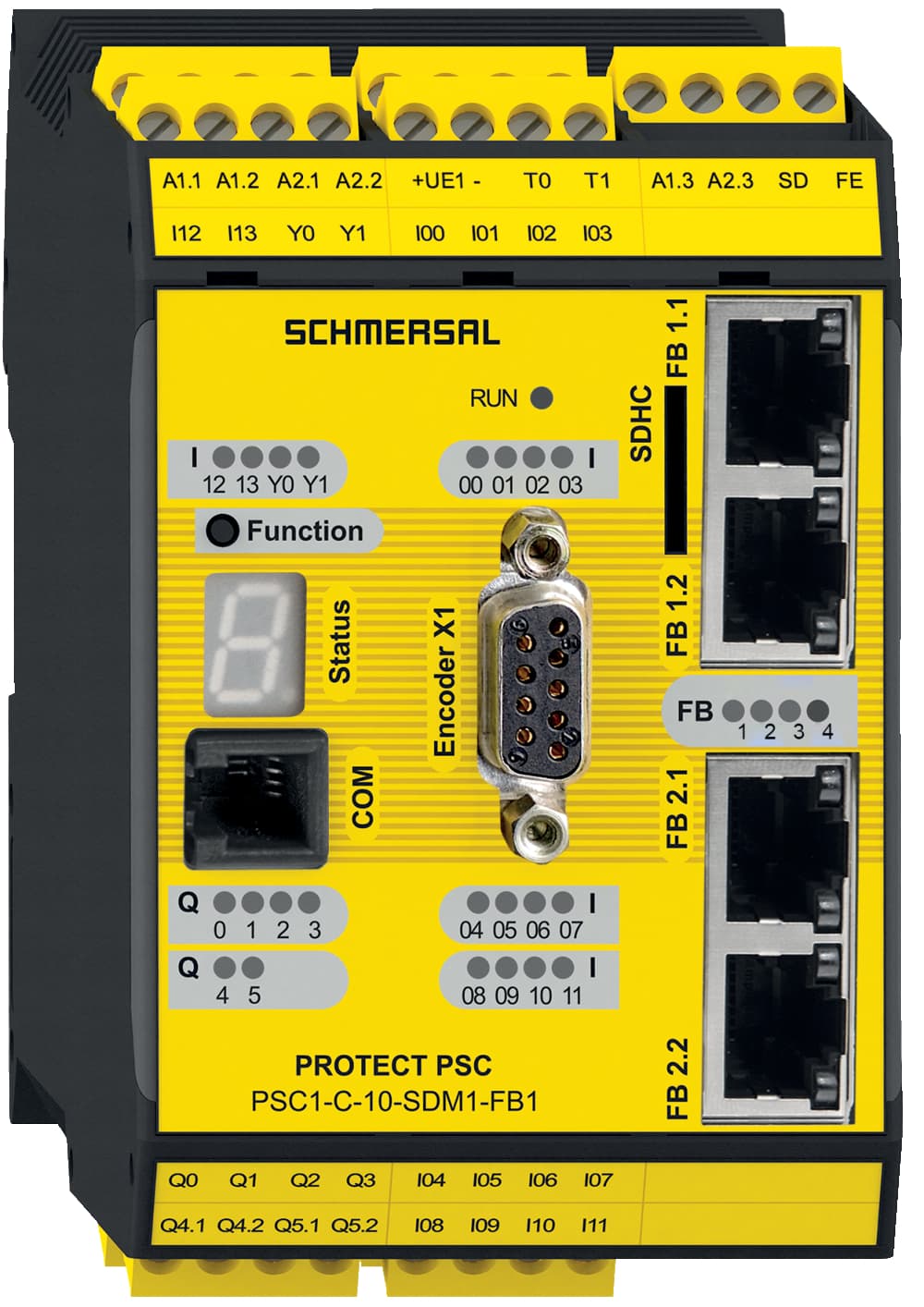

PSC1-C-10-SDM1-FB1-ECFS Schmersal Safety Controllers
Part#:PSC1-C-10-SDM1-FB1-ECFS
Manufacturer:Schmersal
Alt. Part#:103011991
Product Lifecycle:Active
Get a quick Quote!
PSC1-C-10-SDM1-FB1-ECFS Schmersal - Safety controllers; PROTECT PSC1; Memory card; Device in safety fieldbus networks; integrated SD-Bus-Gateway; Modular expansion with up to 64 inputs / outputs; 4 safe 2 A pp-switching semiconductor outputs, switchable to 2 safe p- / n-switching semiconduc
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Controllers that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the PSC1-C-10-SDM1-FB1-ECFS Schmersal price in the box on the right side or send a quick quote.
Product Details
- Master-Master-Kommunikation Yes
- Number of fail-safe digital outputs 4
- Wire cross-section, minimum 24 AWG
- Zulässige Aufstellhöhe über NN, maximum 2,000 m
- Field bus EtherCAT, EtherNet IP, PROFINET IO
- Interfering radiation DIN EN 61000-6-4
- Terminal (mechanical) Removable screw terminals
- Cable section, maximum 2.5 mm²
- Relative humidity, minimum 5 %
- Degree of pollution to IEC/EN 60664-1 2
- Current, Utilisation category AC-15 2 A
- EMC rating DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
- Gross weight 592.9 g
- Number of relay outputs (1-channel) 2
- Ambient temperature, maximum +50 °C
- Overvoltage category III
- Rated operating current (safety outputs) 2,000 mA
- Drive monitoring, encoder typ TTL, SINCOS, Proximity switch
- Number of digital fail-safe inputs 14
- Wire cross-section, maximum 12 AWG
- Depth 115 mm
- Relative humidity, maximum 85 %
- Voltage, Utilisation category AC15 230 VAC
- Current, Utilisation category DC13 2 A
- Integrated SD gateway Yes
- Height 100 mm
- Storage and transport temperature, minimum -25 °C
- Ambient temperature, minimum +0 °C
- Operating voltage, maximum 28.8 VDC
- Electromagnetic compatibility DIN EN 62061, DIN EN 61800-3
- Master-Slave-Kommunikation Yes
- Mounting can be clipped into standard rail
- Degree of protection IP20
- Operating voltage, minimum 20.4 VDC
- SD Card Slot Yes
- Anzahl der Erweiterungsbaugruppen, maximal 2
- Width 67.5 mm
- Storage and transport temperature, maximum +70 °C
- Designation, Communication interface RJ45
- Voltage, Utilisation category DC13 24 VDC
- Number of axis monitoring, max. 1
- Number of pulse outputs (test pulse output) 2
- Number of signalling outputs 2
- Cable section, minimum 0.2 mm²
- Note (Relative humidity) non-condensing
- Versions short-circuit proof, p-type (Q2 und Q3)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PSC1-C-10-SDM1-FB1-ECFS Description
PSC1-C-10-SDM1-FB1-ECFS Schmersal - Safety controllers; PROTECT PSC1; Memory card; Device in safety fieldbus networks; integrated SD-Bus-Gateway; Modular expansion with up to 64 inputs / outputs; 4 safe 2 A pp-switching semiconductor outputs, switchable to 2 safe p- / n-switching semiconduc
