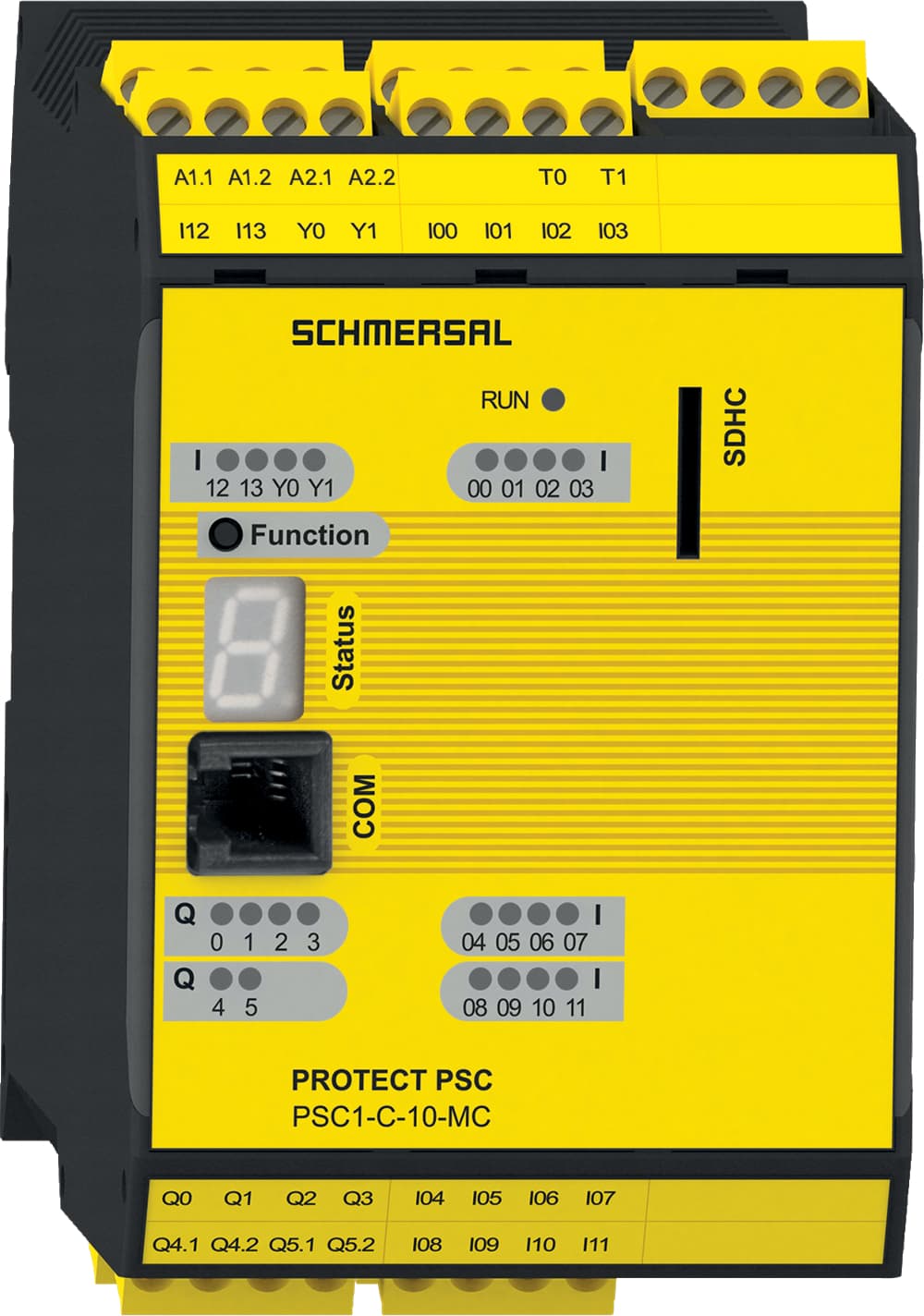

PSC1-C-10-MC Schmersal Electronic Components
Part#:PSC1-C-10-MC
Manufacturer:Schmersal
Alt. Part#:103008440
Product Lifecycle:Active
Get a quick Quote!
Safety controllers; PROTECT PSC1; Memory card; Modular expansion with up to 64 inputs / outputs; 4 safe 2 A pp-switching semiconductor outputs, switchable to 2 safe p- / n-switching semiconductor outputs; 14 safe inputs on the base module; 2 Signalling ou
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the PSC1-C-10-MC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Number of pulse outputs (test pulse output) 2
- Wire cross-section, minimum 24 AWG
- Ambient temperature, minimum +0 °C
- Rated operating current (safety outputs) 2,000 mA
- Versions short-circuit proof, p-type (Q2 und Q3)
- Terminal (mechanical) Removable screw terminals
- Wire cross-section, maximum 12 AWG
- Storage and transport temperature, minimum -25 °C
- Zulässige Aufstellhöhe über NN, maximum 2,000 m
- Number of digital fail-safe inputs 14
- Number of relay outputs (1-channel) 2
- Degree of protection IP20
- Operating voltage, minimum 20.4 VDC
- Electromagnetic compatibility DIN EN 62061, DIN EN 61800-3
- Number of fail-safe digital outputs 4
- Height 100 mm
- Note (Relative humidity) non-condensing
- Overvoltage category III
- Voltage, Utilisation category DC13 24 VDC
- Number of signalling outputs 2
- Mounting can be clipped into standard rail
- Cable section, minimum 0.2 mm²
- Width 67.5 mm
- Depth 115 mm
- Relative humidity, maximum 85 %
- Relative humidity, minimum 5 %
- Voltage, Utilisation category AC15 230 VAC
- Current, Utilisation category AC-15 2 A
- Interfering radiation DIN EN 61000-6-4
- SD Card Slot Yes
- Anzahl der Erweiterungsbaugruppen, maximal 2
- Gross weight 560 g
- Cable section, maximum 2.5 mm²
- Ambient temperature, maximum +50 °C
- Storage and transport temperature, maximum +70 °C
- Degree of pollution to IEC/EN 60664-1 2
- Operating voltage, maximum 28.8 VDC
- Current, Utilisation category DC13 2 A
- EMC rating DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents PSC1-C-10-MC Specs
