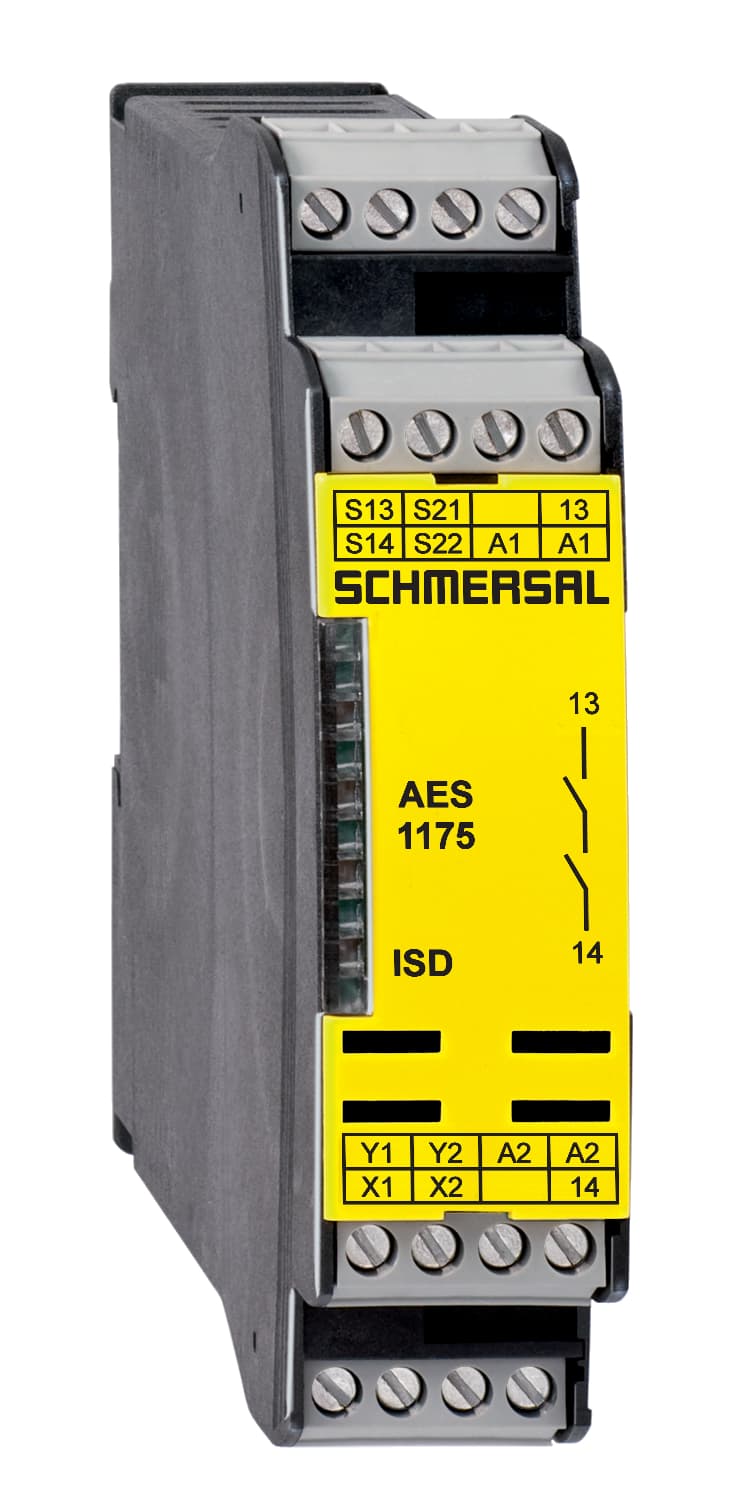

AES 1175 Schmersal Electronic Components

Product Details

• Stop-Category
  0
• Number of shutters
  1
• Terminal designations
  IEC/EN 60947-1
• Height
  100 mm
• Gross weight
  155 g
• Earth connection detection
  Yes
• Mechanical life, minimum
  20,000,000 Operations
• Depth
  121 mm
• Resistance to vibrations to EN 60068-2-6
  10...55 Hz, Amplitude 0.35 mm, ± 15 %
• Rated AC voltage for controls, 60 Hz, minimum
  20.4 VAC
• Pull-in delay at automatic start, maximum, typically
  100 ms
• Current, Utilisation category DC13
  6 A
• Conduction resistance, maximum
  40 Ω
• Short-circuit recognition
  Yes
• Automatic reset function
  Yes
• Mounting
  Snaps onto standard DIN rail to EN 60715
• Tightening torque of Clips
  0.6 Nm
• Storage and transport temperature, minimum
  -25 °C
• Rated control voltage at AC 50 Hz, maximum
  26.4 VAC
• Electrical power consumption
  5 W
Voltage, Utilisation category DC13
24 VDC
Wire breakage detection
Yes
Feedback circuit
Yes
Integral System Diagnostics, status
Yes
Terminal Connector
Screw connection, rigid or flexible
Number of openers
1
Ambient temperature, minimum
+0 °C
Degree of protection of clips or terminals
IP20
Rated impulse withstand voltage Uimp
4 kV
Rated AC voltage for controls, 50 Hz, minimum
20.4 VAC
Rated control voltage at AC 60 Hz, maximum
26.4 VAC
Drop-out delay in case of power failure, typically
80 ms
Switching capacity, minimum
10 VDC
Climatic stress
EN 60068-2-3, BG-GS-ET-14
Material of the contacts, electrical
Ag-Ni 10 and 0.2 µm gold-plated
Reset after disconnection of supply voltage
Yes
Number of safety contacts
1
Cable section, maximum
2.5 mm²
Degree of protection of the enclosure
IP40
Restistance to shock
30 g / 11 ms
Frequency range
50 Hz, 60 Hz
Thermal test current
6 A
Rated AC voltage for controls at DC minimum
20.4 VDC
Note (Contact resistance)
in new state
Pull-in delay at RESET, typically
20 ms
Input signal, HIGH Signal 1
10 … 30 VDC
EMC rating
EMC-Directive
Current, Utilisation category DC12
0.1 A
Enclosure material
Glass-fibre reinforced thermoplastic, ventilated
Storage and transport temperature, maximum
+70 °C
Degree of pollution to IEC/EN 60664-1
2
Contact resistance, maximum
0.1 Ω
Current, Utilisation category AC-15
6 A
Voltage, Utilisation category DC12
24 VDC
Standards
IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
Number of LEDs
1
Width
22.5 mm
Ambient temperature, maximum
+55 °C
Rated operating voltage
24 VAC -15% / +10%, 24 VDC -10%/+20%, residual ripple max. 10%
Drop-out delay in case of emergency, typically
20 ms
Switching capacity, maximum
2 A
Cable section, minimum
0.25 mm²
Degree of protection of the mounting space
IP54
Overvoltage category
III
Rated control voltage at DC, maximum
28.8 VDC
Voltage, Utilisation category AC15
230 VAC
Input signal, LOW Signal 0
0 … 2 VDC
